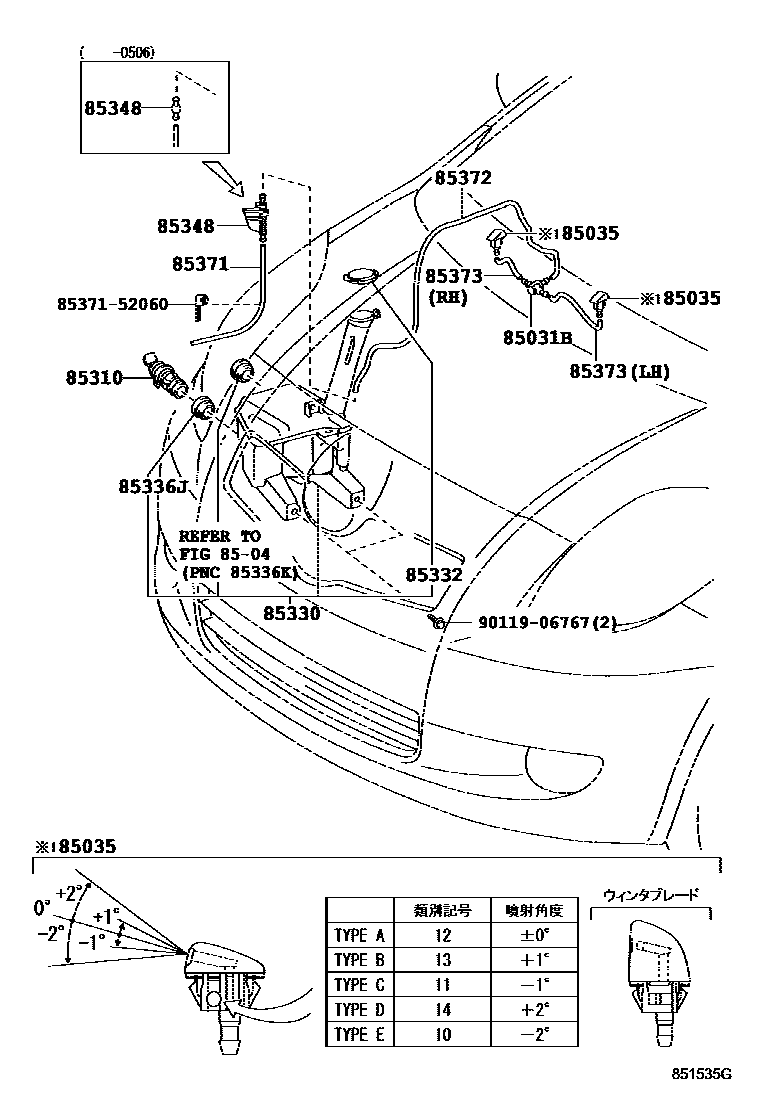

Toyota VITZ — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080iKSP90,NCP9#,SCP90200708-200809

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iKSP90,NCP9#,SCP90200501-200708

main85381-52280×2iKSP90,NCP9#,SCP90200501-200708

main85381-52290×2iKSP90,NCP9#,SCP90200501-200708

main85381-52300×2iKSP90,NCP9#,SCP90200501-200708

main85381-52310×2iKSP90,NCP9#,SCP90200501-200708

main85381-52320×2supersedes 85381-52310iKSP90,NCP9#,SCP90200811-201012

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

85330JAR ASSY, WINDSHIELD WASHER

main85315-52170supersedes 85315-52160iKSP90..B,F200708-200808

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iKSP90,NCP9#,SCP90200501-200708

85336JPROTECTOR, WASHER JAR

main85336-60300iKSP90,NCP9#,SCP90200501-200708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKSP90,NCP9#,SCP90200501-200506

main85385-52361iKSP90,NCP9#,SCP90200808-201012

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33205

main90099-33222

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKSP90,NCP9#,SCP90200501-200506

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKSP90,NCP9#,SCP90200501-200708

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section
