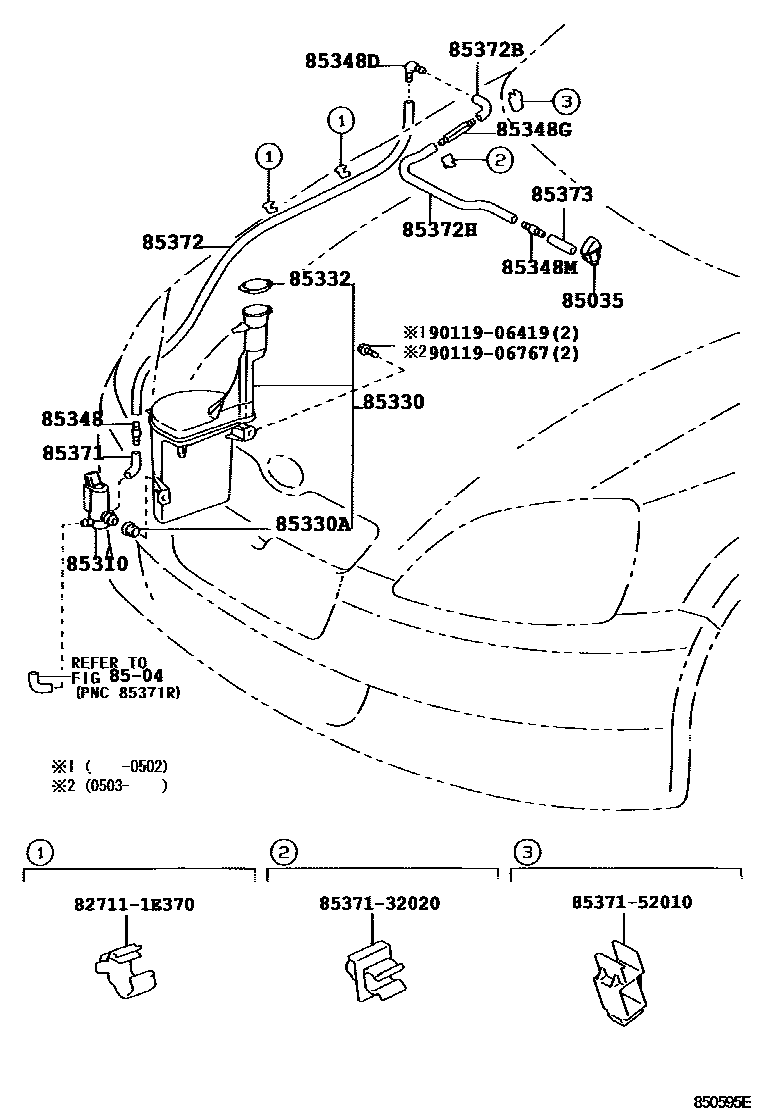

Toyota VITZ — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52210iNCP1#,SCP10200112-200212

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iSCP10..B199901-199908

main85330-10290iNCP10,15,SCP10..B,CLA,F,U200112-200212

main85330-52010iSCP10..B200112-200212

85330JAR ASSY, WINDSHIELD WASHER

main85315-52010iNCP1#,SCP1#200212

main85315-52030iNCP1#,SCP10200112-200212

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP1#,SCP10199901-200112

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iNCP1#,SCP10200112-200212

main85316-42011iNCP1#,SCP10200112-200212

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iNCP1#,SCP10199901-200112

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iNCP1#,SCP10199901-200112

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150iNCP1#,SCP10199901-200112

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNCP1#,SCP10199901-200112

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP1#,SCP10199901-200112

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNCP1#,SCP10199901-200112

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP1#,SCP10199901-200112

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNCP1#,SCP10199901-200112

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP1#,SCP10199901-200112

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52010

9011906419

main90119-06419

9011906767

main90119-06767

20 parts on this diagram · 1 diagram in section
