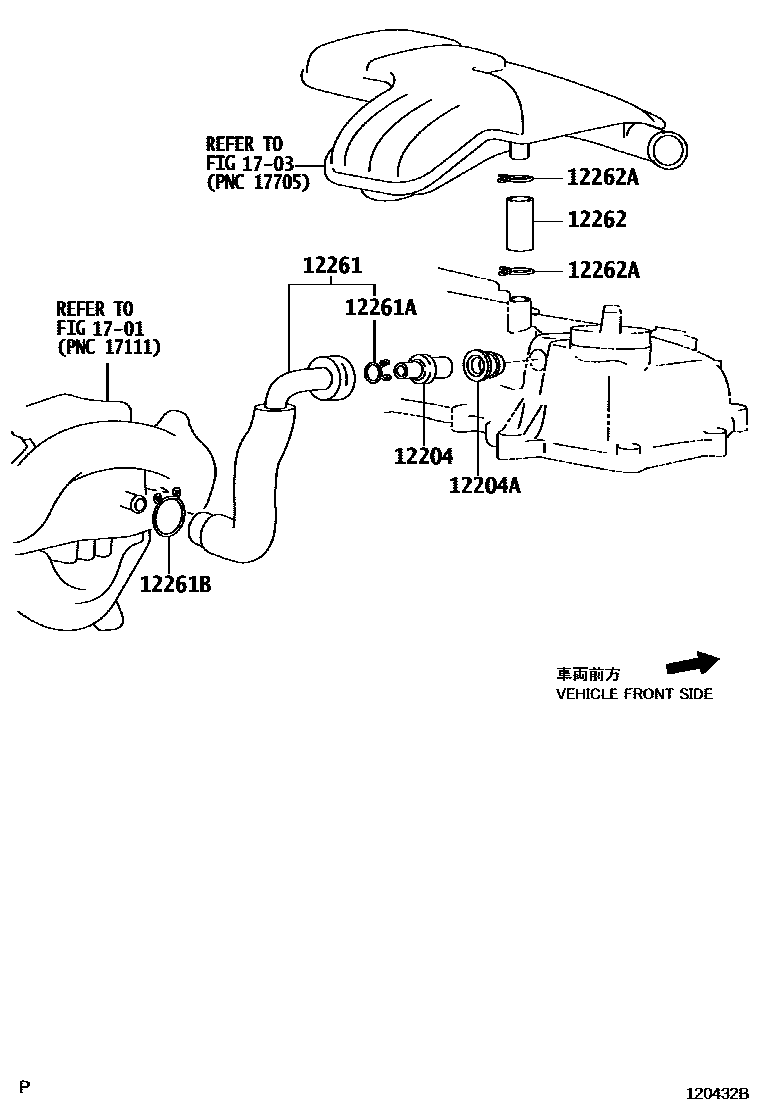

Toyota VITZ — VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-21011i2NZFE..NCP95200501-200806

main12204-21012i2NZFE..NCP95200806-201012

sub12204-21013

main12204-21020i1NZFE..NCP91200501-201012

main12204-23020i2SZFE..SCP90..RS200501-201012

main12204-40030i1KRFE..KSP90200501-201012

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-12019i2SZFE..SCP90..RS200601-201012

main90480-18001i2SZFE..SCP90200501-200601

main90480-18014i1KRFE..KSP90200501-201012

12261HOSE, VENTILATION

main12261-21030i2NZFE..NCP95200501-201012

main12261-21060i1NZFE..NCP91..ILL,U200501-201012

main12261-23040i2SZFE..SCP90200501-201012

main12261-40020i1KRFE..KSP90200501-201012

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i1NZFE,2NZFE..NCP9#200908-201012

main90467-14001i2SZFE..SCP90..F,ILL,U200501-201012

main90467-15120i1NZFE,2NZFE..NCP9#200501-201012

main90467-18003i2SZFE..SCP90200501-201012

main90467-24038i1NZFE,2NZFE..NCP9#..F,ILL,U200501-200908

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main96137-52501i1KRFE..KSP90200501-201012

12262HOSE, VENTILATION, NO.2

main12262-21080i2NZFE..NCP95200501-200508

main12262-21090i1NZFE..NCP91200501-200508

main12262-40020i1KRFE..KSP90200501-201012

main90910-05227i2SZFE..SCP90..F,ILL,U200501-201012

sub90910-05224

12262ACLIP(FOR VENTILATION HOSE NO.2)

main16581-21050i1NZFE,2NZFE..NCP9#200501-200508

main90467-21152i1NZFE..NCP91..RS200508-201012

main90467-23002i1KRFE..KSP90200501-201012
