Toyota VITZ — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

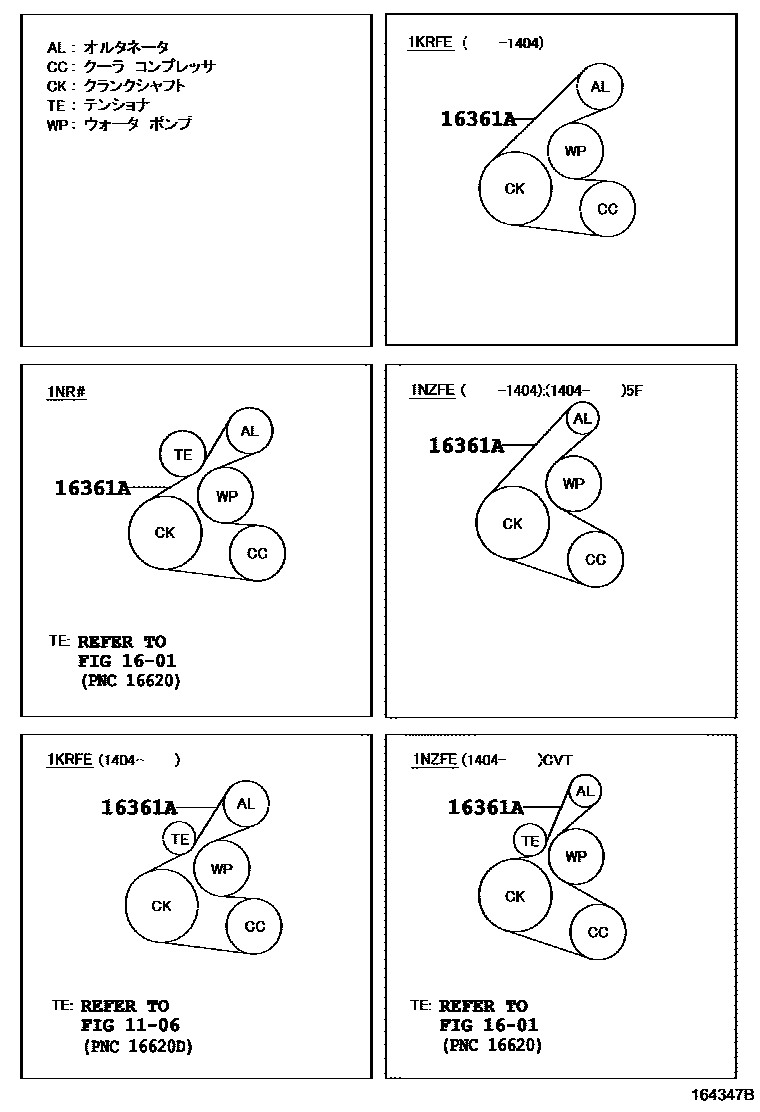

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02556i201012-201202

main90916-02705i201709

main90916-02713i201404-201701

main90916-02726i201701

main90916-02696supersedes 90916-02694i201701

main90916-02723supersedes 90916-02766i201404-201701

main90916-02767supersedes 90916-02766i201809

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota VITZ

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota VITZ. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
