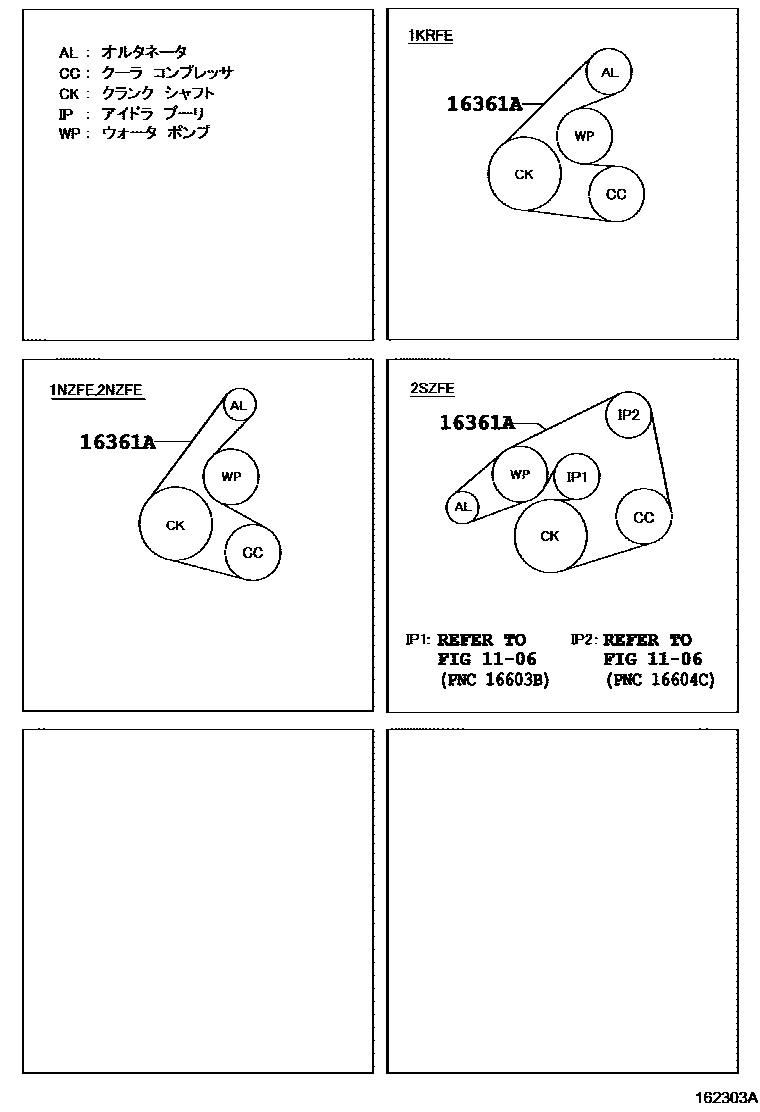

Toyota VITZ — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02556i200708-200809

main90916-02603i200808-200810

main90916-02606i200501-200708

main90916-02649i200708-200808

main90916-02683i200811-201012

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota VITZ

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota VITZ. Key components include: TIMING GEAR COVER & REAR END PLATE, BELT, V(FOR FAN & ALTERNATOR).
