Toyota VITZ — V-BELT

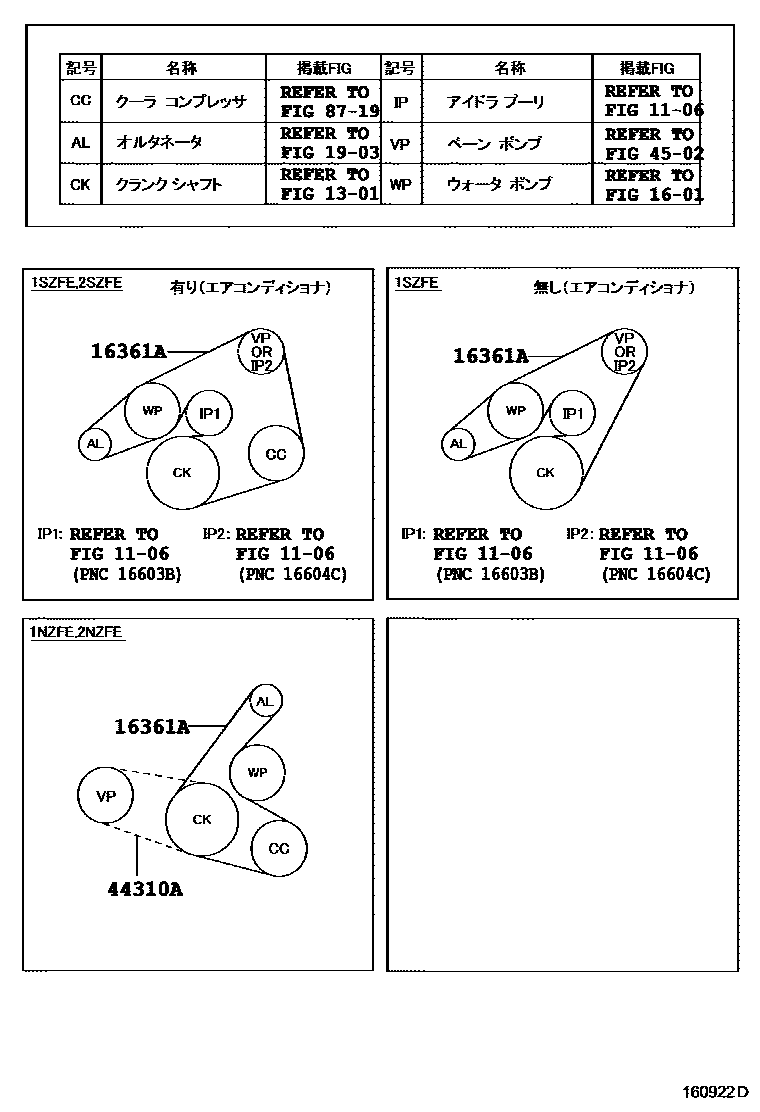

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02475i199901-200008

main90916-02476i200112-200210

main90916-02478i200112-200210

L=1710

main90916-02500i200212-200306

L=1180

main90916-02560i200112-200210

main90916-02561i200112-200212

main90916-02567i200302-200501

main90916-02569i200306-200501

L=1170

main99364-91180i199908-199909

1903ALTERNATOR

→ Go to FIG 19-03

44310ABELT, V(FOR VANE PUMP)

main90916-02575i200405

main90916-02576i200405

main99363-30850i199908-200112

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

8 parts on this diagram · 1 diagram in section

V-BELT for Toyota VITZ

This section contains 8 genuine Toyota parts for the V-BELT system of the Toyota VITZ. Key components include: TIMING GEAR COVER & REAR END PLATE, CRANKSHAFT & PISTON, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), ALTERNATOR.
