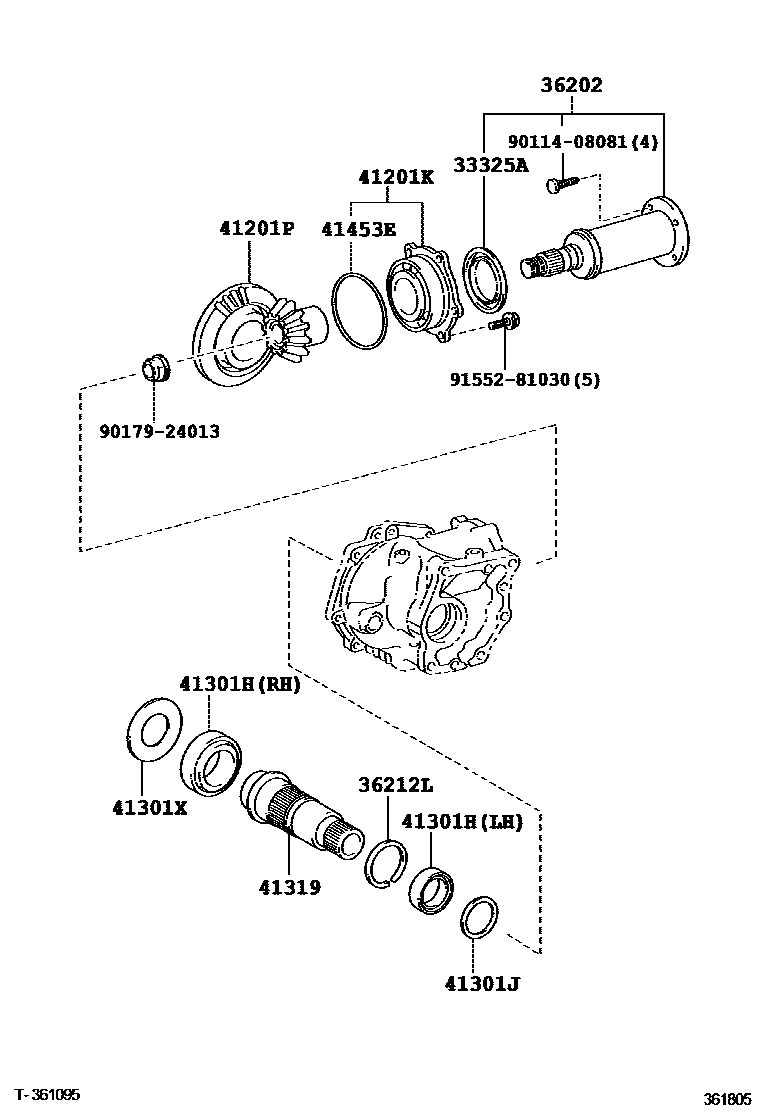

Toyota VITZ — TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
36212LRING, SHAFT SNAP
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
sub36250-42030
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41453ERING, O
9011408081
main90114-08081
9017924013
main90179-24013
9155281030
main91552-81030
13 parts on this diagram · 1 diagram in section
