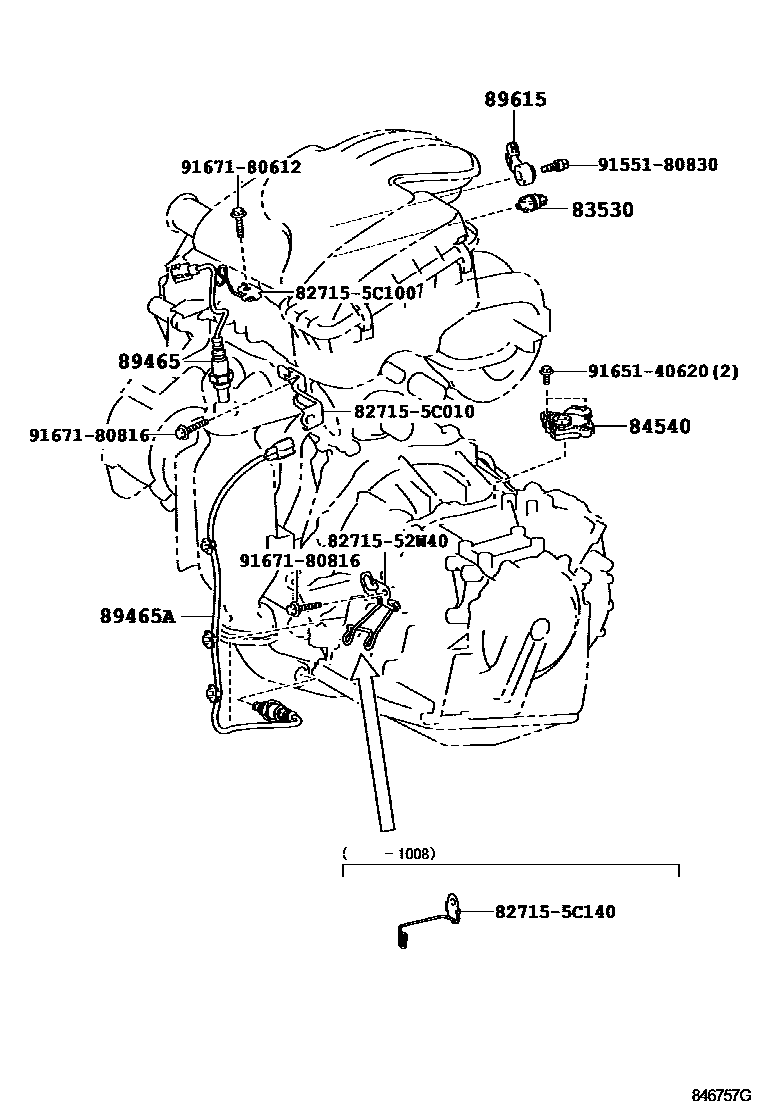

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iKSP90,NCP9#,SCP90200501-201012

main83530-60020iKSP90,NCP9#,SCP90200501-201012

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP95200501-201012

main84540-52070iKSP90,NCP91,SCP90..CVFC200501-201012

89465SENSOR, OXYGEN

main89465-52250iSCP90..RS200501-201008

main89465-52330iKSP90200501-201008

main89465-52390iNCP95200501-201008

main89465-52400iNCP91200501-201008

main89465-52480iNCP91201008-201012

main89467-12220iNCP95201008-201012

main89467-52140iKSP90201008-201012

sub89467-52180

main89467-52150iSCP90201008-201012

89465ASENSOR, OXYGEN NO.2

main89465-52350iKSP90200501-201008

main89465-52360iSCP90200501-201008

main89465-52540iSCP90201008-201012

main89465-52650iKSP90201008-201012

main89465-52660iNCP95201008-201012

89615SENSOR, KNOCK CONTROL

main89615-20090iKSP90,NCP9#,SCP90200501-201012

8271552W40BRACKET,WIRING HARNESS CLAMP

main82715-52W40

827155C010BRACKET,WIRING HARNESS CLAMP

main82715-5C010

827155C100BRACKET,WIRING HARNESS CLAMP

main82715-5C100

827155C140BRACKET,WIRING HARNESS CLAMP

main82715-5C140

9155180830

main91551-80830

9165140620

main91651-40620

9167180612

main91671-80612

9167180816

main91671-80816

13 parts on this diagram · 11 diagrams in section
