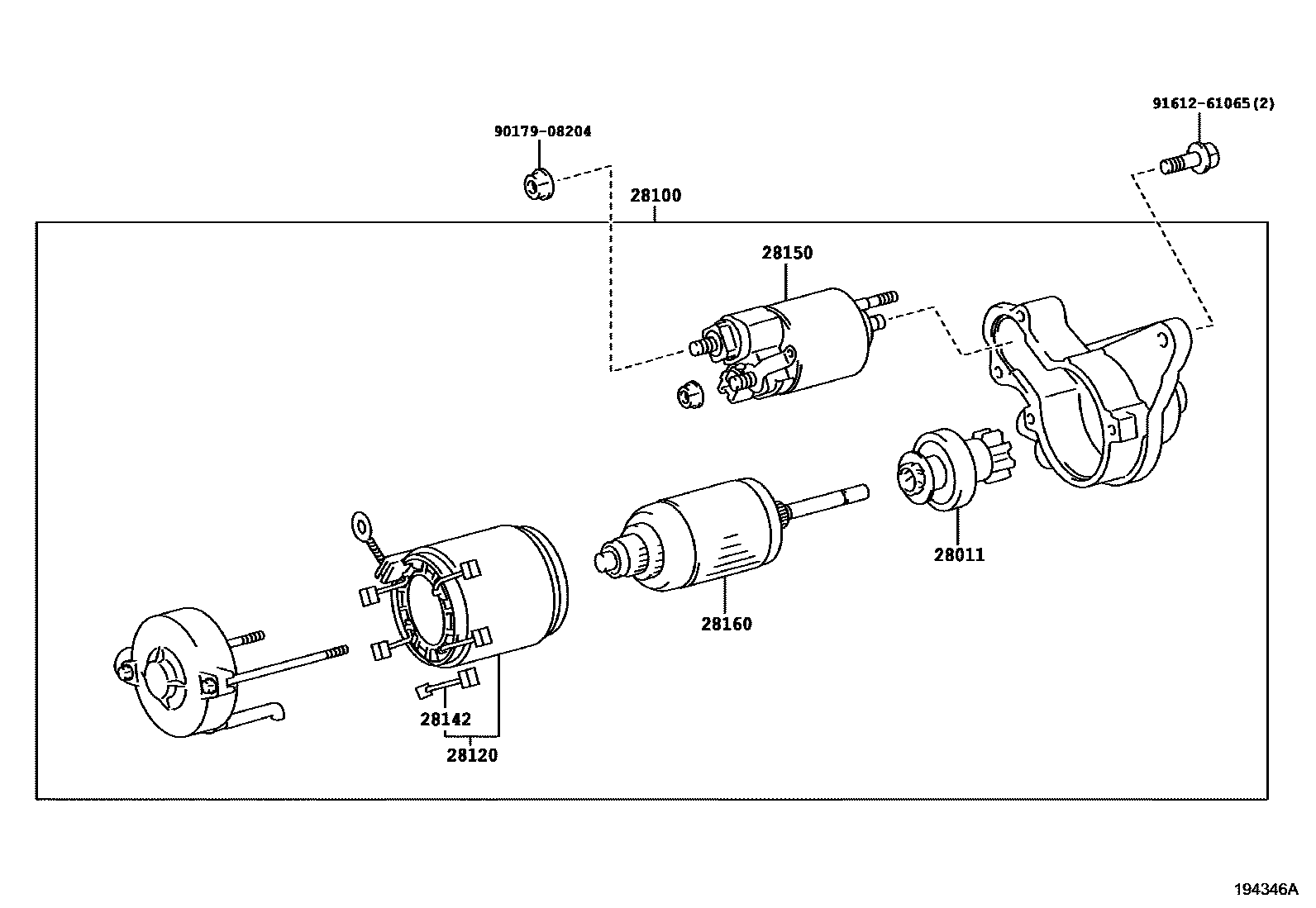

Toyota VITZ — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28120YOKE ASSY, STARTER
28142BRUSH, STARTER
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
9017908204
main90179-08204
9161261065
main91612-61065
8 parts on this diagram · 9 diagrams in section
STARTER for Toyota VITZ
This section contains 34 genuine Toyota parts for the STARTER system of the Toyota VITZ. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BOLT, HOUSING SET.
