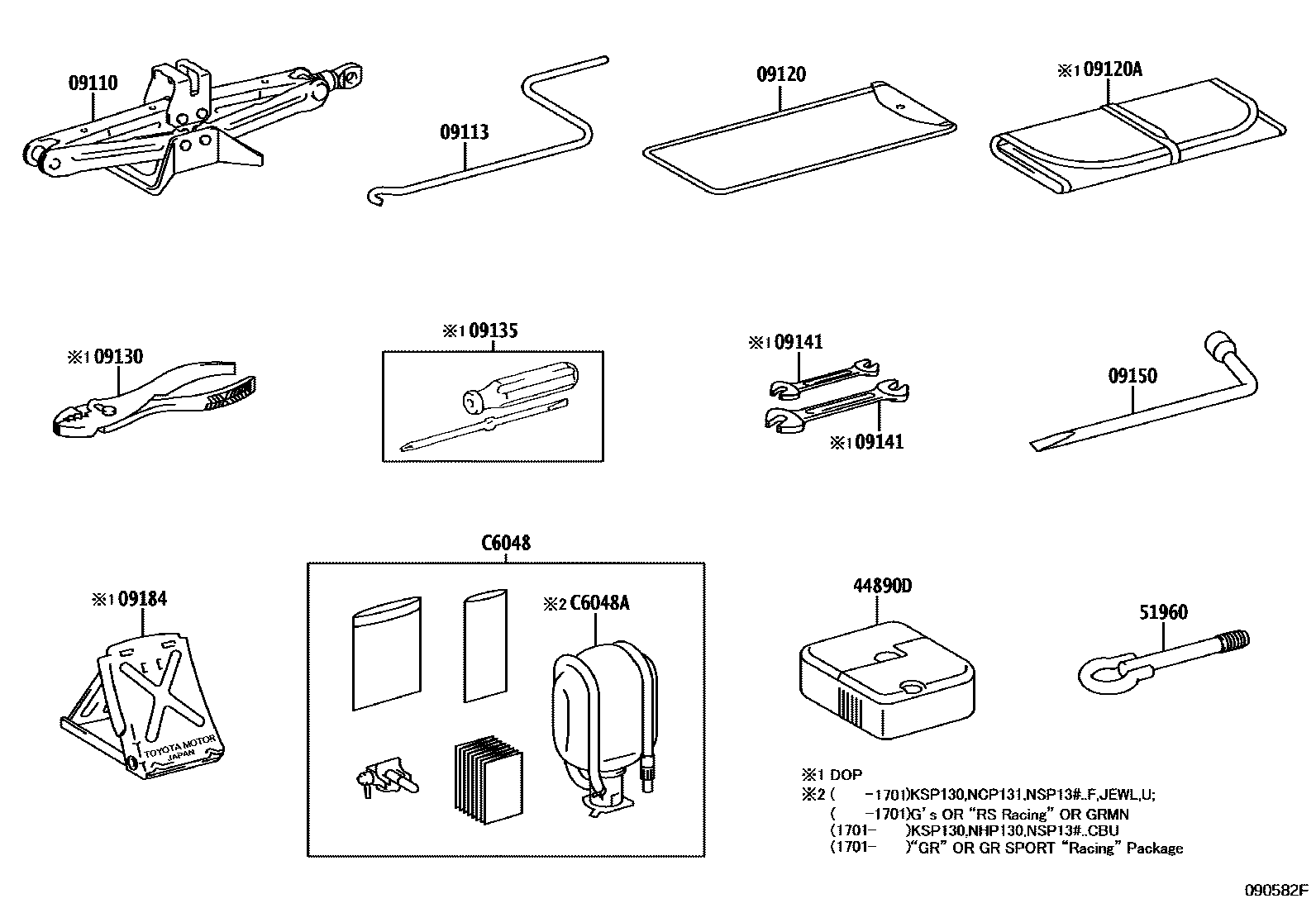

Toyota VITZ — STANDARD TOOL

09110JACK ASSY

main09111-12230iKSP130,NCP131,NHP130,NSP13#..CBU201810

main09111-52060iKSP130,NCP131,NSP13#..CBU201012-201404

09113HANDLE, JACK

main09113-20050iKSP130,NCP131,NSP13#..CBU201404-201701

main09113-52040iKSP130,NCP131,NSP13#..CBU201012-201111

main09113-52060iKSP130,NCP131,NHP130,NSP13#..CBU201810

09120BAG, TOOL

main09120-37030iNCP131..RS201012-201404

09120ACASE, TOOL

main09120-16030iKSP130,NCP131,NHP130,NSP13#..CBU201701

09130PLIERS

main99913-11500iKSP130,NCP131,NSP13#..CBU201404-201701

09135DRIVER, SCREW

main99915-10700iKSP130,NCP131,NSP13#..CBU201012-201404

09141SPANNER

main99914-10810iKSP130,NCP131,NSP13#..CBU201012-201404

main99914-11214iKSP130,NCP131,NSP13#..CBU201404-201701

09150WRENCH, HUB NUT BOX

main09150-40010iKSP130,NCP131,NSP13#..CBU201404-201701

09184STOPPER, WHEEL

main09184-00010iKSP130,NCP131,NSP13#..CBU201012-201404

44890DCOMPRESSOR ASSY, AIR

main44890-52020iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201204

main44890-52021iKSP130,NHP130,NSP13#..CBU201701

sub44890-52022

51960HOOK ASSY, FRONT

main51960-47020iKSP130,NCP131,NSP13#..CBU201012-201404

main51960-52090iKSP130,NCP131,NSP13#..CBU201510-201701

C6048REPAIR SET, TIRE

main42683-52020iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201204

main42683-52021supersedes 42683-52021iNCP131..5F201205-201404

C6048ASEALANT, REPAIR TIRE

mainC604852020iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201204

mainC604852021iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201205-201404

13 parts on this diagram · 1 diagram in section
