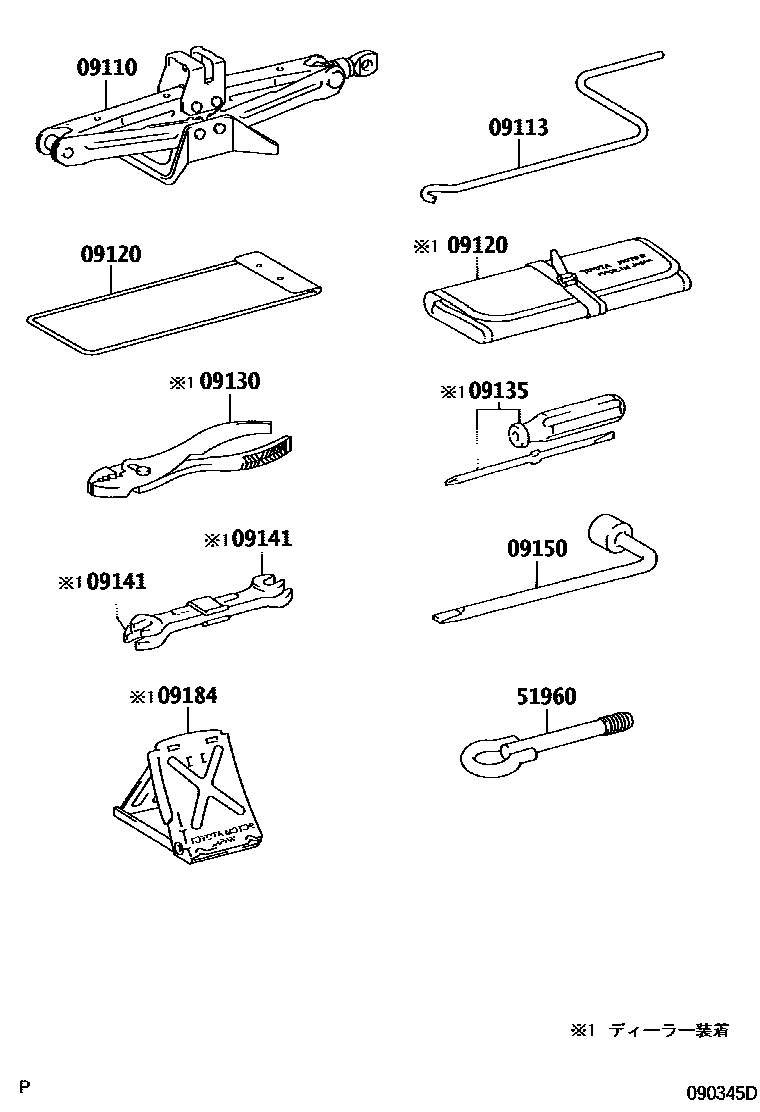

Toyota VITZ — STANDARD TOOL

09110JACK ASSY

main09111-47010iNCP91,SCP90..RS200708-200809

main09111-52060iKSP90,NCP9#,SCP90201009-201012

09113HANDLE, JACK

main09113-52040iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

sub09113-20050

09120BAG, TOOL

main09120-16030supersedes 09120-37030iKSP90,NCP9#,SCP90200501-200708

09130PLIERS

main99913-11500iKSP90,NCP9#,SCP90200501-200708

09135DRIVER, SCREW

main99915-10700iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

09141SPANNER

main99914-10810iNCP91,SCP90..RS200708-200809

main99914-11214iKSP90,NCP9#,SCP90200808-201012

09150WRENCH, HUB NUT BOX

main09150-40010iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

09184STOPPER, WHEEL

main09184-00010iKSP90,NCP9#,SCP90200501-200708

51960HOOK ASSY, FRONT

main51960-47020iKSP90,NCP9#,SCP90200501-200708

9 parts on this diagram · 1 diagram in section
