Toyota VITZ — STANDARD TOOL

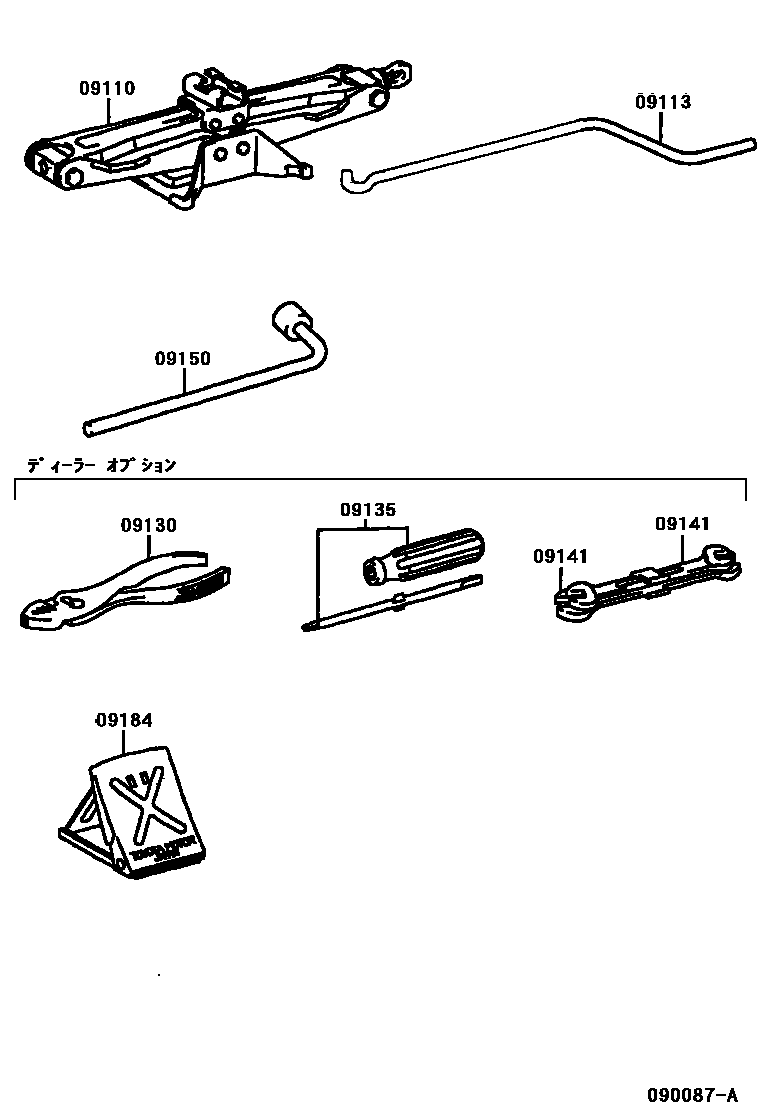

Parts diagram

09110JACK ASSY

main09111-52010i199901-200112

09113HANDLE, JACK

main09113-52010i199901-200112

09130PLIERS

main99913-11500i199901-200112

09135DRIVER, SCREW

main99915-10700i199901-200112

09141SPANNER

main99914-10810i199901-200112

main99914-11214i199901-200112

09150WRENCH, HUB NUT BOX

main09150-40010i200112-200212

09184STOPPER, WHEEL

main09184-00010i199901-200112

7 parts on this diagram · 1 diagram in section
