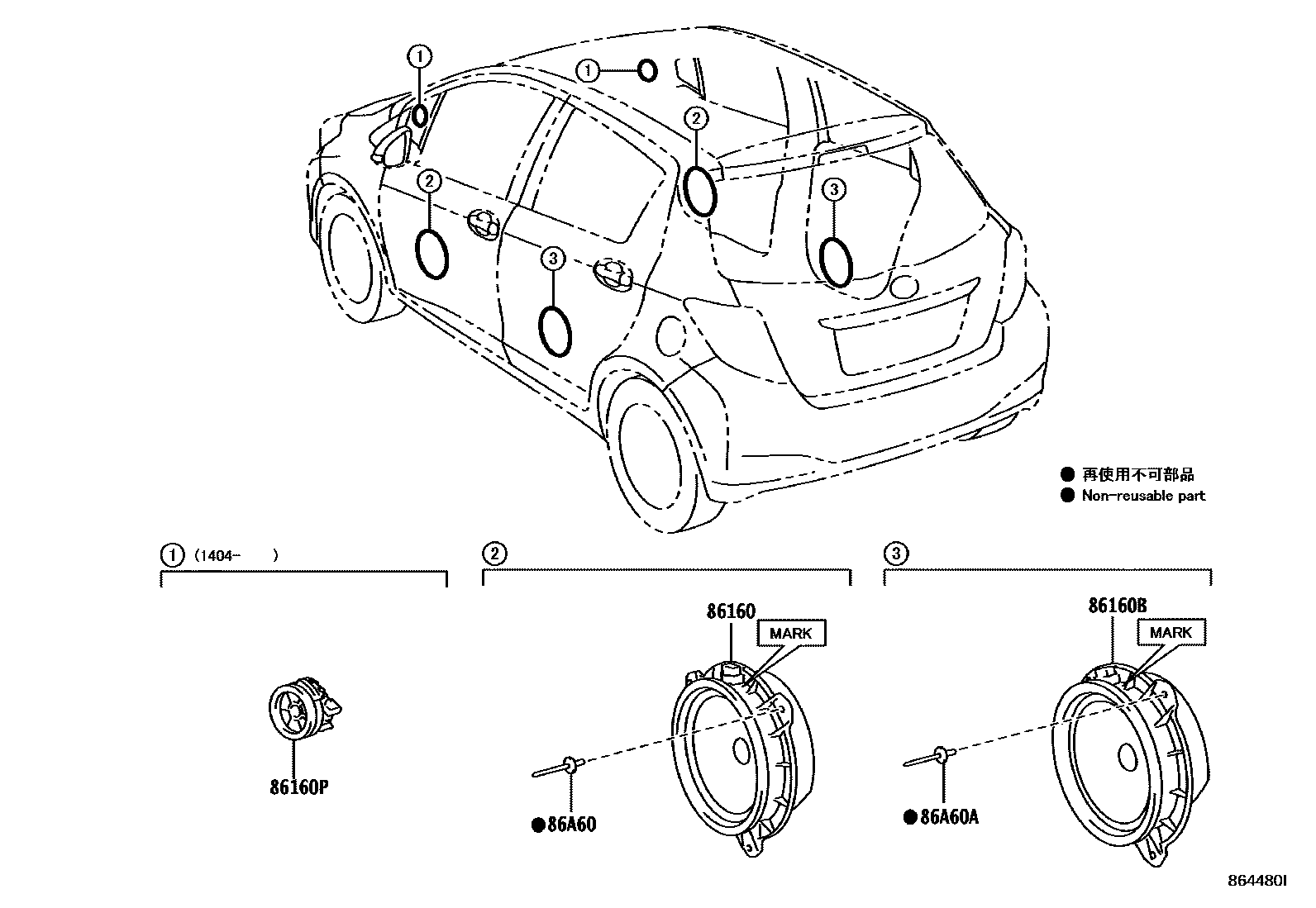

Toyota VITZ — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-30E00×2iKSP130,NCP131,NHP130,NSP13#..CBU201810-202001

main86160-52310×2iKSP130,NCP131,NSP13#..CBU201404-201701

main86160-52330×2iKSP130,NCP131,NSP13#..CBU201012-201404

sub86160-52331

86160BSPEAKER ASSY, REAR

main86160-30E00×2iKSP130,NHP130,NSP13#..F..CBU201810-202001

main86160-52310×2iKSP130,NSP13#..F..CBU201404-201701

main86160-52330×2iKSP130,NSP13#..F..CBU201012-201404

sub86160-52331

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340×2iKSP130,NCP131,NSP13#..CBU201404-201701

86A60RIVET (FOR RADIO SPEAKER)

main90269-05034×6iKSP130,NCP131,NSP13#..CBU201012-201404

main90269-05074×6iKSP130,NCP131,NHP130,NSP13#..CBU201810-202001

86A60ARIVET (FOR RADIO SPEAKER)

main90269-05034×6iKSP130,NSP13#..F..CBU201404-201701

main90269-05074×6iKSP130,NHP130,NSP13#..F..CBU201810-202001

5 parts on this diagram · 1 diagram in section
