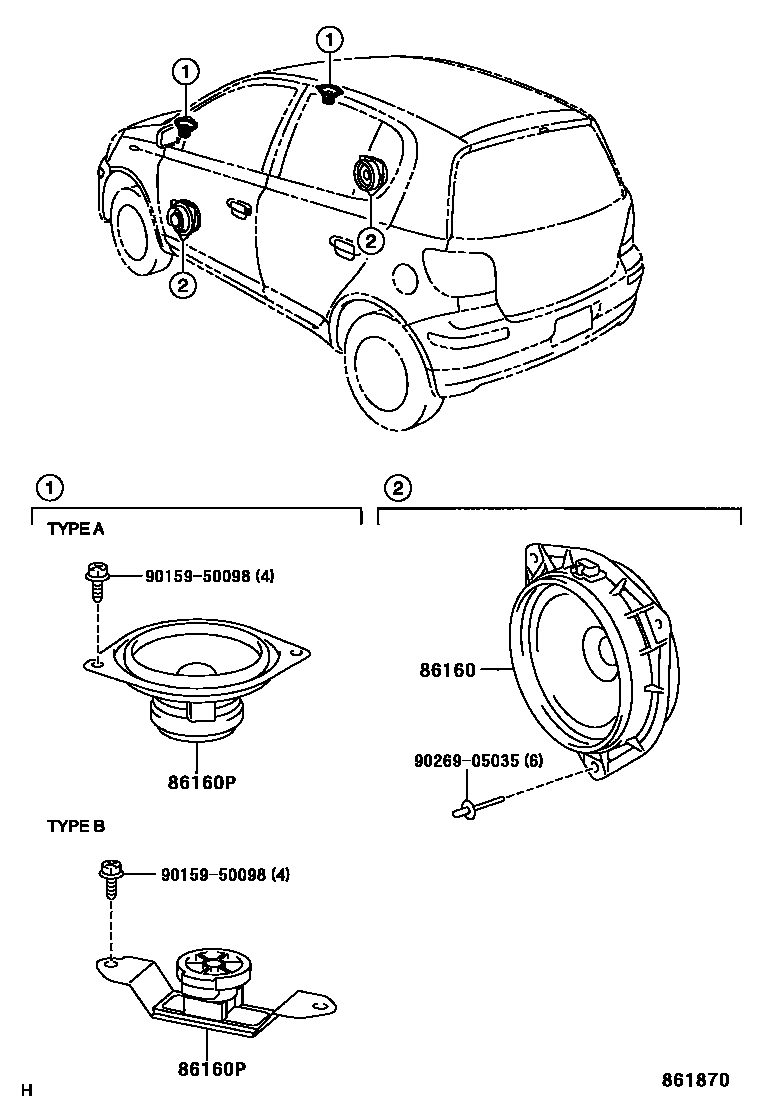

Toyota VITZ — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-47010×2iSCP10..U199901-199908

main86160-52070×2iNCP1#,SCP10..CLA,RS,U199908-200112

86160PSPEAKER ASSY, FRONT NO.2

main86160-52010×2iNCP1#,SCP10199901-200112

main86160-52110×2iNCP1#,SCP10200112-200208

main86160-52190×2iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212

9015950098

main90159-50098

9026905035

main90269-05035

4 parts on this diagram · 1 diagram in section
