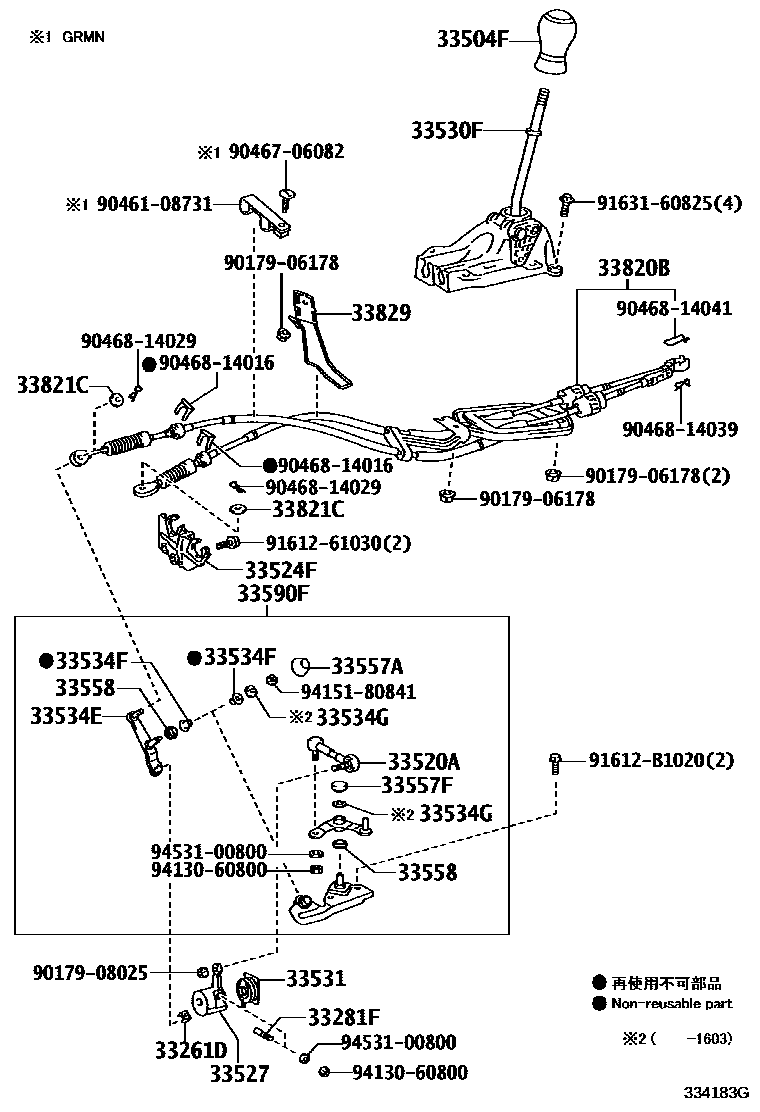

Toyota VITZ — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNCP131..5F201709

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNCP131..5F201404-201701

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-52160-C0supersedes 33504-52160-C0iNCP131,NSP13#..U..CBU201404-201701

BLACK,TRIM2#

main33504-52170-C0iNCP131..CVT..RS201012-201404

BLACK,TRIM1#

main33504-52180-C0supersedes 33504-52180-C0iKSP130,NSP13#..F..CBU201012-201404

BLACK,TRIM1#,5#

main33504-74011-C0supersedes 33504-74011-C0iKSP130,NSP13#..JEWL201012-201404

BLACK,TRIM1#,4#

main33504-12380-C0supersedes 33504-52530-C0iNCP131..5F201709-202001

main33504-52390-C0iKSP130,NSP13#..F..CBU201212-201404

main33504-52400-C0iKSP130,NSP13#..F..CBU201212-201404

main33504-WY030-C0supersedes 33504-52230-C0iNCP131..CVT..RS201404-201701

sub33504-52510

main33504-WY040-C0supersedes 33504-52260-C0iNCP131..5F201404-201701

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNCP131..5F201709

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52050iNCP131..5F201404-201701

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNCP131..5F201709

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52210iNCP131..5F201709-202001

main33530-52300supersedes 33530-52210iNCP131..5F201309-201402

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNCP131..5F201012-201404

33534ECRANK, SELECTING BELL, NO.2

main33534-52020iNCP131..5F201709

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iNCP131..5F201012-201404

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028×2iNCP131..5F201404-201603

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iNCP131..5F201404-201701

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNCP131..5F201012-201404

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030×2iNCP131..5F201709

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-52030iNCP131..5F201012-201404

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12G20iNCP131..CVT201709

main33820-52440iNCP131..5F201012-201404

main33820-52740iKSP130..CBU201404-201701

main33820-52750iNSP130..CBU201404-201701

main33820-52760iNCP131..CVT201012-201404

main33820-52770iNSP135..CBU201012-201404

main33820-52A30iNHP130..CBU201701

main33820-52A50iNCP131..5F201611-201701

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267×2iNCP131..5F201404-201701

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-52092iNCP131..5F201709

main33829-52170iNHP130..CBU201701

main33829-52190iNHP130..CBU201701

main33829-52200iNHP130..CBU201701

9017906178

main90179-06178

9017908025

main90179-08025

9046108731

main90461-08731

9046706082

main90467-06082

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9046814041

main90468-14041

9161261030

main91612-61030

91612B1020

main91612-B1020

9163160825

main91631-60825

9413060800

main94130-60800

9415180841

main94151-80841

9453100800

main94531-00800

32 parts on this diagram · 5 diagrams in section
