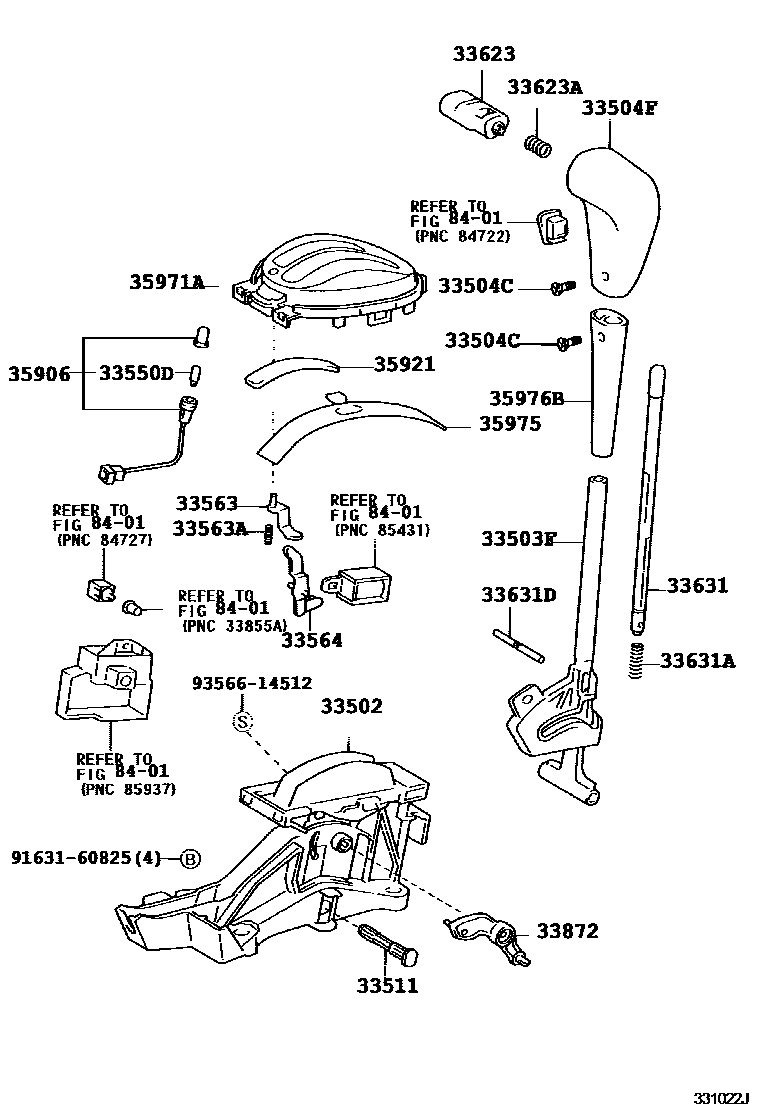

Toyota VITZ — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-52011iNCP1#,SCP10..4FC199901-200112

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-52010iNCP1#,SCP10..4FC199901-200112

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iNCP1#,SCP10..4FC199901-200112

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B6iNCP10,15..5F..CLA199909-200112

BLUE GRAY,TRIM1#

main33504-12180-G4iNCP10,SCP10..5F..U199910-200112

main33504-13010-B0iNCP10,15,SCP10..5F..(B,CLA,F,U)200112-200212

DK.GRAY,TRIM1#

main33504-14050-B7iNCP10,15,SCP10..5F..(B,F,U)199901-200112

sub33504-14070

main33504-14050-G1iNCP10,15,SCP10..5F..(B,F,U)199901-200112

sub33504-14070

main33504-52020-C0iNCP10,13..5F..RS200010-200112

BLACK,TRIM9#

main33504-52050-C0iNCP10,13..5F200212-200310

BLACK,TRIM9#

main33504-52051-C0iNCP10,13..5F200310-200501

BLACK,TRIM9#

main33542-52010-B0iNCP10,15,SCP10..4FC..(B,CLA,F,U)199901-200112

BLUE GRAY,TRIM1#

main33542-52010-B4iNCP10,15,SCP10..4FC..(B,CLA,F,U)200112-200212

DK.GRAY,TRIM9#

main33542-52010-G0iNCP10,15,SCP10..4FC..(B,F,U)199901-200112

MIST GREEN,TRIM7#

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-16060iNCP1#,SCP10..4FC199901-200112

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iNCP1#,SCP10..4FC199901-200112

33563BUTTON, SHIFT LOCK RELEASE

main33563-52010iNCP1#,SCP10..4FC199901-200112

main33563-52030iNCP1#,SCP1#..4FC,CVFC200212

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iNCP1#,SCP10..4FC200112-200212

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-52010iNCP1#,SCP10..4FC199901-200112

33623BUTTON, SHIFT LEVER KNOB

main33623-52010-B0iNCP10,15,SCP10..4FC..(B,CLA,F,U)199901-200112

BLUE GRAY,TRIM1#

main33623-52010-B4iNCP15,SCP10..4FC..(B,F)200112-200212

DK.GRAY,TRIM1#

main33623-52010-G0iNCP10,15,SCP10..4FC..(B,F,U)199901-200112

MIST GREEN,TRIM7#

main33623-52040-B1iNCP10,15,SCP10..4FC..(CLA,U)200112-200212

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iNCP1#,SCP10..4FC200112-200212

33631ROD, DETENT

main33631-52010iNCP1#,SCP10..4FC199901-200112

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-09105iNCP1#,SCP10..4FC199901-200112

33631DPIN, GROOVED (FOR DETENT ROD)

main33632-52010iNCP1#,SCP10..4FC199901-200112

33872LINK, SHIFT LOCK RELEASE, NO.2

main33872-52010iNCP1#,SCP10..4FC199901-200112

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52010iNCP1#,SCP10..4FC200112-200212

35921PLATE, CONTROL POSITION INDICATOR

main35921-52010iNCP1#,SCP10..4FC199901-200112

main35921-52040iSCP13200212

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52010iNCP10,15,SCP10..4FC..(B,F,U)199901-200112

main35971-52050iNCP10,15..4FC..CLA199909-200112

main35971-52060iNCP10,13..4FC..RS200010-200112

main35971-52110iNCP10,15,SCP10..4FC..(B,F,U)200112-200212

main35971-52120iNCP10,13..4FC..RS200112-200212

main35971-52130iNCP10,15..4FC..CLA200112-200212

main35971-52170iNCP10,13..4FC200212

main35971-52180iSCP1#..5D..(4FC,CVFC)..(F,U)200401-200403

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52010iNCP1#,SCP10..4FC199901-200112

main35975-52030iNCP1#,SCP10..4FC200112-200212

main35975-52070iSCP13200212

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-52010-B0iNCP10,15,SCP10..4FC..(B,CLA,F,U)199901-200112

BLUE GRAY,TRIM1#

main35976-52010-B4iNCP15,SCP10..5D..4FC..F200308-200501

DK.GRAY,TRIM02,96,98

main35976-52010-G0iNCP10,15,SCP10..4FC..(B,F,U)199901-200112

MIST GREEN,TRIM7#

8401

9163160825

main91631-60825

9356614512

main93566-14512

23 parts on this diagram · 7 diagrams in section
