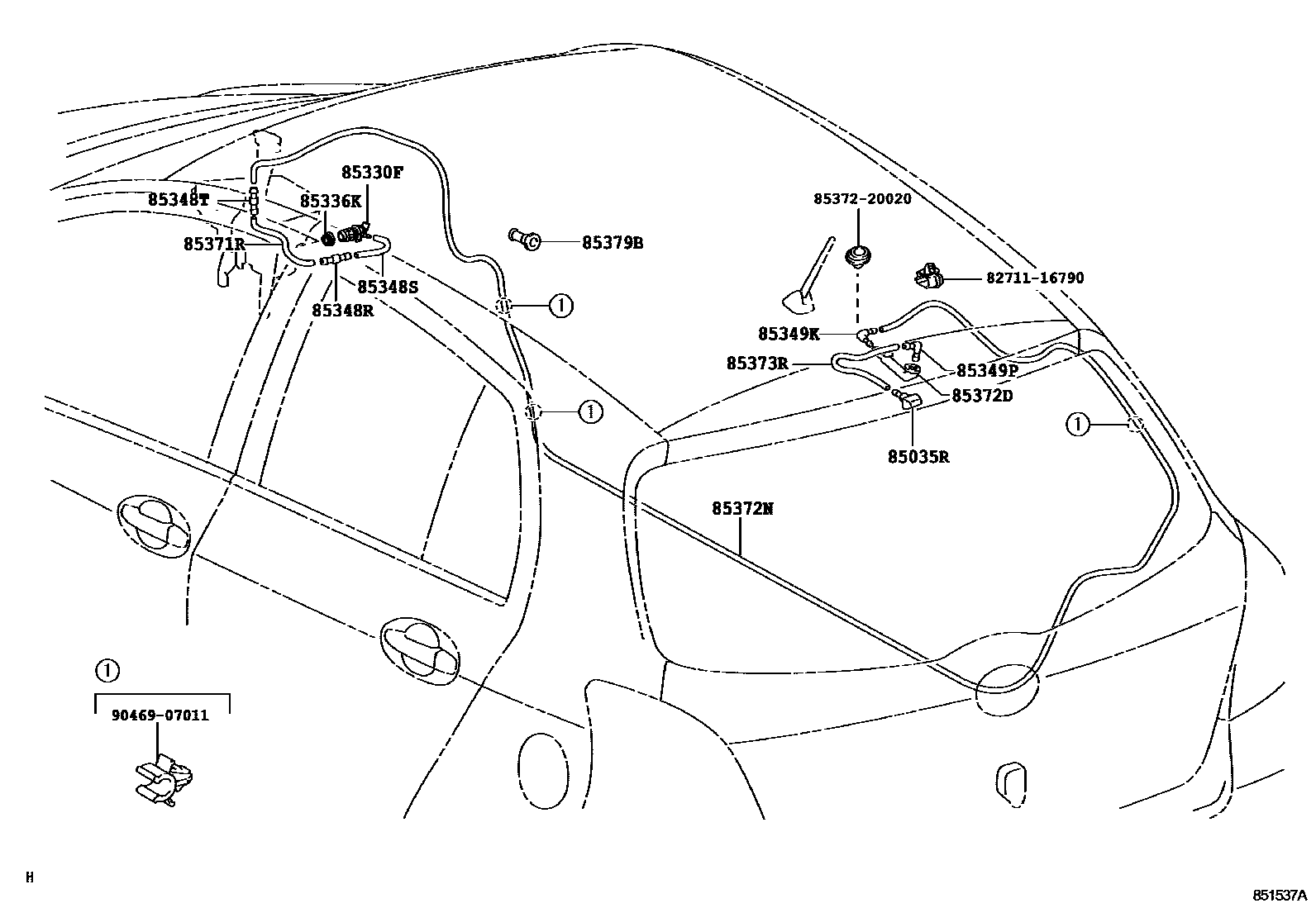

Toyota VITZ — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010i200501-200708

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160i200501-200708

85336KPROTECTOR, WASHER JAR

main85336-60300i200501-200708

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i200501-200708

85348SJOINT, REAR WASHER ELBOW, NO.1

main85336-12230i200501-200708

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122i200501-200708

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200i200501-200708

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200i200501-200708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080i200501-200502

85372DGROMMET, REAR WASHER HOSE

main85372-20040i200501-200708

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595i200501-200706

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299i200501-200708

85379BGROMMET, WASHER, A

main85379-52350i200501-200503

main85379-52351i200504-200708

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

9046907011

main90469-07011

16 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota VITZ

This section contains 16 genuine Toyota parts for the REAR WASHER system of the Toyota VITZ. Key components include: NOZZLE SUB-ASSY, REAR WASHER, MOTOR & PUMP ASSY, RR WASHER, PROTECTOR, WASHER JAR, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1.
