Toyota VITZ — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010i199901-200112

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i199901-200112

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200i199901-200112

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200i199901-200112

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080i199901-200112

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-59247i199901-200112

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199901-199912

main90099-33299i199912-200112

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

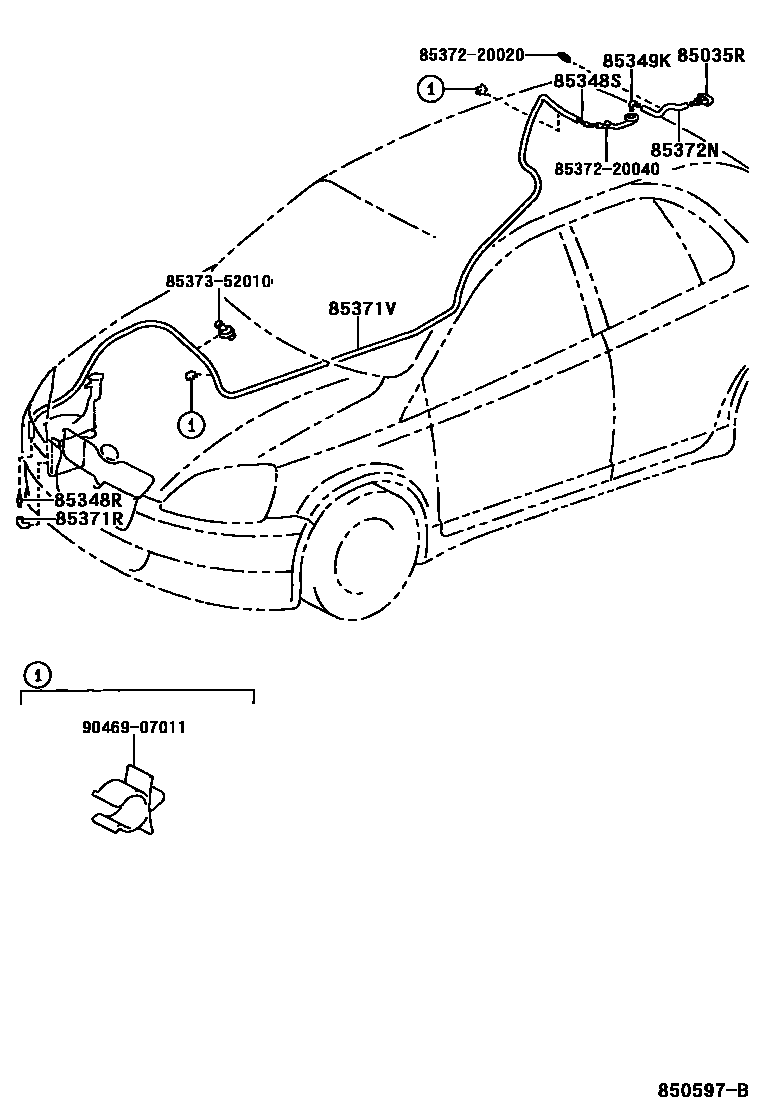

11 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota VITZ

This section contains 11 genuine Toyota parts for the REAR WASHER system of the Toyota VITZ. Key components include: NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER ELBOW, NO.2, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
