Toyota VITZ — QUARTER WINDOW

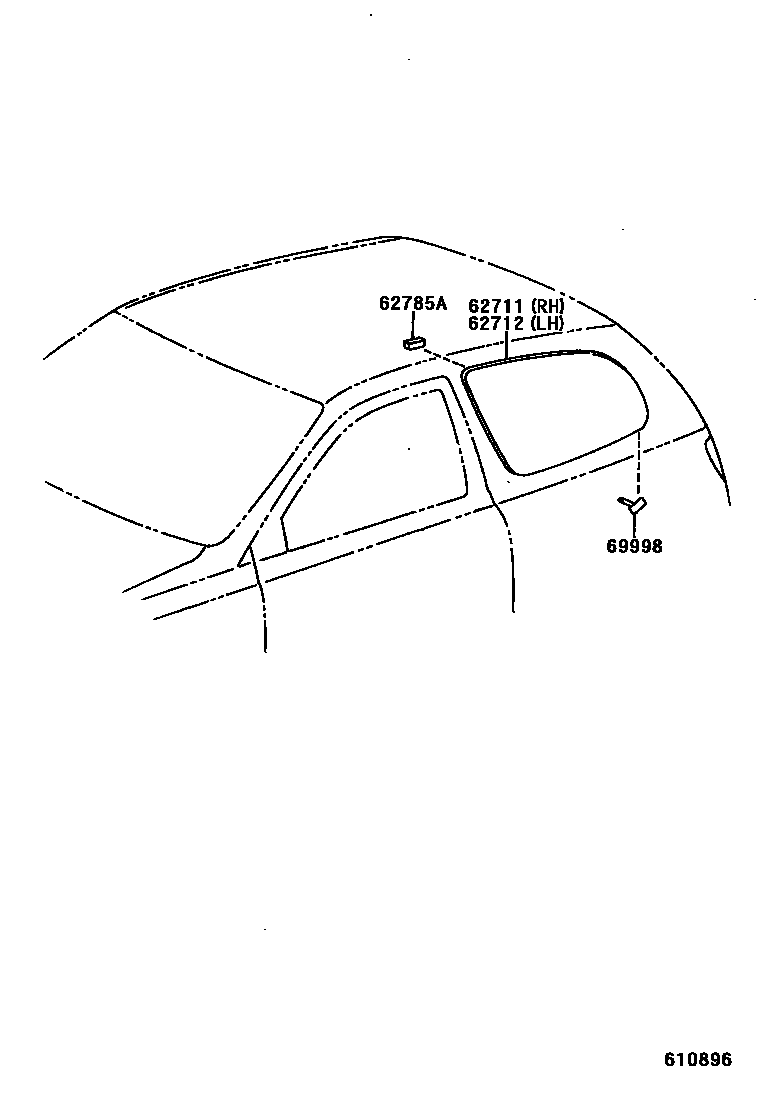

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62711-52010i200212-200306

main62711-52011i200306

main62711-52020i200212

main62711-52220i200212

62712GLASS, QUARTER WINDOW, LH

main62712-52010i199901-200112

main62712-52011i200306

main62712-52020i200112-200212

main62712-52210i200212

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030×8i199901-200112

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52010×4i199901-200112

4 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota VITZ

This section contains 4 genuine Toyota parts for the QUARTER WINDOW system of the Toyota VITZ. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, SPACER, QUARTER WINDOW GLASS, PIN, QUARTER WINDOW GUIDE PIECE, NO.1.
