Toyota VITZ — PARTIAL ENGINE ASSEMBLY

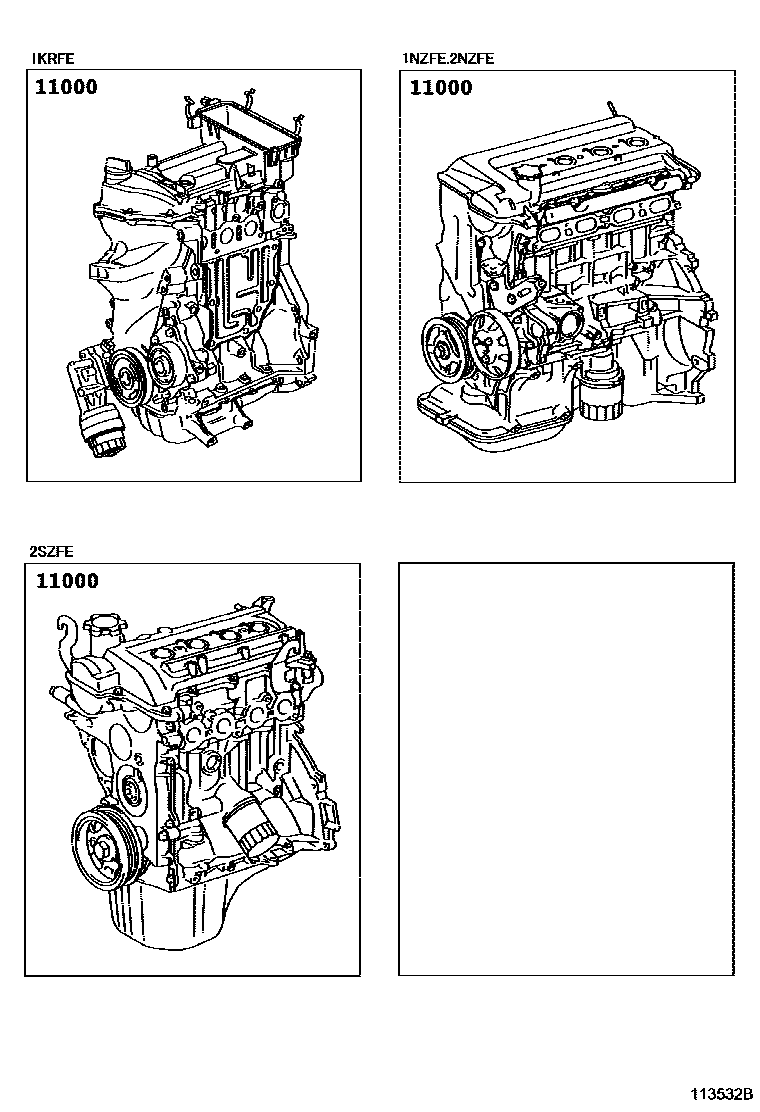

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21830i200501-200708
sub19000-21831
sub12204-21011
main19000-21831i200708-201008
sub19000-21E00
main19000-21851i200501-201012
main19000-21C41i200708-200809
sub19000-21851
main19000-21C60i201008-201012
main19000-23220i200501-201008
main19000-23260i201008-201012
main19000-40150i200501-200611
sub19000-40290
main19000-40151i200708-201008
sub19000-40152
main19000-40151i200611-200708
sub19000-40152
main19000-40250i201008-201012
sub19000-40251

1 parts on this diagram · 1 diagram in section
