Toyota VITZ — PARTIAL ENGINE ASSEMBLY

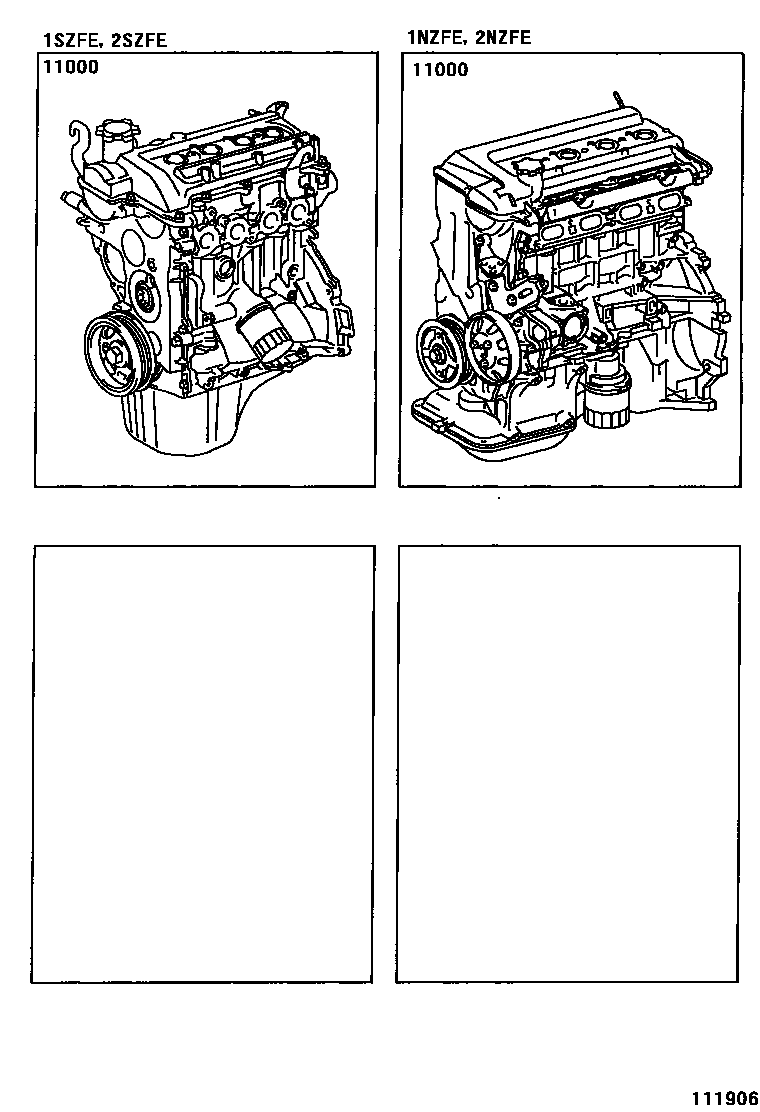

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21040i199908-200002
main19000-21041i200002-200008
sub19000-21042
main19000-21160i200008-200112
sub19000-21161
sub12204-21011
main19000-21171i200112-200212
sub19000-21172
sub12204-21011
main19000-21200i200212-200312
sub12204-21011
main19000-21210i200212-200501
sub19000-21621
sub12204-21011
main19000-21631i200312-200501
main19000-23090i199901-200001
main19000-23091i200001-200105
main19000-23120i200105-200112
main19000-23160i200112-200212
main19000-23170i200212-200312
main19000-23180i200312-200501
main19000-23190i200312-200501

1 parts on this diagram · 1 diagram in section
