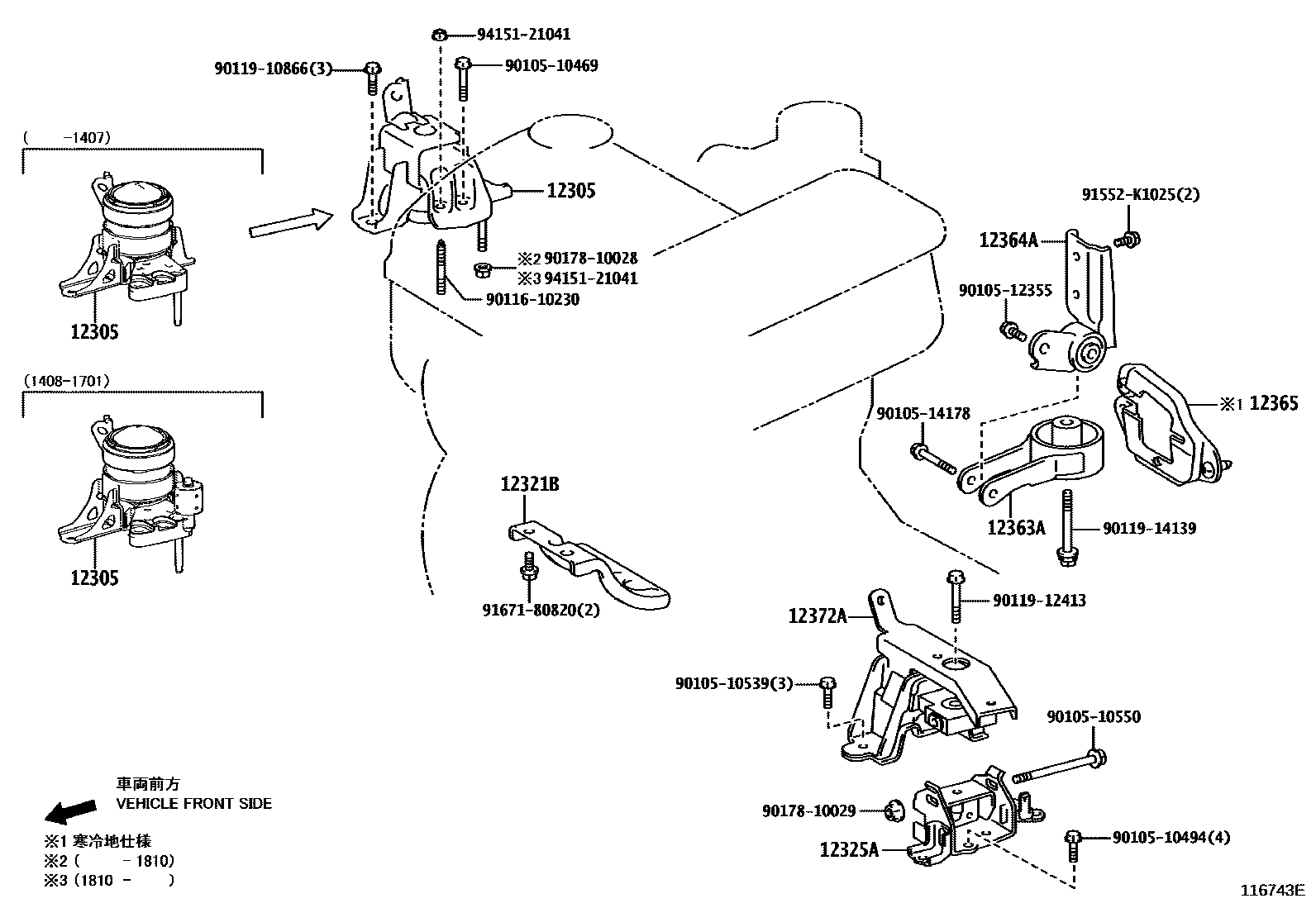

Toyota VITZ — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21200i1NZFE..NCP131..5F201012-201404

main12305-21370i1NZFE..NCP131..CVT201012-201404

main12305-21451i1NZFXE..NHP130..CBU201701-201805

main12305-21520i1NZFE..NCP131..CVT201709

main12305-21570i1NZFXE..NHP130..CBU201806

main12305-40100i1KRFE..KSP130..CBU201404-201407

main12305-40101i1KRFE..KSP130..CBU201408-201701

main12305-40110i1KRFE..KSP130..CBU201012-201302

main12305-40111i1KRFE..KSP130..CBU201303-201304

main12305-40112i1KRFE..KSP130..CBU201305-201404

main12305-40150i1KRFE..KSP130..CBU201701

main12305-47040i1NRFKE..NSP130201404-201411

main12305-47041i1NRFKE..NSP130201701

main12305-47070i1NRFE..NSP13#..CBU201012-201302

main12305-47071i1NRFE..NSP135..CBU201701

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12080i1NZFE..NCP131..CVT201404-201701

main43409-52020i1NZFE..NCP131201012-201404

main43498-52070i1NRFE..NSP130..CBU201012-201404

main43498-52080i1KRFE..KSP130..CBU201012-201404

main43498-52090i1NZFXE..NHP130..CBU201701

main43498-52110i1NRFKE..NSP130201701

main43498-52120i1KRFE..KSP130..CBU201701

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21170i1NZFE..NCP131..CVT201404-201701

main12325-21230i1NZFE..NCP131..5F201709

main12325-21240i1NRFE..NSP135..CBU201012-201404

main12325-21260i1NZFXE..NHP130..CBU201701

main12325-40020i1KRFE..KSP130..CBU201404-201701

main12325-47120i1NRFKE..NSP130201404-201701

12363AROD, ENGINE MOVING CONTROL

main12363-21040i1NZFE..NCP131..5F201709

main12363-21140i1NRFE..NSP135..CBU201012-201404

main12363-21141i1NRFE..NSP135..CBU201405-201701

main12363-21150i1NZFE..NCP131..CVT201404-201405

main12363-21151i1NZFE..NCP131..CVT201709

main12363-21200i1NZFXE..NHP130..CBU201701

main12363-23010i1NRFE..NSP130..CBU201012-201404

main12363-40070i1KRFE..KSP130..CBU201012-201404

main12363-40071i1KRFE..KSP130..CBU201701

main12363-47051i1NRFKE..NSP130201701

main12364-21090i1NRFE..NSP135..CBU201012-201404

main12364-21110i1NZFE..NCP131..CVT201404-201701

main12364-47010i1NRFE..NSP130..CBU201012-201404

main12363-21190supersedes 12363-21040i1NZFE..NCP131..5F201309-201402

12364AROD, ENGINE LATERAL CONTROL

main12364-40030i1KRFE..KSP130..CBU201012-201404

main12364-40040i1KRFE..KSP130..CBU201404-201701

12365COVER, ENGINE MOVING CONTROL ROD

main12365-40010i1KRFE..KSP130..CBU201404-201701

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21310i1NZFE..NCP131..CVT201404-201701

main12372-21320i1NZFE..NCP131..5F201709

main12372-21390i1NZFXE..NHP130..CBU201701

main12372-40070i1KRFE..KSP130..CBU201012-201404

main12372-40080i1KRFE..KSP130..CBU201701

main12372-47090i1NR#..NSP13#..CBU201404-201701

main12372-21430supersedes 12372-21320i1NZFE..NCP131..5F201309-201402

9010510469

main90105-10469

9010510494

main90105-10494

9010510539

main90105-10539

9010510550

main90105-10550

9010512355

main90105-12355

9010514178

main90105-14178

9011610230

main90116-10230

9011910866

main90119-10866

9011912413

main90119-12413

9011914139

main90119-14139

9017810028

main90178-10028

9017810029

main90178-10029

91552K1025

main91552-K1025

9167180820

main91671-80820

9415121041

main94151-21041

22 parts on this diagram · 7 diagrams in section
