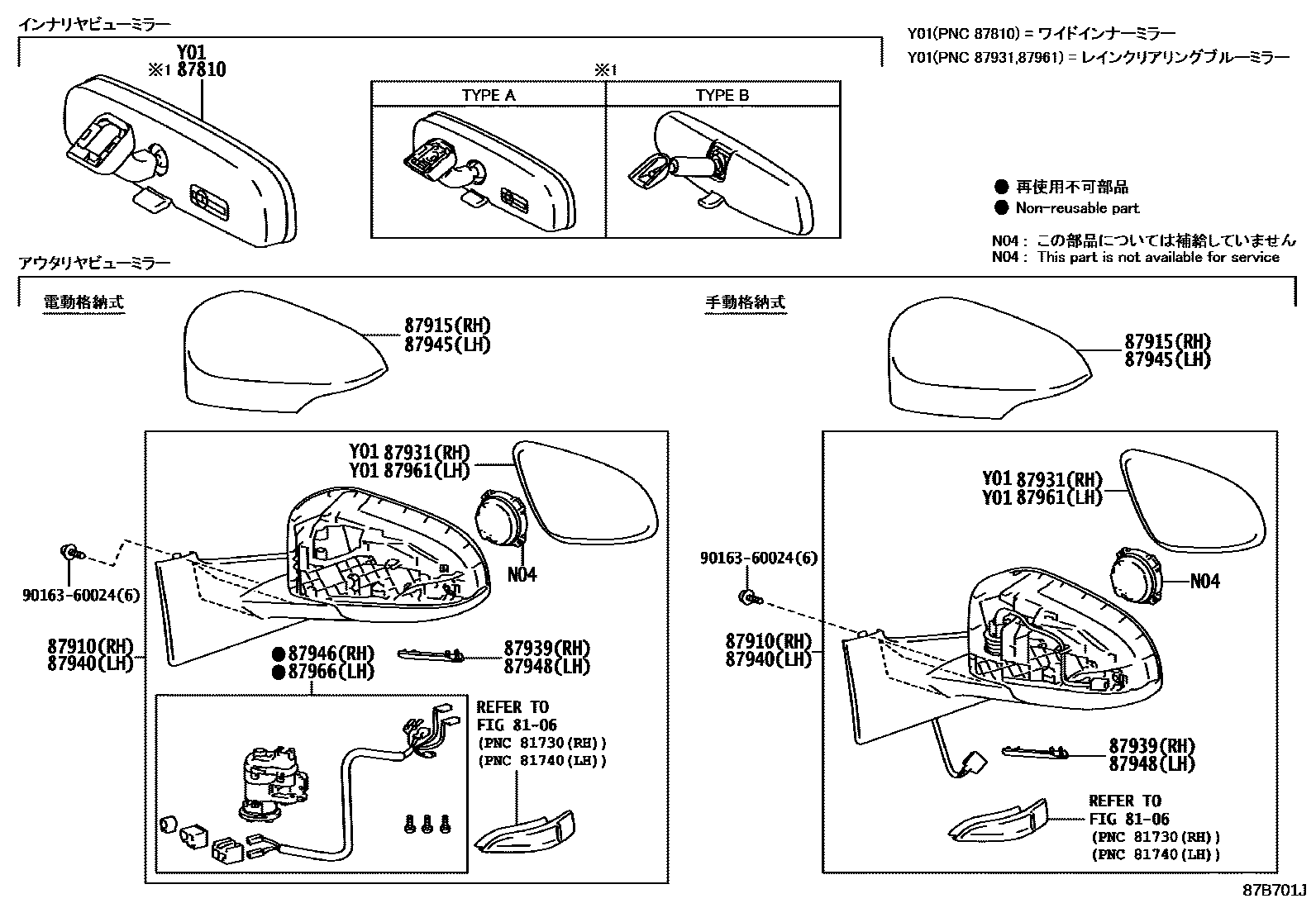

Toyota VITZ — MIRROR

0001 1 0002 1

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WQ40supersedes 87810-52041iKSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU201507-201701

main87810-52041iKSP130,NCP131,NSP13#..CBU201012-201404

main87810-AA011iKSP130,NCP131,NSP13#..CBU201111-201404

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52B90iKSP130,NCP131,NSP13#..CBU201404-201701

main87910-52D20iKSP130,NSP130..F..CBU201701

main87910-52E90supersedes 87910-52B90iKSP130,NCP131,NHP130,NSP13#..CBU201701

87915COVER, OUTER MIRROR, RH

main87915-52140-A0iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201701

SUPER WHITE 2,040

main87915-52140-A1iKSP130,NCP131,NHP130,NSP13#..CBU201701

WHITE PEARL CS.,070

main87915-52140-B0iKSP130,NCP131,NSP13#..CBU201012-201404

SILVER ME.,1F7

main87915-52140-B1iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201701

GRAY ME.,1G3

main87915-52140-B2iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201404

GIN BUCK ME.,1J1

main87915-52140-C0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

BLACK MC.,209

main87915-52140-D0iKSP130,NCP131,NHP130,NSP13#..CBU201701

SUPER RED 5,3P0

main87915-52140-D1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201212

ROSE ME.OP.,3P3

main87915-52140-D2iNCP131..5F;NSP130..JEWL;KSP130,NSP135..(F,JEWL)..CBU201404-201701

CHERRY PEARL CS.,3S7

main87915-52140-D4iKSP130,NSP13#..F..CBU201212-201404

DEEP RED M.M.,3R9

main87915-52140-D6iKSP130,NHP130,NSP13#..F..CBU201806

DK. RED M.M.,3Q3

main87915-52140-D7iKSP130,NHP130,NSP13#..F..CBU201901

RED MC.,3T3

main87915-52140-E0iKSP130,NSP13#..(F,JEWL)..CBU201012-201404

DK. BROWN M.M.,4U3

main87915-52140-E1iNCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BEIGE M.M.,4R3

main87915-52140-E2iNHP130..(F,JEWL,U)..CBU;KSP130,NCP131,NSP13#..CBU201701-201910

ORANGE ME.,4R8

main87915-52140-E4iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

AVANT-GARDE BRONZE ME.,4V8

main87915-52140-F0iKSP130,NSP13#..F..CBU201212-201404

SILKY GOLD M.M.,5A7

main87915-52140-F2iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201701

LUMINOUS YELLOW,5B5

main87915-52140-H0iNCP131..RS201012-201404

TURQUOISE M.M.,788

main87915-52140-J0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

LT.BLUE M.M.,8S7

main87915-52140-J2iKSP130,NSP13#..F..CBU201212-201404

DK.BLUE MC.,8S6

main87915-52140-J4iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

BLUE ME.,8T7

main87915-52140-J5iNCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

COOL SODA ME.,8V7

main87915-52140-J6iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

CLEAR BLUE CS.,8Y3

main87915-52140-K0iKSP130,NSP13#..F..CBU201205-201404

LT.PURPLE M.M.,9AE

main87915-52140-K2iKSP130,NHP130,NSP13#..F..CBU201901

JEWELRY PURPLE M.M.,9AR

main87915-52210iNSP135..F..CBU201611-201701

87931OUTER MIRROR, RH

main87931-52B90iKSP130,NCP131,NSP13#..CBU201012-201404

main87931-52C50supersedes 87931-52B90iKSP130,NCP131,NHP130,NSP13#..CBU201701

87939COVER, OUTER MIRROR HOLE, RH

main87939-52B90iKSP130,NCP131,NSP13#..CBU201012-201404

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52B30iKSP130,NCP131,NSP13#..CBU201012-201404

main87940-52D00iKSP130,NSP130..F..CBU201701

main87940-52E80supersedes 87940-52B30iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

87945COVER, OUTER MIRROR, LH

main87945-52140-A0iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

SUPER WHITE 2,040

main87945-52140-A1iKSP130,NCP131,NHP130,NSP13#..CBU201701

WHITE PEARL CS.,070

main87945-52140-B0iKSP130,NCP131,NSP13#..CBU201012-201404

SILVER ME.,1F7

main87945-52140-B1iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201701

GRAY ME.,1G3

main87945-52140-B2iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201404

GIN BUCK ME.,1J1

main87945-52140-C0iKSP130,NCP131,NSP13#..CBU201404-201701

BLACK MC.,209

main87945-52140-D0iKSP130,NCP131,NSP13#..CBU201404-201701

SUPER RED 5,3P0

main87945-52140-D1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201212

ROSE ME.OP.,3P3

main87945-52140-D2iKSP130,NSP13#..JEWL201012-201404

CHERRY PEARL CS.,3S7

main87945-52140-D4iNHP130..F..CBU;KSP130,NCP131,NSP13#..(F,GRS)..CBU201710

DEEP RED M.M.,3R9

main87945-52140-D6iKSP130,NHP130,NSP13#..F..CBU201806

DK. RED M.M.,3Q3

main87945-52140-D7iKSP130,NHP130,NSP13#..F..CBU201901

RED MC.,3T3

main87945-52140-E0iNCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201507

DK. BROWN M.M.,4U3

main87945-52140-E1iNCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BEIGE M.M.,4R3

main87945-52140-E2iKSP130,NCP131,NSP13#..CBU201507-201701

ORANGE ME.,4R8

main87945-52140-E4iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

AVANT-GARDE BRONZE ME.,4V8

main87945-52140-F0iKSP130,NSP13#..F..CBU201212-201404

SILKY GOLD M.M.,5A7

main87945-52140-F2iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201701

LUMINOUS YELLOW,5B5

main87945-52140-H0iNCP131..RS201012-201404

TURQUOISE M.M.,788

main87945-52140-J0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

LT.BLUE M.M.,8S7

main87945-52140-J2iKSP130,NHP130,NSP13#..F..CBU201710

DK.BLUE MC.,8S6

main87945-52140-J4iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

BLUE ME.,8T7

main87945-52140-J5iNCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

COOL SODA ME.,8V7

main87945-52140-J6iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

CLEAR BLUE CS.,8Y3

main87945-52140-K0iKSP130,NSP13#..F..CBU201205-201404

LT.PURPLE M.M.,9AE

main87945-52140-K2iKSP130,NHP130,NSP13#..F..CBU201901

JEWELRY PURPLE M.M.,9AR

main87945-52210iKSP130,NSP13#..JEWL201404-201701

87946RETRACTOR, OUTER MIRROR, RH

main87946-52B90iKSP130,NCP131,NSP13#..CBU201012-201404

sub87946-52B91

main87946-52E90iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

main87946-52E91supersedes 87946-52B91iKSP130,NCP131,NHP130,NSP13#..CBU201802

87948COVER, OUTER MIRROR HOLE, LH

main87948-52B30iKSP130,NCP131,NSP13#..CBU201012-201404

87961MIRROR OUTER, LH

main87961-52B30iKSP130,NCP131,NSP13#..CBU201012-201404

main87961-52C30supersedes 87961-52B30iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

87966RETRACTOR, OUTER MIRROR, LH

main87966-52B30iKSP130,NCP131,NSP13#..CBU201404-201701

sub87966-52B31

main87966-52E80iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201404-201701

main87966-52E81supersedes 87966-52B31iKSP130,NCP131,NHP130,NSP13#..CBU201802

9016360024

main90163-60024

13 parts on this diagram · 2 diagrams in section
