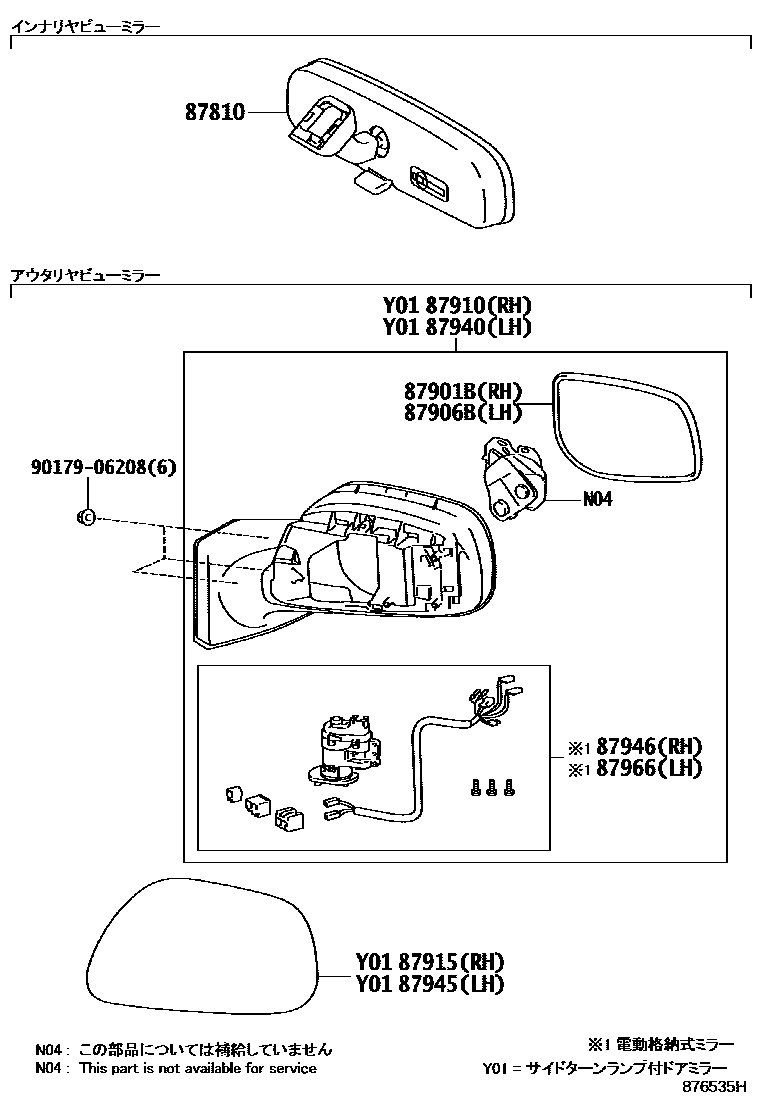

Toyota VITZ — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040iKSP90,NCP9#,SCP90200501-200611

main87810-52041iKSP90,NCP9#,SCP90200612-200708

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-52640iKSP90,NCP9#,SCP90200501-200708

main87931-52A00iKSP90,NCP9#,SCP90200808-201012

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-52620iKSP90,NCP9#,SCP90200501-200708

main87961-52880iKSP90,NCP9#,SCP90200708-200809

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52630iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

main87910-52A10supersedes 87910-52A30iKSP90,NCP9#,SCP90..F,ILL,RS,U200708-200809

87915COVER, OUTER MIRROR, RH

main87915-12070-A0iKSP90,NCP9#,SCP90..F,RS,U201008-201012

main87915-12070-A1iKSP90,NCP9#,SCP90..F,ILL,U200808-201012

WHITE PEARL CS.,070

main87915-12070-A2iKSP90,NCP9#,SCP90..F,RS,U200708-200809

WHITE,068

main87915-12070-B0iKSP90..B201008-201012

SILVER ME.,1F7

main87915-12070-B1iNCP91,SCP90..RS200809-201012

GRAY ME.,1G3

main87915-12070-B3iKSP90,NCP9#,SCP90..F,U200708-200808

SILVER M.M.,1E7

main87915-12070-B4iKSP90,NCP9#,SCP90..F,ILL,RS,U200808-201012

MEDIUM SILVER ME.,1F8

main87915-12070-B5iNCP91,SCP90..RS200708-200809

DK.GRAY M.M.,1F6

main87915-12070-C0iKSP90,NCP9#,SCP90..F,RS,U200708-200809

BLACK MC.,209

main87915-12070-D2iKSP90,NCP9#,SCP90..F,RS,U200808-201012

SUPER RED 5,3P0

main87915-12070-D3iKSP90,NCP9#,SCP90..F,ILL200808-201011

DARK RED MC.,3Q8

main87915-12070-D4iKSP90,NCP95,SCP90..F200908-201012

ROSE ME.OP.,3P3

main87915-12070-E1iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

main87915-12070-F1iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

main87915-12070-F2iKSP90,NCP95,SCP90..F200902-201008

SILKY GOLD M.M.,5A7

main87915-12070-G1iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

main87915-12070-H1iKSP90,NCP9#,SCP90..F,U200708-200808

TURQUOISE ME.,777

main87915-12070-H2iKSP90,NCP95,SCP90..F200902-201008

FROSTY GREEN MC.,781

main87915-12070-J2iKSP90,NCP9#,SCP90..F,U200808-200908

DK.BLUE M.M.,8P4

main87915-12070-J3iKSP90,NCP9#,SCP90..F,RS,U200708-200809

BLUE M.M.,8T0

main87915-12070-J4iNCP9#,SCP90..ILL200808-201012

GRAYISH BLUE M.M.,8T1

main87915-12070-K1iKSP90,NCP9#,SCP90..F,U200808-201011

LT.PURPLE M.M.,9AE

main87915-12090-A1iKSP90,NCP9#,SCP90..F,ILL,U200708-200808

WHITE PEARL CS.,070

main87915-12090-K0iKSP90,NCP9#,SCP90..F,U200708-200808

LT.PURPLE M.M.,9AE

main87915-52030iKSP90..B200501-200708

main87915-52060-A0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

WHITE,068

sub87915-52080

main87915-52060-B0iKSP90,NCP9#,SCP90..F,U,X200501-200708

SILVER M.M.,1E7

sub87915-52080

main87915-52060-B1iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

MEDIUM SILVER ME.,1F8

sub87915-52080

main87915-52060-B7iNCP91..RS200701-200708

DK.GRAY M.M.,1F6

sub87915-52080

main87915-52060-C0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

BLACK MC.,209

sub87915-52080

main87915-52060-D0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

SUPER RED 5,3P0

sub87915-52080

main87915-52060-D2iKSP90,NCP95,SCP90..ILL200512-200708

DARK RED MC.,3Q8

sub87915-52080

main87915-52060-D3iKSP90,NCP9#,SCP90..F,U,X200508-200708

ROSE ME.OP.,3P3

sub87915-52080

main87915-52060-E0iKSP90,NCP9#,SCP90..F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub87915-52080

main87915-52060-E1iKSP90,NCP9#,SCP90..F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub87915-52080

main87915-52060-G0iKSP90,NCP95,SCP90..ILL200701-200708

DK.GREEN M.M.,6S3

sub87915-52080

main87915-52060-G1iKSP90,NCP9#,SCP90..F,RS,U,X200501-200512

GREEN M.M.,6U1

sub87915-52080

main87915-52060-G3iKSP90,NCP9#,SCP90..F,U,X200512-200708

LT.GREEN ME.,6U0

sub87915-52080

main87915-52060-J0iKSP90,NCP9#,SCP90..F,U,X200501-200708

DK.BLUE M.M.,8P4

sub87915-52080

main87915-52060-J1iKSP90,NCP9#,SCP90..F,U,X200501-200708

LT. BLUE M.M.,8S9

sub87915-52080

main87915-52060-J2iKSP90,NCP9#,SCP90..F,RS,U,X200512-200708

BLUE M.M.,8T0

sub87915-52080

main87915-52060-J3iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

sub87915-52080

main87915-52060-K0iKSP90,NCP9#,SCP90..F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub87915-52080

main87915-52090iKSP90..B200808-201012

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52610iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

main87940-52890supersedes 87940-52A10iKSP90,NCP9#,SCP90..F,ILL,RS,U200708-200809

87945COVER, OUTER MIRROR, LH

main87945-12070-A0iKSP90,NCP9#,SCP90..F,RS,U201008-201012

main87945-12070-A1iKSP90,NCP9#,SCP90..F,ILL,U200808-201012

WHITE PEARL CS.,070

main87945-12070-A2iKSP90,NCP9#,SCP90..F,RS,U200708-200809

WHITE,068

main87945-12070-B0iKSP90..B201008-201012

SILVER ME.,1F7

main87945-12070-B1iNCP91,SCP90..RS200809-201012

GRAY ME.,1G3

main87945-12070-B3iKSP90,NCP9#,SCP90..F,U200808-201008

SILVER M.M.,1E7

main87945-12070-B4iKSP90,NCP9#,SCP90..F,ILL,RS,U200808-201012

MEDIUM SILVER ME.,1F8

main87945-12070-B5iNCP91,SCP90..RS200708-200809

DK.GRAY M.M.,1F6

main87945-12070-C0iKSP90,NCP9#,SCP90..F,RS,U200808-201012

BLACK MC.,209

main87945-12070-D2iKSP90,NCP9#,SCP90..F,RS,U200808-201012

SUPER RED 5,3P0

main87945-12070-D3iKSP90,NCP9#,SCP90..F,ILL200808-201011

DARK RED MC.,3Q8

main87945-12070-D4iKSP90,NCP95,SCP90..F200908-201012

ROSE ME.OP.,3P3

main87945-12070-E1iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

main87945-12070-F1iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

main87945-12070-F2iKSP90,NCP95,SCP90..F200902-201008

SILKY GOLD M.M.,5A7

main87945-12070-G1iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

main87945-12070-H1iKSP90,NCP9#,SCP90..F,U200808-201008

TURQUOISE ME.,777

main87945-12070-H2iKSP90,NCP95,SCP90..F200902-201008

FROSTY GREEN MC.,781

main87945-12070-J2iKSP90,NCP9#,SCP90..F,U200808-200908

DK.BLUE M.M.,8P4

main87945-12070-J3iKSP90,NCP9#,SCP90..F,RS,U200808-201012

BLUE M.M.,8T0

main87945-12070-J4iNCP9#,SCP90..ILL200708-200808

GRAYISH BLUE M.M.,8T1

main87945-12070-K1iKSP90,NCP9#,SCP90..F,U200808-201011

LT.PURPLE M.M.,9AE

main87945-12090-A1iKSP90,NCP9#,SCP90..F,ILL,U200708-200808

WHITE PEARL CS.,070

main87945-12090-K0iKSP90,NCP9#,SCP90..F,U200708-200808

LT.PURPLE M.M.,9AE

main87945-52050iKSP90..B200501-200708

main87945-52060-A0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

WHITE,068

sub87945-52080

main87945-52060-B0iKSP90,NCP9#,SCP90..F,U,X200501-200708

SILVER M.M.,1E7

sub87945-52080

main87945-52060-B1iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

MEDIUM SILVER ME.,1F8

sub87945-52080

main87945-52060-B7iNCP91..RS200701-200708

DK.GRAY M.M.,1F6

sub87945-52080

main87945-52060-C0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

BLACK MC.,209

sub87945-52080

main87945-52060-D0iKSP90,NCP9#,SCP90..F,RS,U,X200501-200708

SUPER RED 5,3P0

sub87945-52080

main87945-52060-D2iKSP90,NCP95,SCP90..ILL200512-200708

DARK RED MC.,3Q8

sub87945-52080

main87945-52060-D3iKSP90,NCP9#,SCP90..F,U,X200508-200708

ROSE ME.OP.,3P3

sub87945-52080

main87945-52060-E0iKSP90,NCP9#,SCP90..F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub87945-52080

main87945-52060-E1iKSP90,NCP9#,SCP90..F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub87945-52080

main87945-52060-G0iKSP90,NCP95,SCP90..ILL200701-200708

DK.GREEN M.M.,6S3

sub87945-52080

main87945-52060-G1iKSP90,NCP9#,SCP90..F,RS,U,X200501-200512

GREEN M.M.,6U1

sub87945-52080

main87945-52060-G3iKSP90,NCP9#,SCP90..F,U,X200512-200708

LT.GREEN ME.,6U0

sub87945-52080

main87945-52060-J0iKSP90,NCP9#,SCP90..F,U,X200501-200708

DK.BLUE M.M.,8P4

sub87945-52080

main87945-52060-J1iKSP90,NCP9#,SCP90..F,U,X200501-200708

LT. BLUE M.M.,8S9

sub87945-52080

main87945-52060-J2iKSP90,NCP9#,SCP90..F,RS,U,X200512-200708

BLUE M.M.,8T0

sub87945-52080

main87945-52060-J3iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

sub87945-52080

main87945-52060-K0iKSP90,NCP9#,SCP90..F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub87945-52080

main87945-52090iKSP90..B200708-200808

87946RETRACTOR, OUTER MIRROR, RH

main87946-52630iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

sub87946-52631

main87946-52A10iKSP90,NCP9#,SCP90..F,ILL,RS,U200708-200809

sub87946-52A11

87966RETRACTOR, OUTER MIRROR, LH

main87966-52610iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200708

sub87966-52611

main87966-52890iKSP90,NCP9#,SCP90..F,ILL,RS,U200708-200809

sub87966-52891

9017906208

main90179-06208

10 parts on this diagram · 2 diagrams in section
