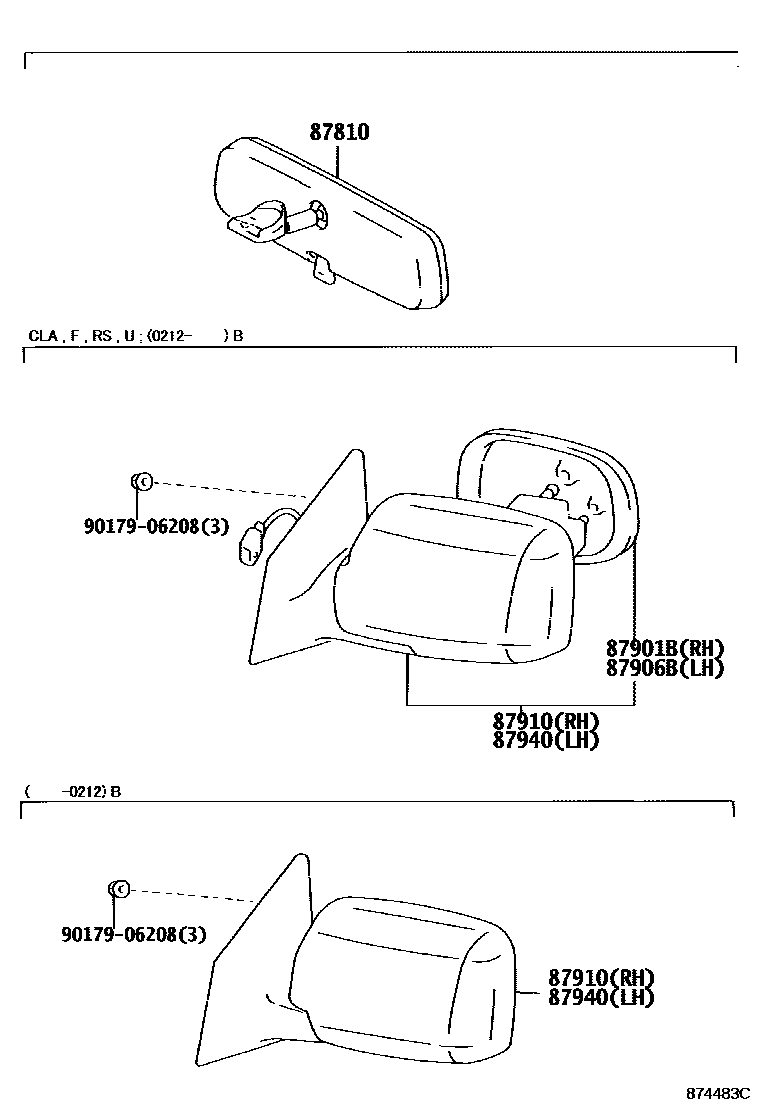

Toyota VITZ — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030iNCP1#,SCP10199901-200112

main87810-52040iNCP1#,SCP10200208-200212

sub87810-52041

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A820iNCP10..RS,U;NCP15,SCP10..F200112-200212

main87931-2D280iNCP1#,SCP1#200308

main87931-52110iNCP1#,SCP10..CLA,RS,U200112-200212

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E820iNCP10,15,SCP10..F,RS199901-200112

main87961-2D320iNCP1#,SCP1#200308

main87961-52090iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200308

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52070iSCP10..B199901-200004

main87910-52071iSCP10..B200004-200112

main87910-52100-A0iNCP15,SCP10..F199901-200001

SUPER WHITE 2,040

main87910-52100-B0iNCP15,SCP10..F199901-200001

SILVER ME,199

main87910-52100-D0iSCP10..F199901-199908

SUPER RED 2,3E5

main87910-52100-D1iNCP15,SCP10..F199901-200001

PALE ROSE ME. OP,3N7

main87910-52100-D2iNCP15,SCP10..F199908-200001

SUPER RED 5,3P0

main87910-52100-F0iNCP15,SCP10..F199901-200001

YELLOW M.M,580

main87910-52100-H0iNCP15,SCP10..F199901-200001

LT. AQUA ME,764

main87910-52100-J0iNCP15,SCP10..F199901-200001

DK. BLUE MC.,8K8

main87910-52101-A0iNCP15,SCP10..F200001-200101

SUPER WHITE 2,040

main87910-52101-A1iSCP13..U;NCP1#,SCP10..B,F,RS200212-200308

main87910-52101-A2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87910-52101-B0iNCP10..U;NCP15,SCP10..F200112-200212

main87910-52101-B1iNCP10..RS200112-200210

main87910-52101-B2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87910-52101-C0iSCP13..U;NCP1#,SCP10..B,F,RS200212-200308

main87910-52101-D1iNCP10..U;NCP15,SCP10..F200112-200212

main87910-52101-D2iNCP10,15,SCP10..F,RS200001-200112

main87910-52101-D4iSCP10..4HC200212-200308

main87910-52101-F0iNCP10,15,SCP10..F,RS200001-200112

main87910-52101-F2iNCP10..U;NCP15,SCP10..F200112-200212

main87910-52101-F3iSCP13..U;NCP15,SCP10..B,F200212-200308

main87910-52101-G0iSCP10..4HC200212-200308

main87910-52101-G1iNCP15,SCP10..F200101-200112

main87910-52101-H0iNCP15,SCP10..F200001-200101

LT.AQUA ME.,764

main87910-52101-J0iNCP15,SCP10..F200001-200101

DK.BLUE MC.,8K8

main87910-52101-J1iNCP10..RS,U;NCP15,SCP10..F200112-200212

main87910-52101-J2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87910-52101-J3iNCP10..U;NCP15,SCP10..F200112-200212

main87910-52101-J4iNCP10,13;SCP10..4HC200212-200308

main87910-52101-J5iSCP13..U;NCP15,SCP10..B,F200212-200308

main87910-52110-A1iNCP1#,SCP10..U199901-200001

SUPER WHITE 2,040

main87910-52110-B0iNCP1#,SCP10..CLA,U199901-200001

SILVER ME,199

main87910-52110-C0iNCP10,SCP10..U199901-200001

BLACK MC.,209

main87910-52110-D0iSCP10..U199901-199908

SUPER RED 2,3E5

main87910-52110-D1iNCP1#,SCP10..U199901-200001

PALE ROSE ME. OP,3N7

main87910-52110-D2iNCP1#,SCP10..U199908-200001

SUPER RED 5,3P0

main87910-52110-D3iNCP1#..CLA199909-200001

RED M.M.,3K4

main87910-52110-F0iNCP1#,SCP10..U199901-200001

YELLOW M.M,580

main87910-52110-G0iNCP1#..CLA199909-200001

DK.GREEN MC.,6R4

main87910-52110-H0iNCP1#,SCP10..U199901-200001

LT. AQUA ME,764

main87910-52110-J0iNCP1#,SCP10..CLA,U199901-200001

DK. BLUE MC.,8K8

main87910-52111-A1iNCP10,15,SCP10..U200001-200101

SUPER WHITE 2,040

main87910-52111-A2iNCP10,13..RS200010-200101

main87910-52111-A3iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

main87910-52111-B0iNCP10,15,SCP10..CLA,U200001-200112

main87910-52111-B1iNCP15,SCP10..F200105-200112

main87910-52111-B2iNCP15,SCP1#..5D..(CLA,F,U)200212-200308

main87910-52111-C0iNCP1#,SCP10..RS,U200112-200212

main87910-52111-D1iNCP15,SCP1#..5D..(F,U)200212-200308

main87910-52111-D2iNCP1#,SCP10..RS,U200001-200112

main87910-52111-D3iNCP10,15..CLA200001-200101

RED MM,3K4

main87910-52111-D4iNCP10,15..CLA200112-200212

main87910-52111-F0iNCP1#,SCP10..RS,U200001-200112

main87910-52111-F2iNCP10,15,SCP10..U200112-200212

main87910-52111-F3iNCP15,SCP1#..5D..(F,U)200212-200308

main87910-52111-G0iNCP10,15..CLA200112-200212

main87910-52111-G1iNCP10,15,SCP10..U200101-200112

main87910-52111-H0iNCP10,15,SCP10..U200001-200101

LT.AQUA ME.,764

main87910-52111-J0iNCP10,15,SCP10..CLA,U200001-200101

DK.BLUE MC.,8K8

main87910-52111-J1iNCP15,SCP10..F200105-200112

main87910-52111-J2iNCP15,SCP1#..5D..(CLA,F,U)200212-200308

main87910-52111-J3iNCP10,15,SCP10..U200112-200212

main87910-52111-J4iNCP10,13;SCP10..4HC200212-200308

main87910-52111-J5iNCP15,SCP1#..5D..(F,U)200212-200308

main87910-52450iSCP13..U;NCP1#,SCP10..B,F,RS200308-200501

main87910-52570iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200308-200501

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52050iSCP10..B199901-200004

main87940-52051iSCP10..B200004-200112

main87940-52080-A0iNCP15,SCP10..F199901-200001

SUPER WHITE 2,040

main87940-52080-B0iNCP15,SCP10..F199901-200001

SILVER ME,199

main87940-52080-D0iSCP10..F199901-199908

SUPER RED 2,3E5

main87940-52080-D1iNCP15,SCP10..F199901-200001

PALE ROSE ME. OP,3N7

main87940-52080-D2iNCP15,SCP10..F199908-200001

SUPER RED 5,3P0

main87940-52080-F0iNCP15,SCP10..F199901-200001

YELLOW M.M,580

main87940-52080-H0iNCP15,SCP10..F199901-200001

LT. AQUA ME,764

main87940-52080-J0iNCP15,SCP10..F199901-200001

DK. BLUE MC.,8K8

main87940-52081-A0iNCP15,SCP10..F200001-200101

SUPER WHITE 2,040

main87940-52081-A1iNCP10,15,SCP10..F,RS200101-200112

main87940-52081-A2iNCP10..U;NCP15,SCP10..F200112-200212

main87940-52081-B0iNCP15,SCP10..F200001-200112

main87940-52081-B1iNCP10..RS200010-200112

main87940-52081-B2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87940-52081-C0iNCP10..RS,U;NCP15,SCP10..F200112-200212

main87940-52081-D1iNCP10..U;NCP15,SCP10..F200112-200212

main87940-52081-D2iSCP13..U;NCP1#,SCP10..B,F,RS200212-200308

main87940-52081-D4iSCP10..4HC200212-200308

main87940-52081-F0iNCP10,15,SCP10..F,RS200001-200112

main87940-52081-F2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87940-52081-F3iSCP13..U;NCP15,SCP10..B,F200212-200308

main87940-52081-G0iSCP10..4HC200212-200308

main87940-52081-G1iNCP10..U;NCP15,SCP10..F200112-200212

main87940-52081-H0iNCP15,SCP10..F200001-200101

LT.AQUA ME.,764

main87940-52081-J0iNCP15,SCP10..F200001-200101

DK.BLUE MC.,8K8

main87940-52081-J1iNCP10..RS,U;NCP15,SCP10..F200112-200212

main87940-52081-J2iSCP13..U;NCP15,SCP10..B,F200212-200308

main87940-52081-J3iNCP10..U;NCP15,SCP10..F200112-200212

main87940-52081-J4iNCP10,13;SCP10..4HC200212-200308

main87940-52081-J5iSCP13..U;NCP15,SCP10..B,F200212-200308

main87940-52090-A0iNCP1#,SCP10..U199901-200001

SUPER WHITE 2,040

main87940-52090-B0iNCP1#,SCP10..CLA,U199901-200001

SILVER ME,199

main87940-52090-C0iNCP10,SCP10..U199901-200001

BLACK MC.,209

main87940-52090-D0iSCP10..U199901-199908

SUPER RED 2,3E5

main87940-52090-D1iNCP1#,SCP10..U199901-200001

PALE ROSE ME. OP,3N7

main87940-52090-D2iNCP1#,SCP10..U199908-200001

SUPER RED 5,3P0

main87940-52090-D3iNCP1#..CLA199909-200001

RED M.M.,3K4

main87940-52090-F0iNCP1#,SCP10..U199901-200001

YELLOW M.M,580

main87940-52090-G0iNCP1#..CLA199909-200001

DK.GREEN MC.,6R4

main87940-52090-H0iNCP1#,SCP10..U199901-200001

LT. AQUA ME,764

main87940-52090-J0iNCP1#,SCP10..CLA,U199901-200001

DK. BLUE MC.,8K8

main87940-52091-A0iNCP10,15,SCP10..U200001-200101

SUPER WHITE 2,040

main87940-52091-A1iNCP1#,SCP10..RS,U200112-200212

main87940-52091-A2iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

main87940-52091-B0iNCP10,15,SCP10..CLA,U200112-200212

main87940-52091-B1iNCP10,15,SCP10..CLA,U200112-200212

main87940-52091-B2iNCP15,SCP1#..5D..(CLA,F,U)200212-200308

main87940-52091-C0iNCP10,13,SCP13..RS,U;NCP15,SCP10..5D..(F,U)200212-200308

main87940-52091-D1iNCP15,SCP1#..5D..(F,U)200212-200308

main87940-52091-D2iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

main87940-52091-D3iNCP10,15..CLA200001-200101

RED MM,3K4

main87940-52091-D4iNCP10,15..CLA200101-200112

main87940-52091-F0iNCP1#,SCP10..RS,U200001-200112

main87940-52091-F2iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

main87940-52091-F3iNCP15,SCP1#..5D..(F,U)200212-200308

main87940-52091-G0iNCP10,15..CLA200001-200112

main87940-52091-G1iNCP10,15,SCP10..U200112-200212

main87940-52091-H0iNCP10,15,SCP10..U200001-200101

LT.AQUA ME.,764

main87940-52091-J0iNCP10,15,SCP10..CLA,U200001-200101

DK.BLUE MC.,8K8

main87940-52091-J1iNCP10,13..RS200010-200112

main87940-52091-J2iNCP10,15,SCP10..CLA,U200112-200212

main87940-52091-J3iNCP15,SCP10..F200108-200112

main87940-52091-J4iNCP10,13;SCP10..4HC200212-200308

main87940-52091-J5iNCP15,SCP1#..5D..(F,U)200212-200308

main87940-52430iSCP13..U;NCP1#,SCP10..B,F,RS200308-200501

main87940-52540iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200308-200501

9017906208

main90179-06208

6 parts on this diagram · 2 diagrams in section
