Toyota VITZ — METER

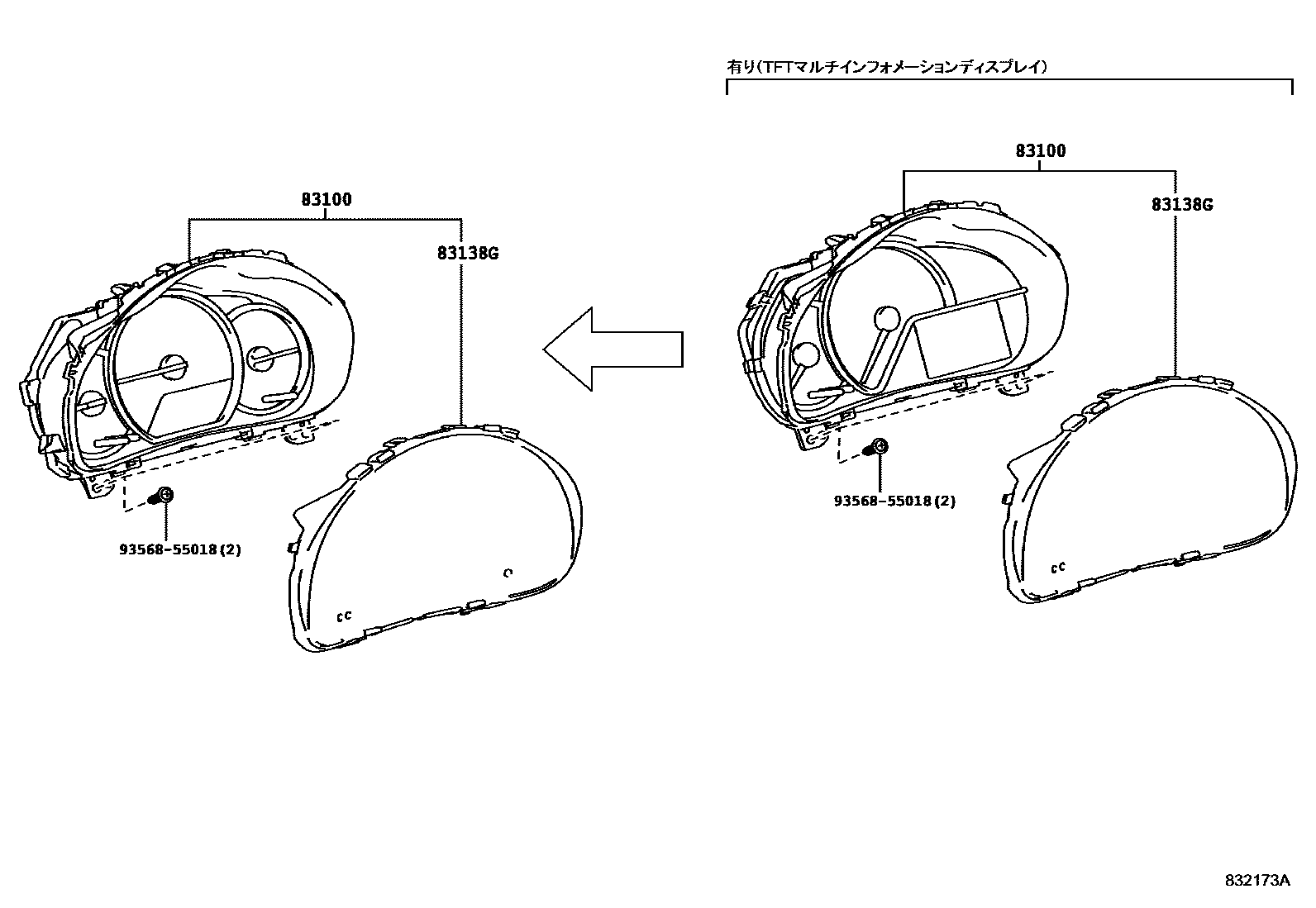

83100METER ASSY, COMBINATION

main83800-5CB30supersedes 83800-5CB20i201012-201107

main83800-5CB31supersedes 83800-5CB21i201108-201110

main83800-5CB32supersedes 83800-5CB22i201110-201205

main83800-5CB33supersedes 83800-5CB23i201205-201404

main83800-5CB40i201012-201105

main83800-5CB41i201106-201107

main83800-5CB42i201108-201110

main83800-5CB43i201110-201205

main83800-5CB44i201205-201404

main83800-5CP20i201404-201507

main83800-5CP30i201404-201507

main83800-5CP40i201404-201507

main83800-5CR80i201806-201904

main83800-5CR81i201905

main83800-5CR90i201806-201904

main83800-5CR91i201905

main83800-5CS40i201507-201701

main83800-5CS41i201804-201806

main83800-5CS50i201701-201806

main83800-5CS60i201701-201806

main83800-5CW00i201701-201806

sub83800-5CW01

main83800-5CW90i201806-201904

main83800-5CW91i201905

main83800-5CX00i201806-201901

main83800-5CX01i201902-201904

main83800-5CX02i201905

main83800-5CD70i201309-201402

main83800-5CD80i201404-201505

main83800-5CL10i201505-201701

main83800-5CP70i201709-201806

main83800-5CW70supersedes 83800-5CX91i201903-201904

main83800-5CW71supersedes 83800-5CX91i201905

main83800-5CX30i201806-201904

main83800-5CX31i201905

main83800-5CX40i201806-201904

main83800-5CX41i201905

main83800-5CX50i201806-201901

main83800-5CX51i201902-201904

main83800-5CX52i201905

main83800-5CY00i201806-201904

main83800-5CY01i201905

main83800-5CY10supersedes 83800-5CX80i201806-201904

main83800-5CY11supersedes 83800-5CX81i201905

83138GGLASS, COMBINATION METER

main83852-5CB20i201012-201404

main83852-5CP20i201701

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section
