Toyota VITZ — METER

0001 1 0002 1 0003 1

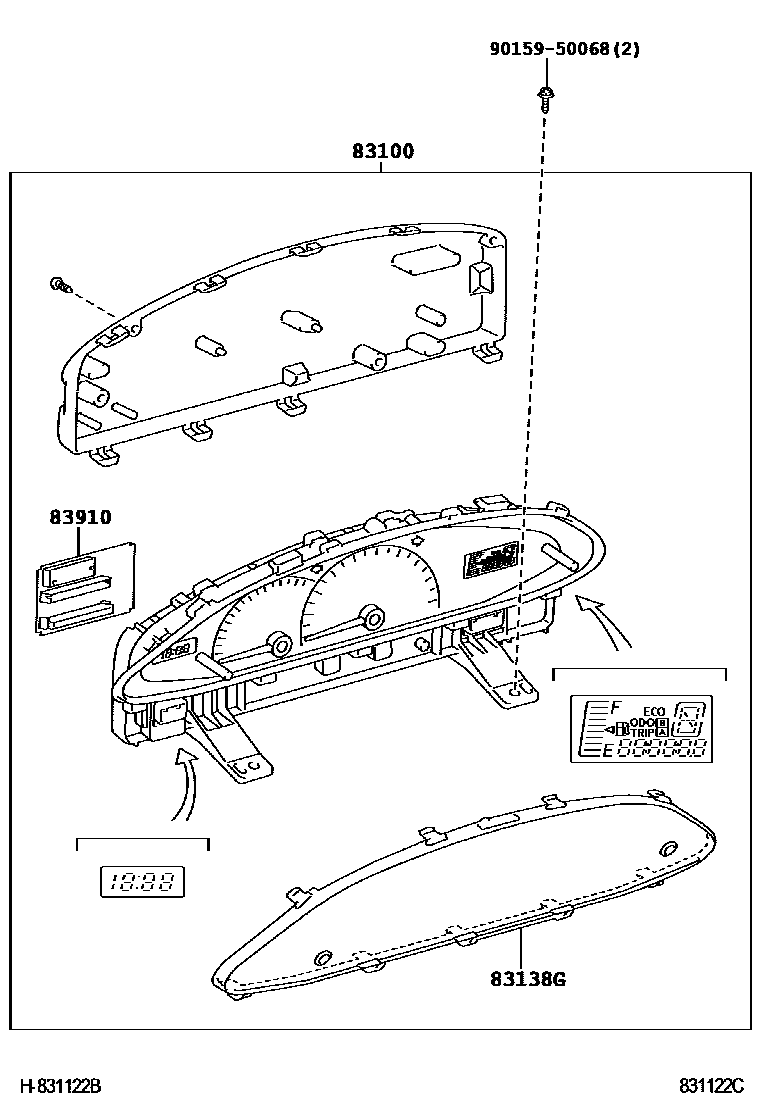

83100METER ASSY, COMBINATION

main83800-52A10iKSP90,SCP90..B,F200501-200512

main83800-52A11iKSP90,SCP90..B,F200512-200708

main83800-52A20iNCP95..F200501-200512

main83800-52A21iNCP95..F200512-200708

main83800-52A30iNCP91,SCP90..U,X200501-200512

main83800-52A31iNCP91,SCP90..U,X200512-200708

main83800-52A40iNCP95..U200501-200512

main83800-52A41iNCP95..U200512-200708

main83800-52A50iKSP90,NCP91,SCP90..CVFC..(ILL,RS)200501-200708

main83800-52A60iNCP91..5F200501-200708

main83800-52K90iNCP95..ILL200512-200708

main83800-52N40iKSP90,NCP95,SCP90..B,F200708-200808

main83800-52N41iKSP90,NCP95,SCP90..B,F200808-201012

main83800-52N50iKSP90,NCP9#,SCP90..ILL,U200708-200808

main83800-52N51iKSP90,NCP9#,SCP90..ILL,RS,U200808-201012

main83800-52A00iKSP90200504-200512

main83800-52A01iKSP90..B,F200512-200708

main83800-52N30iKSP90..B,F200708-200808

main83800-52N31iKSP90..B,F200808-201008

main83800-52X60iKSP90,NCP95,SCP90..F200902-201008

83138GGLASS, COMBINATION METER

main83852-52A00iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

main83852-52A30iKSP90,NCP9#,SCP90..ILL,RS,U,X200501-200708

83910CLOCK ASSY

main83910-52080iKSP90,NCP9#,SCP90..ILL,RS,U,X200501-200708

main83910-52090iKSP90,NCP95,SCP90..B,F200501-200708

main83910-52130iKSP90,NCP95,SCP90..B,F200708-200808

main83910-52100iKSP90,NCP95,SCP90..F200902-201008

9015950068

main90159-50068

4 parts on this diagram · 3 diagrams in section
