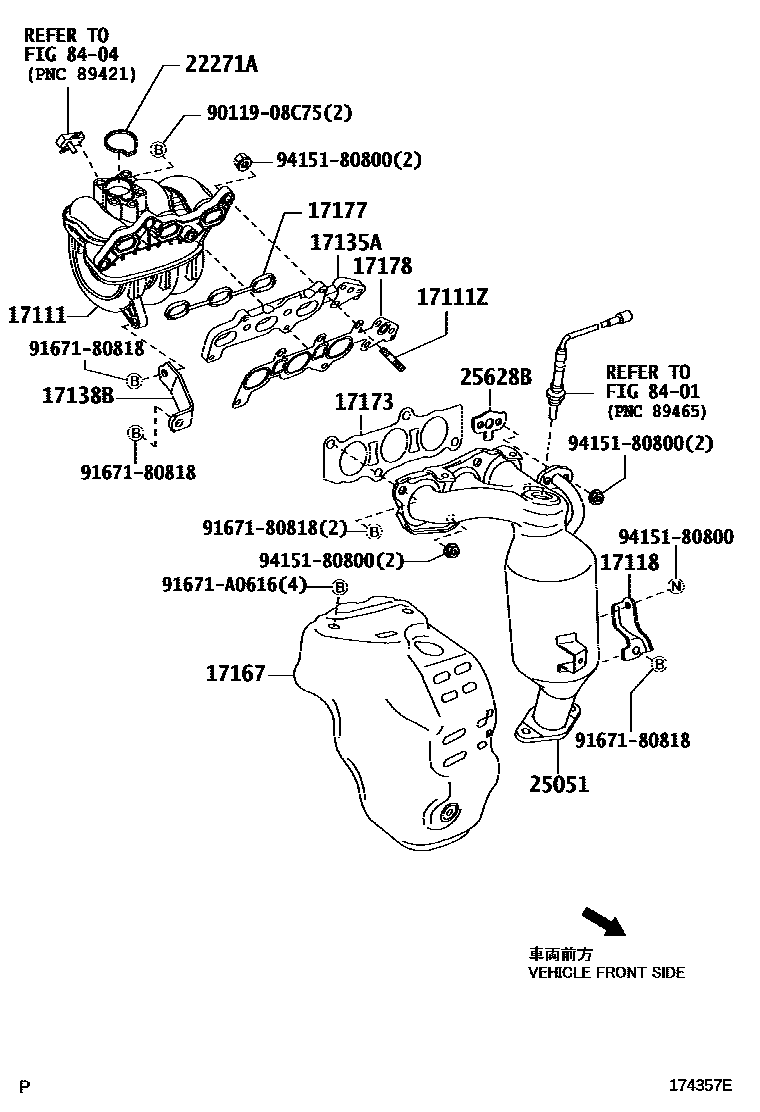

Toyota VITZ — MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25628BGASKET, EGR INLET
8401SWITCH & RELAY & COMPUTER
8404ELECTRONIC FUEL INJECTION SYSTEM
9011908C75
main90119-08C75
9167180818
main91671-80818
91671A0616
main91671-A0616
9415180800
main94151-80800
18 parts on this diagram · 4 diagrams in section
MANIFOLD for Toyota VITZ
This section contains 41 genuine Toyota parts for the MANIFOLD system of the Toyota VITZ. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD), STAY, MANIFOLD, STAY, MANIFOLD, NO.2.
