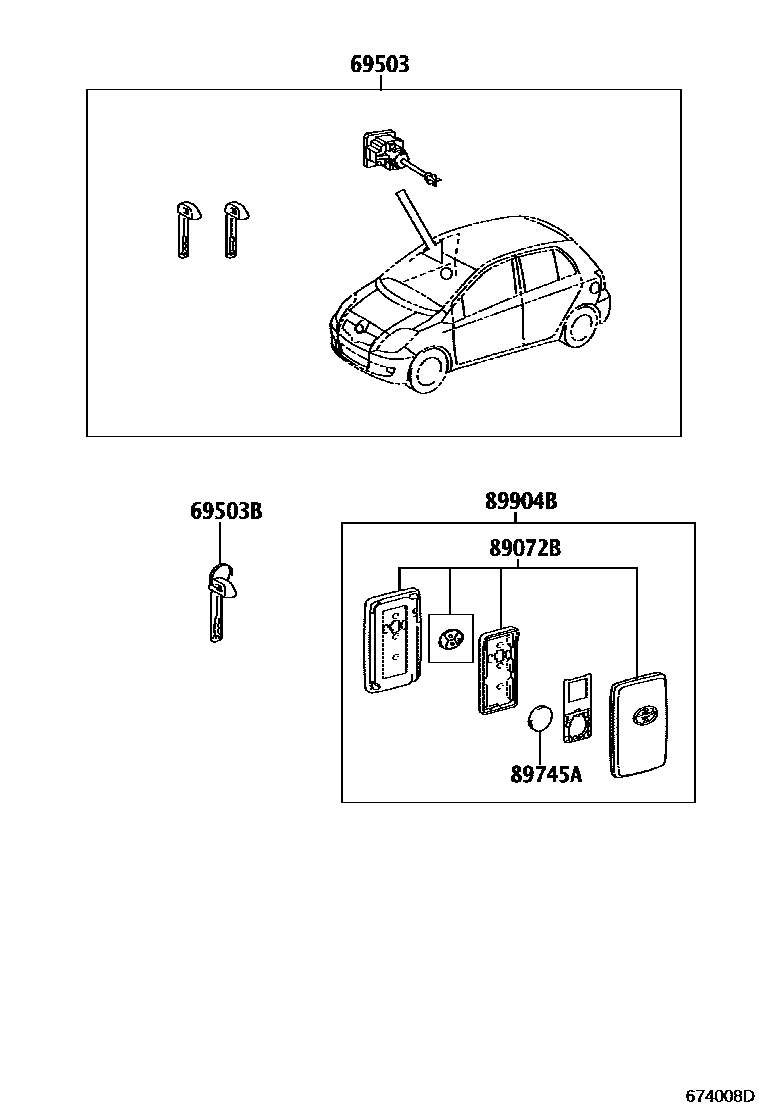

Toyota VITZ — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-52F30supersedes 69005-5C040i200808-201007

main69005-5C160supersedes 69005-5C050i200501-200708

69503BKEY, CUT

main69515-52110×2i200501-200708

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12450i200501-200708

89745ABATTERY, TRANSMITTER

main89745-52020i200808-201007

main89745-71010i201007-201012

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-52011i200911-201007

main89904-52060i200808-200910

5 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota VITZ

This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota VITZ. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH.
