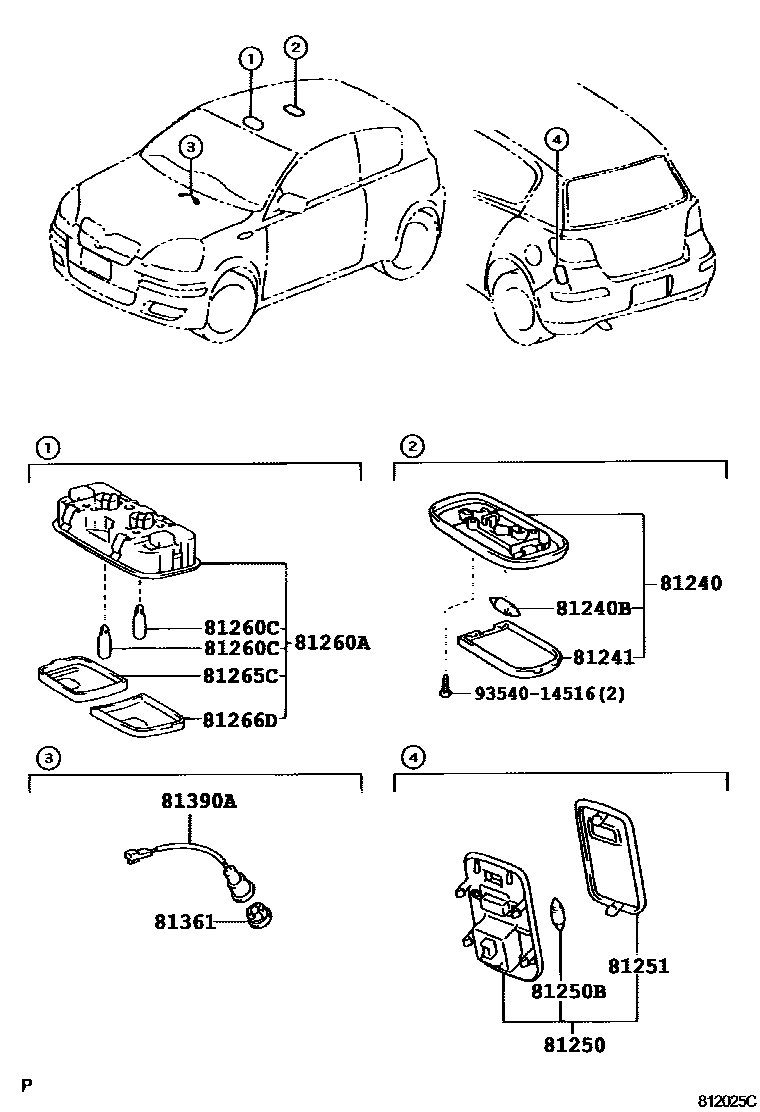

Toyota VITZ — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM9#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,7#
main81240-12060-P0iNCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501
LT.GRAY,TRIM96,98
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
DK.CHARCOAL,TRIM0#
main81250-12030-B5iNCP15..CLA,U;NCP15,SCP10..5F..F;NCP10,13,SCP13..CLA,RS;NCP15,SCP10..3D..4FC..F200212-200501
DK.GRAY,TRIM0#,96,98
DK.GRAY,TRIM9#
DK.GRAY,TRIM1#
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
IVORY,TRIM0#
LT.GRAY,TRIM96,98
LT.GRAY,TRIM9#
81260CBULB(FOR MAP LAMP)
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81361LENS, STEP LAMP
81390AHOLDER ASSY, SPOT LAMP
9354014516
main93540-14516
13 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota VITZ
This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota VITZ. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
