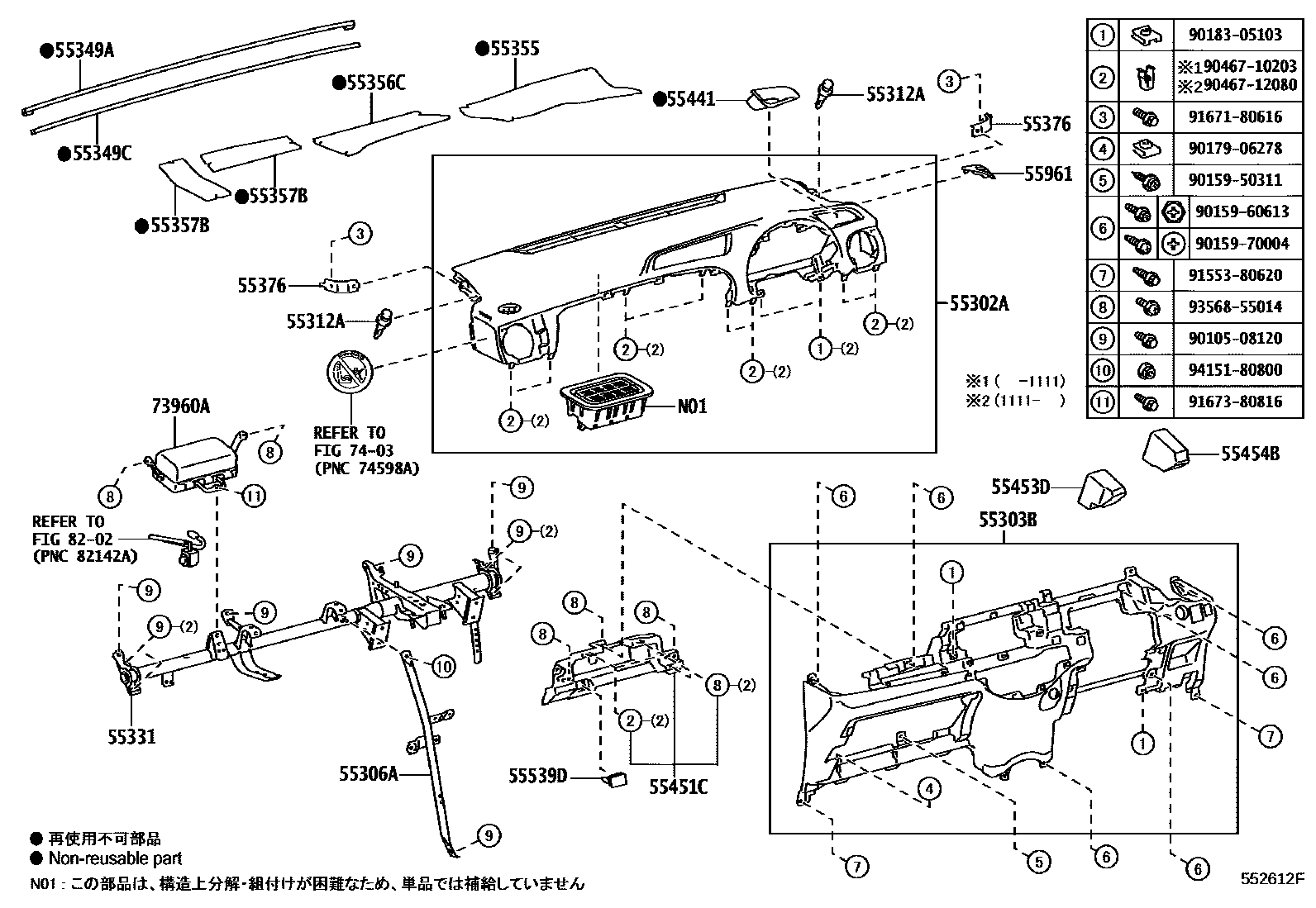

Toyota VITZ — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-52140-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
main55302-52190-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..(RS,U)..CBU; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-52240-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
main55303-52320-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-52380iKSP130,NCP131,NHP130,NSP13#..(GRS,JEWL,U)..CBU; KSP130,NHP130,NSP13#..F..CBU201701-201810
main55306-52381supersedes 55306-52361iKSP130,NCP131,NHP130,NSP13#..(GRS,JEWL,U)..CBU; KSP130,NHP130,NSP13#..F..CBU201810
55312ACLIP, INSTRUMENT PANEL
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55441BOX, INSTRUMENT PANEL
main55441-52170-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
BLACK,TRIM0#,2#,5#
main55441-52220-C0supersedes 55441-52270-C0iKSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201404-201507
BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
55451CBOX, INSTRUMENT PANEL, NO.1
main55451-52200-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
55539COVER, SPARE SWITCH HOLE
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,3#
55539DCOVER, SPARE SWITCH HOLE
main55539-52070-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-52020-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
main55961-52050-C0iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130,NSP13#..U..CBU201701
BLACK,TRIM0#,2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8202WIRING & CLAMP
9010508120
main90105-08120
9015950311
main90159-50311
9015960613
main90159-60613
9015970004
main90159-70004
9017906278
main90179-06278
9018305103
main90183-05103
9046710203
main90467-10203
9046712080
main90467-12080
9155380620
main91553-80620
9167180616
main91671-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
34 parts on this diagram · 8 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota VITZ
This section contains 67 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota VITZ. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1.
