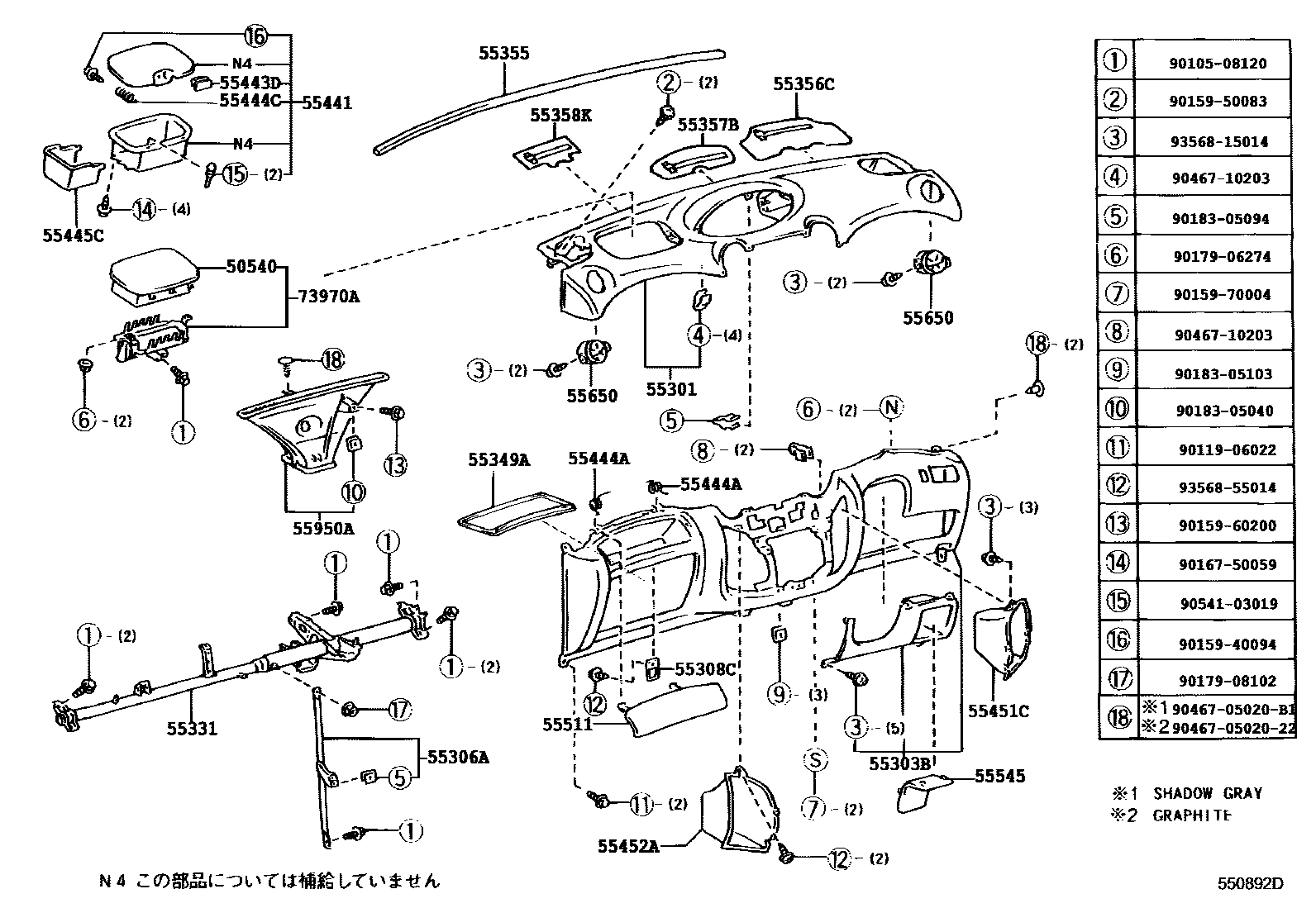

Toyota VITZ — INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
55301PANEL SUB-ASSY, INSTRUMENT
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
DK.GRAY,TRIM0#,9#
DK.CHARCOAL,TRIM0#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM9#
MD.GRAY,TRIM9#
DK. GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
IVORY,TRIM0#
MD. GRAY,TRIM9#
DK. GRAY,TRIM9#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55441BOX, INSTRUMENT PANEL
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
55443DKNOB, INSTRUMENT PANEL BOX DOOR
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
55444ASPRING, INSTRUMENT PANEL BOX
55444CSPRING, INSTRUMENT PANEL BOX
55445CPLATE, INSTRUMENT PANEL BOX
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
55451CBOX, INSTRUMENT PANEL, NO.1
SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
main55451-52050-B1iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U); NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501
DK.GRAY,TRIM0#,96,98; DK.GRAY,TRIM9#
DK.CHARCOAL,TRIM0#
55452ABOX, INSTRUMENT PANEL, NO.2
SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
DK.GRAY,TRIM96,98
DK.CHARCOAL,TRIM0#
55511DOOR, GLOVE COMPARTMENT
MD.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
MIST GREEN,TRIM7#
IVORY,TRIM0#
main55501-52050-B0iNCP15,SCP10..B,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F; NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501
MD.GRAY,TRIM9#; MD.GRAY,TRIM96,98
MD.GRAY,TRIM1#
DK.GRAY,TRIM9#
55545COVER, FUSE BOX OPENING
IVORY,TRIM0#
MD.GRAY,TRIM1#
DK.GRAY,TRIM9#
SHADOW GRAY,TRIM9#
main55545-52010-B5iNCP15,SCP10..5D..4FC..F; NCP15,SCP10..B,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F200212-200501
MD.GRAY,TRIM9#; MD.GRAY,TRIM96,98
MIST GREEN,TRIM7#
IVORY,TRIM0#
DK.GRAY,TRIM9#
MD.GRAY,TRIM9#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
main55650-52080-B0×2iNCP15,SCP10..B,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F; NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501
DK.GRAY,TRIM0#,9#; DK.GRAY,TRIM9#
DK.CHARCOAL,TRIM0#
LAVENDER EDITION *(A),DK.GRAY,TRIM96,98
DK.GRAY,TRIM9#
55950ANOZZLE ASSY, DEFROSTER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#
main73970-52130-B0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U); NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501
DK.GRAY,TRIM0#,96,98; DK.GRAY,TRIM9#
DK.CHARCOAL,TRIM0#
9010508120
main90105-08120
9011906022
main90119-06022
9015940094
main90159-40094
9015950083
main90159-50083
9015960200
main90159-60200
9015970004
main90159-70004
9016750059
main90167-50059
9017906274
main90179-06274
9017908102
main90179-08102
9018305040
main90183-05040
9018305094
main90183-05094
9018305103
main90183-05103
904670502022
main90467-0502022
9046705020B1
main90467-05020B1
9046710203
main90467-10203
9054103019
main90541-03019
9356815014
main93568-15014
9356855014
main93568-55014
41 parts on this diagram · 8 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota VITZ
This section contains 74 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota VITZ. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT.
