Toyota VITZ — IGNITION COIL & SPARK PLUG / GLOW PLUG

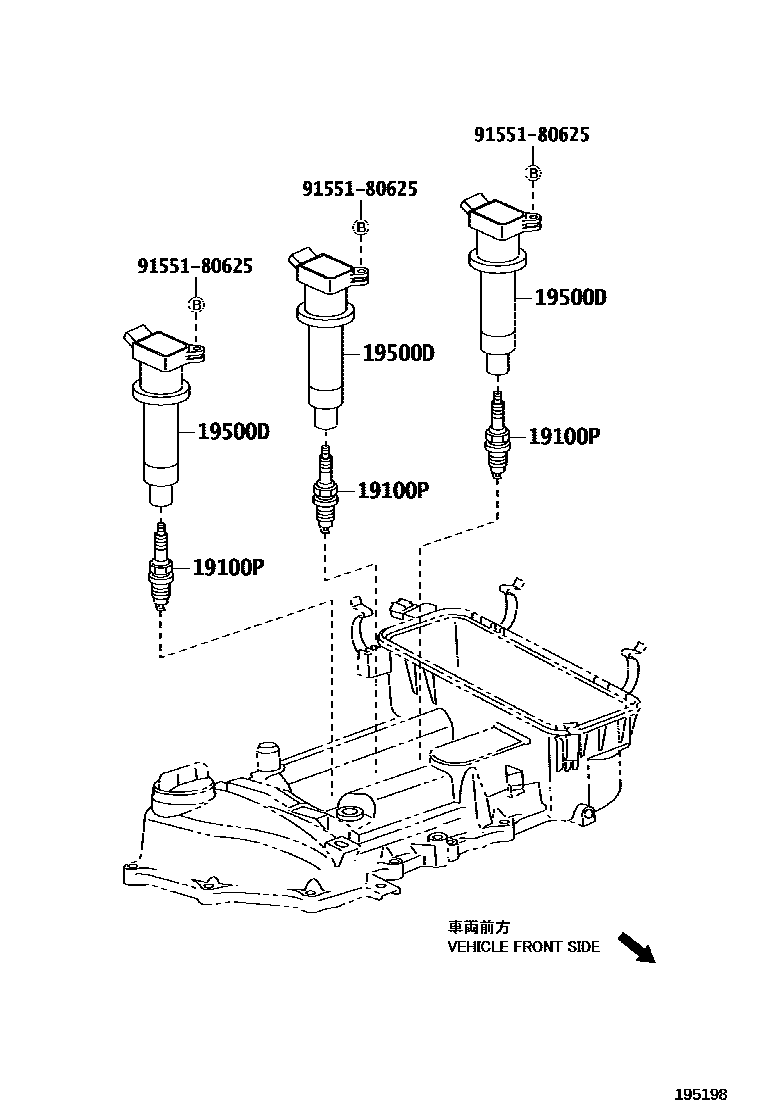

Parts diagram

19100PPLUG, SPARK

main90919-01191i201012-201111

main90919-01233i201112-201404

main90919-01243i201012-201701

main90919-01253i201012-201311

main90919-01275i201311-201701

main90919-01280i201404-201703

main90919-01284i201701

main90919-01289i201704

19500DCOIL, IGNITION, NO.1

main90919-02257i201012-201701

main90919-02260i201012-201701

main90919-02262i201012-201404

main90919-02265i201701

main90919-02270i201404-201701

main90919-W2001i201012-201404

9155180625

main91551-80625

3 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota VITZ

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota VITZ. Key components include: PLUG, SPARK, COIL, IGNITION, NO.1, CAP, PLUG.
