Toyota VITZ — HOOD LOCK & HINGE

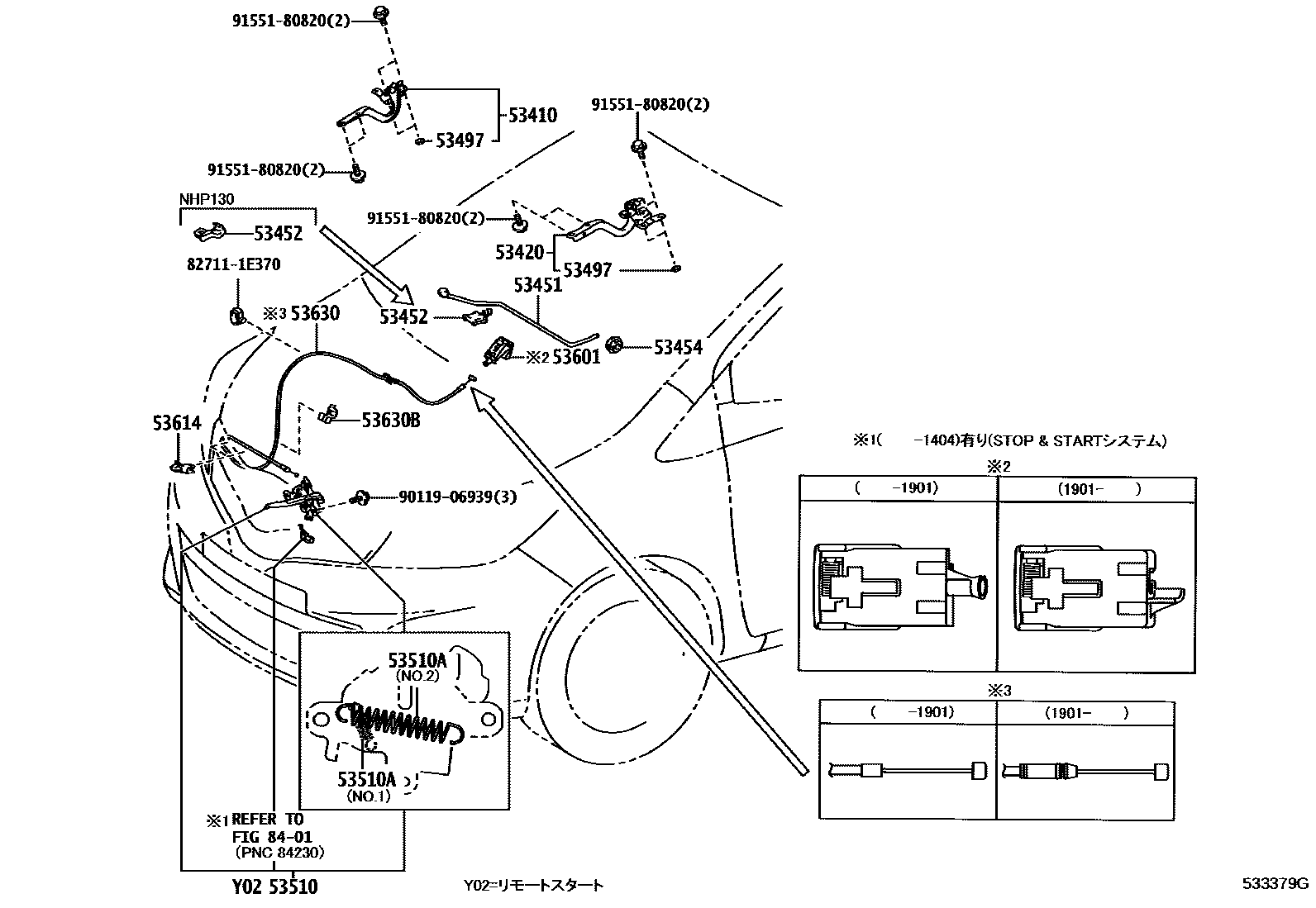

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-52320i201404-201701

53420HINGE ASSY, HOOD, LH

main53420-52330i201701

53451ROD, HOOD SUPPORT

main53440-52190i201404-201701

main53440-52260i201701

53452HOLDER, HOOD STAY

main53452-52010i201701

main53452-52100i201701

53454CLIP, HOOD SUPPORT ROD

main53454-52020i201701

53497PAD, HOOD HINGE, NO.1

main53497-10020×4i201701

main53497-42010×4i201404-201701

53510LOCK ASSY, HOOD

main53510-52541i201404-201602

main53510-52561i201404-201602

main53510-52810i201701

main53510-52820i201603-201701

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10046i201701

main90506-16077i201012-201404

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0i201901

BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#

main53601-52010-C0i201404-201612

BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

main53601-52010-C1i201709-201901

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010×3i201012-201404

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52150i201012-201404

main53630-52151i201901-201902

main53630-52152i201903

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main53614-52010i201701-201810

main90469-06005i201810

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

16 parts on this diagram · 2 diagrams in section

HOOD LOCK & HINGE for Toyota VITZ

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota VITZ. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, HOLDER, HOOD STAY, CLIP, HOOD SUPPORT ROD.
