Toyota VITZ — HEV CONTROL COMPUTER

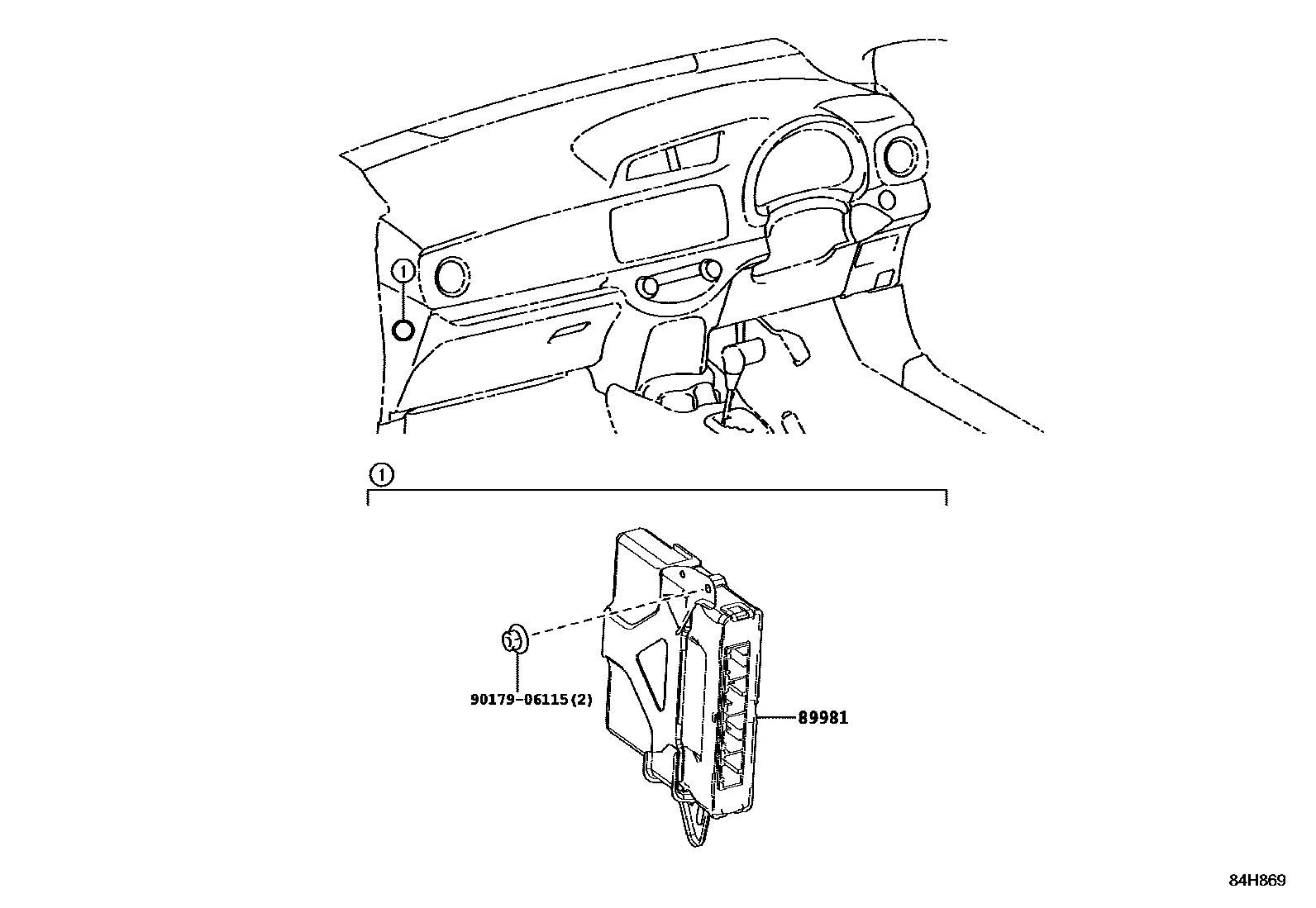

Parts diagram

89981COMPUTER, HYBRID VEHICLE CONTROL

main89980-52130supersedes 89980-52140i201701-201704

main89980-52131supersedes 89980-52141i201705-201806

main89980-52380supersedes 89980-52390i201806

9017906115

main90179-06115

2 parts on this diagram · 1 diagram in section
