Toyota VITZ — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1

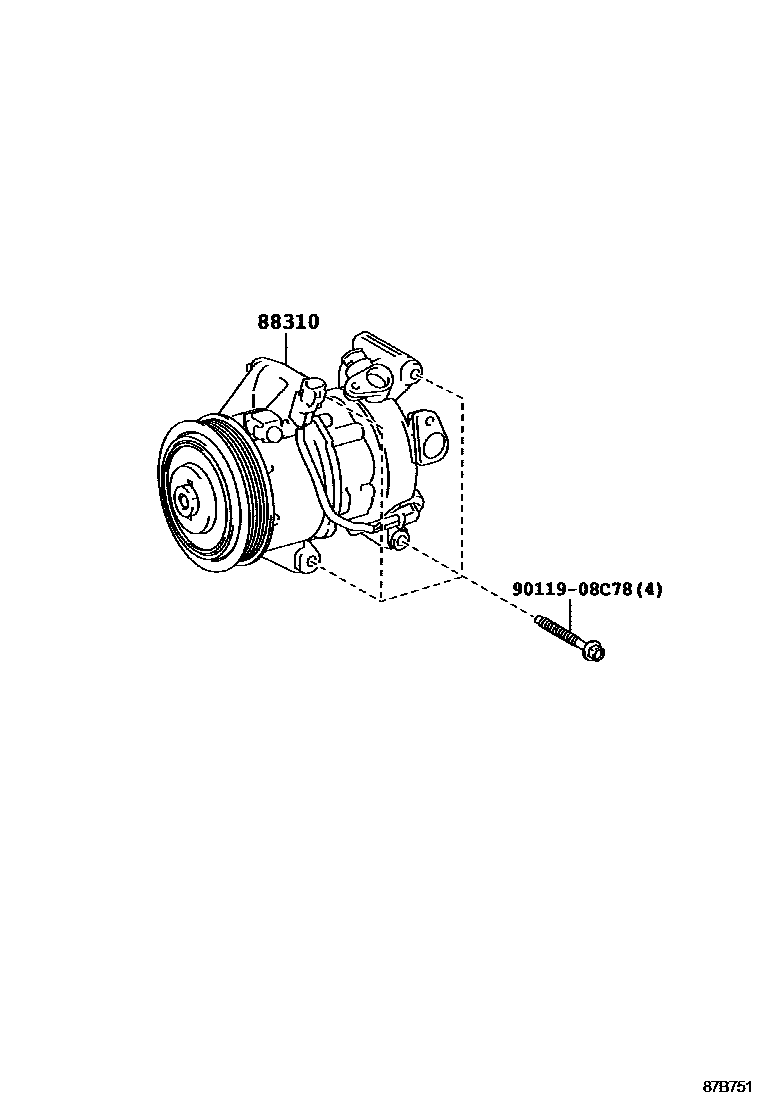

88310COMPRESSOR ASSY, W/PULLEY

main88310-52720iNCP131201012-201208

main88310-52750iNCP131201709

main88310-52780supersedes 88310-52730iNSP13#..CBU201404-201701

main88310-52760supersedes 88310-52710iKSP130..CBU201012-201404

9011908C78

main90119-08C78

2 parts on this diagram · 3 diagrams in section
