Toyota VITZ — HEATING & AIR CONDITIONING - COMPRESSOR

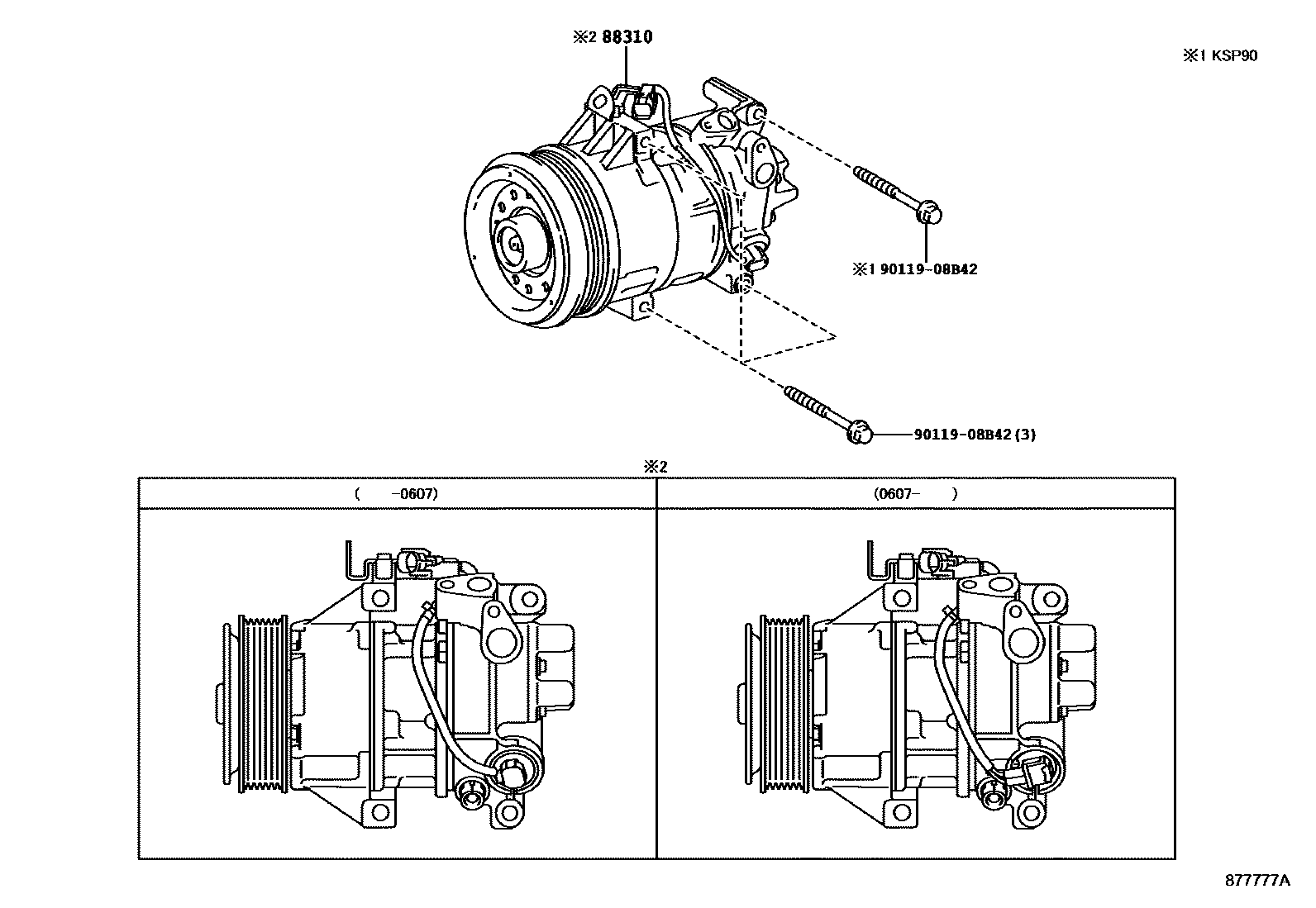

Parts diagram
88310COMPRESSOR ASSY, W/PULLEY
main88310-52510i200501-200607
sub88310-52511
sub88899-52061
main88310-52511i200607-201012
main88310-52550i200501-200607
sub88310-52551
sub88899-52061
main88310-52551i200607-201012
main88310-52590i200501-200607
sub88310-52591
sub88899-52061
main88310-52591i200607-200701
sub88310-52592
main88310-52592i200702-201012
9011908B42
main90119-08B42

2 parts on this diagram · 2 diagrams in section
