Toyota VITZ — HEADLAMP

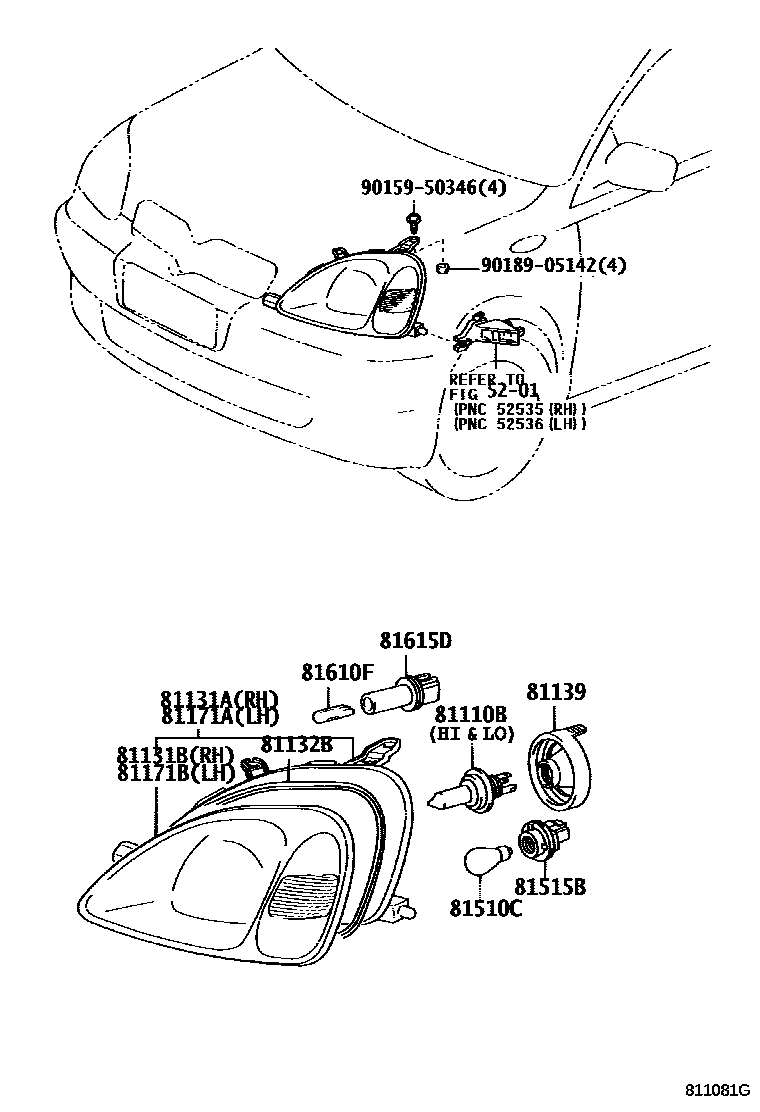

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055×2i200112-200212

main90981-13058×2i200212-200501

main90981-22003×2i199901-200106

81131AUNIT, HEADLAMP, RH

main81130-52011i199901-200112

main81130-52110i200112-200212

main81130-52260i200212-200501

81131BHEAD LAMP LENS, RH

main81131-52010i199901-200112

main81131-52260i200112-200212

81132BGASKET, HEADLAMP LENS

main81132-52020i199901-200006

main81132-52021×2i200112-200212

main81172-52020i199901-200006

81139COVER, HEADLAMP SOCKET

main81139-52010×2i200212-200501

81171AUNIT, HEADLAMP, LH

main81170-52011i199901-200112

main81170-52110i200010-200112

main81170-52260i200112-200212

81171BHEAD LAMP LENS, LH

main81171-52010i199901-200112

main81171-52260i200112-200212

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2i199901-200112

main90981-15011×2i200112-200212

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2i200212-200501

main90075-60006×2i199901-200112

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200112-200212

81615DSOCKET, CLEARANCE LAMP

main81615-12590×2i200112-200212

main90075-60004×2i199901-200112

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 4 diagrams in section

HEADLAMP for Toyota VITZ

This section contains 24 genuine Toyota parts for the HEADLAMP system of the Toyota VITZ. Key components include: FRONT BUMPER & BUMPER STAY, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB, DISCHARGE HEADLAMP.
