Toyota VITZ — FRONT STEERING GEAR & LINK

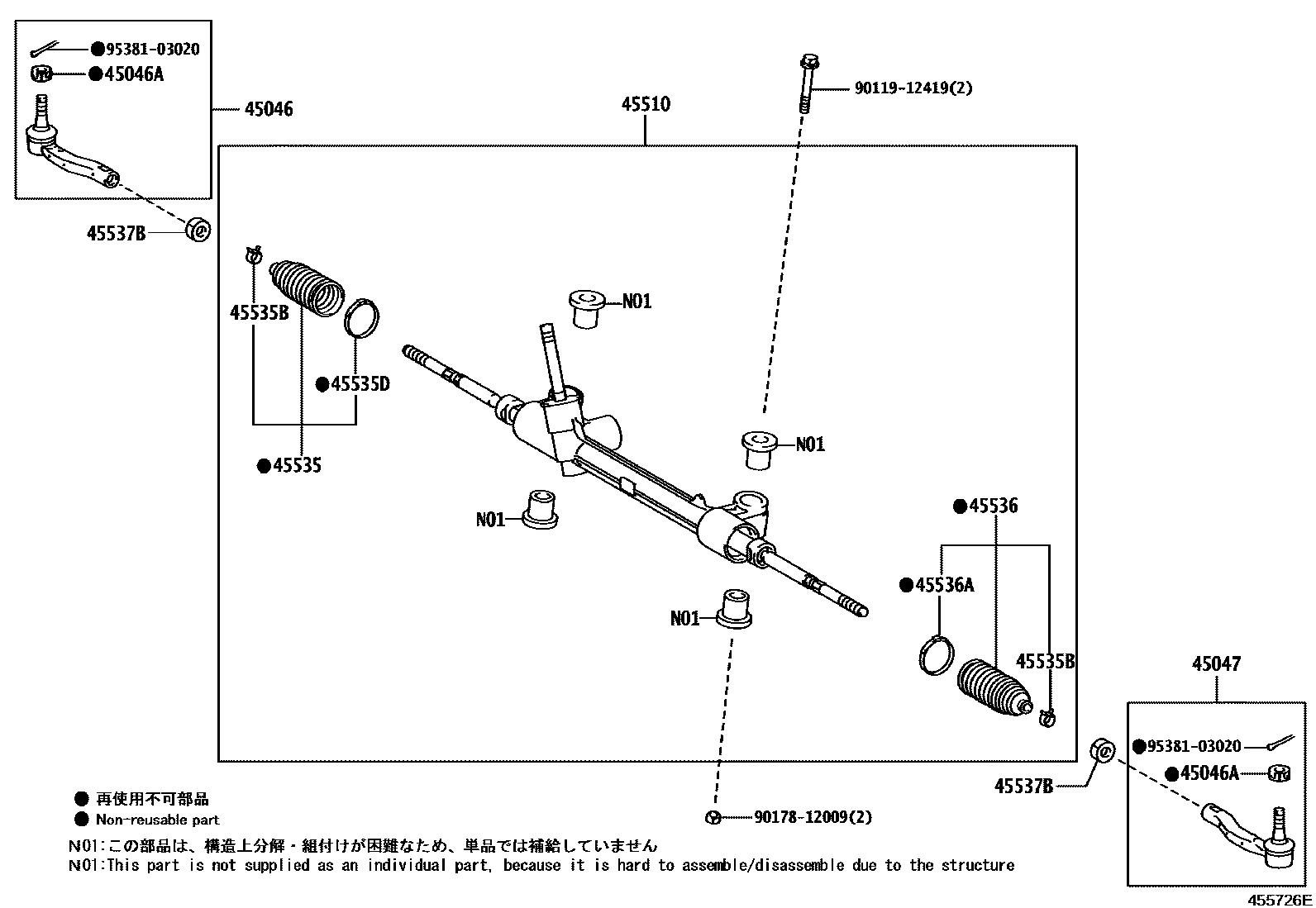

Parts diagram

45046END SUB-ASSY, TIE ROD, RH

main45046-19265i201404-201701

main45046-59115i201709

main45046-59195i201012-201205

main45046-59205i201205-201404

main45046-59255supersedes 45046-59205i201208-201404

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i201404-201701

45047END SUB-ASSY, TIE ROD, LH

main45046-59115i201709

main45047-19115i201701

main45047-59135i201012-201205

main45047-59145i201205-201404

main45047-59165supersedes 45047-59145i201208-201404

45510GEAR ASSY, STEERING

main45510-52240i201205-201211

main45510-52241supersedes 45510-52291i201212-201404

main45510-52291i201404-201701

main45510-52300i201012-201205

main45510-52301supersedes 45510-52241i201701

main45510-52310i201701

main45510-52320i201404-201701

main45510-52340i201012-201212

main45510-52341supersedes 45510-52331i201301-201404

45535BOOT, STEERING RACK, NO.1

main45535-59015i201012-201105

main45535-59035i201105-201404

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i201012-201404

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010i201404-201701

45536BOOT, STEERING RACK, NO.2

main45535-59015i201012-201105

main45535-59035i201105-201404

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010i201404-201701

45537BNUT, RACK END LOCK

main90170-14012×2i201701

main90178-15003×2i201012-201404

main90179-14019×2i201404-201701

9011912419

main90119-12419

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
