Toyota VITZ — FRONT DOOR PANEL & GLASS

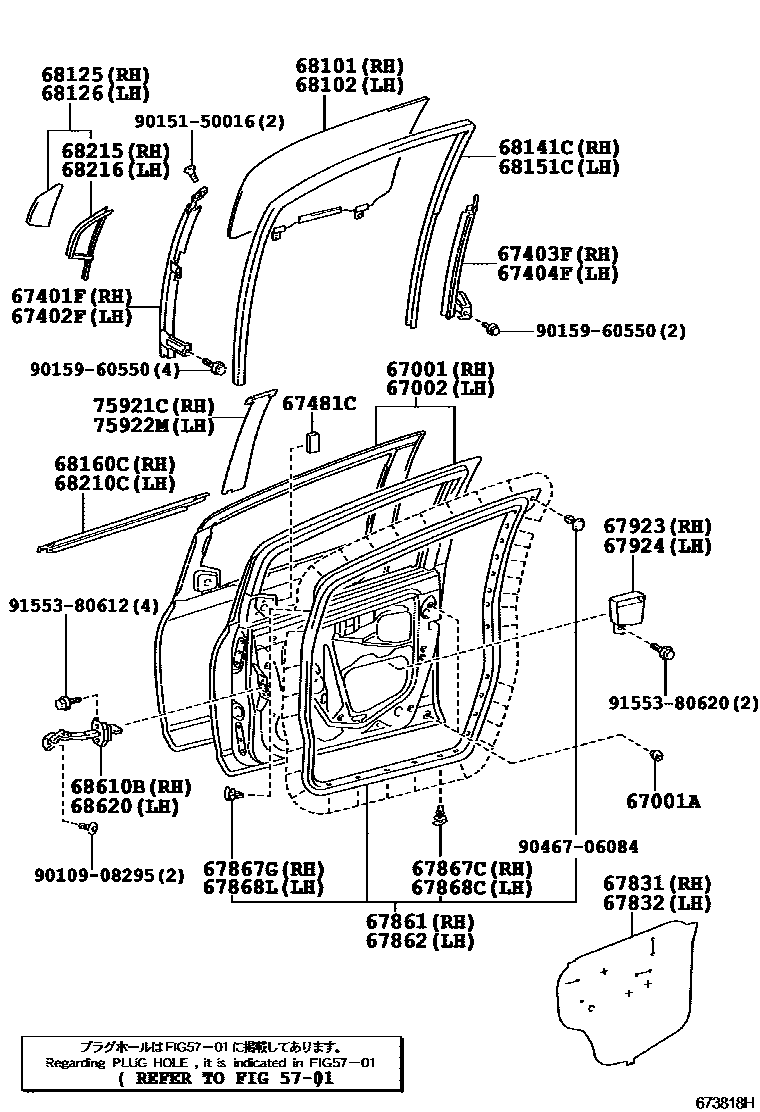

Parts diagram
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-52260i200501-201012
67001ACUSHION, FRONT DOOR PANEL
main90541-09124i200501-200504
main90541-09137i200505-201012
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-52340i200501-201012
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-52090i200501-201012
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-52060i200501-201012
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-52160i200501-200809
main67403-52161i200808-201012
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-52130i200501-200809
main67404-52131i200808-201012
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
main67481-52010i200501-201012
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-52280i200501-201012
main67831-52350i200708-200808
main67831-52350i200501-200708
main67831-52350i200808-201012
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-52280i200501-201012
main67832-52210i200708-200808
main67832-52210i200808-201012
main67832-52210i200501-200708
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-52150i200501-200509
sub67861-52151
main67861-52151i200510-201012
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-52150i200501-200509
sub67862-52151
main67862-52151i200510-201012
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150i200501-201012
67867GRETAINER, DOOR WEATHERSTRIP, RH
main67867-52010i200501-201012
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-12150i200501-201012
67868LRETAINER, DOOR WEATHERSTRIP, LH
main67867-52020i200501-201012
67923CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-52090i200501-200505
sub67923-52091
sub91553-80620
main67923-52091i200505-200508
sub67923-52092
main67923-52092i200508-200510
sub67923-52093
main67923-52093i200511-201012
67924CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-52120i200501-200505
sub67924-52121
sub91553-80620
main67924-52121i200505-200508
sub67924-52122
main67924-52122i200508-200510
sub67924-52123
main67924-52123i200511-201012
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68110-52180i200501-201012
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68120-52180i200501-201012
68125GLASS, FRONT DOOR FIX WINDOW, RH
main68101-52030i200501-200712
sub68101-52031
main68101-52031i200801-201012
68126GLASS, FRONT DOOR FIX WINDOW, LH
main68102-52020i200501-200712
sub68102-52021
main68102-52021i200801-201012
68141CRUN, FRONT DOOR GLASS, RH
main68141-52170i200501-201012
68151CRUN, FRONT DOOR GLASS, LH
main68151-52150i200501-201012
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
main68160-52110i200501-201012
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
main68210-52110i200501-201012
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
main68215-52010i200501-200712
sub68215-52011
main68215-52011i200801-201012
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
main68216-52010i200501-200712
sub68216-52011
main68216-52011i200801-201012
68610BCHECK ASSY, FRONT DOOR, RH
main68610-12161i200501-200507
main68610-52100i200507-201003
main68610-52101i201003-201012
68620CHECK ASSY, FRONT DOOR, LH
main68610-52100i200507-201003
main68610-52101i201003-201012
main68620-12091i200501-200507
75921CTAPE, BLACK OUT, NO.1 RH
main75921-52070i200501-201012
75922MTAPE, BLACK OUT, NO.1 LH
main75922-52070i200501-201012
9010908295
main90109-08295
9015150016
main90151-50016
9015960550
main90159-60550
9046706084
main90467-06084
9155380612
main91553-80612
9155380620
main91553-80620

39 parts on this diagram · 3 diagrams in section
