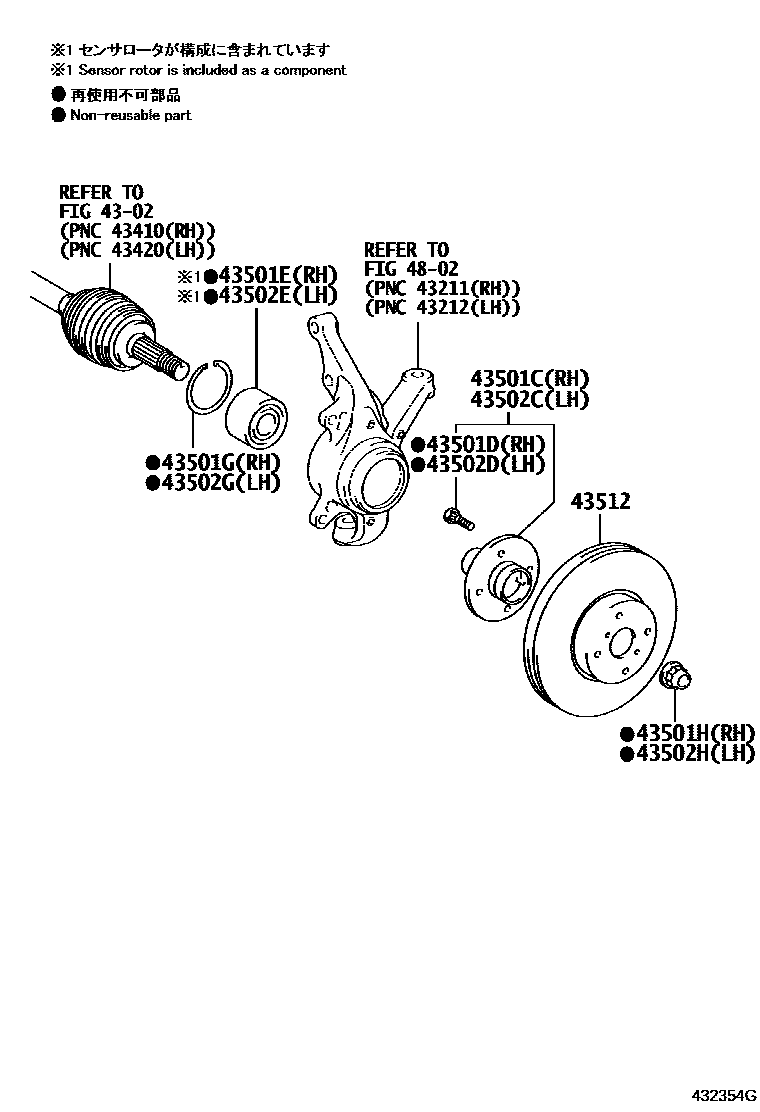

Toyota VITZ — FRONT AXLE HUB

0001 1 0002 1GRMN

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iKSP130,NCP131,NSP13#..CBU201404-201701

main43502-52040iNCP131..5F201309-201402

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iKSP130,NCP131,NSP13#..CBU201012-201404

main90369-40009iKSP130,NCP131,NSP13#..CBU201610-201701

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKSP130,NCP131,NSP13#..CBU201012-201404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP130,NCP131,NSP13#..CBU201012-201404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iKSP130,NCP131,NSP13#..CBU201012-201404

main43502-52040iNCP131..5F201309-201402

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iKSP130,NCP131,NSP13#..CBU201404-201701

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iKSP130,NCP131,NSP13#..CBU201012-201404

main90369-40009iKSP130,NCP131,NSP13#..CBU201610-201701

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKSP130,NCP131,NSP13#..CBU201404-201701

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP130,NCP131,NSP13#..CBU201012-201404

43512DISC, FRONT

main43512-52120×2iNCP131,NSP135..(F,JEWL,U)..CBU201012-201404

main43512-52130×2supersedes 43512-52130iNCP131..RS201012-201404

main43512-74010×2iKSP130,NSP130..CBU201012-201205

main43512-12710×2iNCP131..5F201309-201402

4802

13 parts on this diagram · 2 diagrams in section
