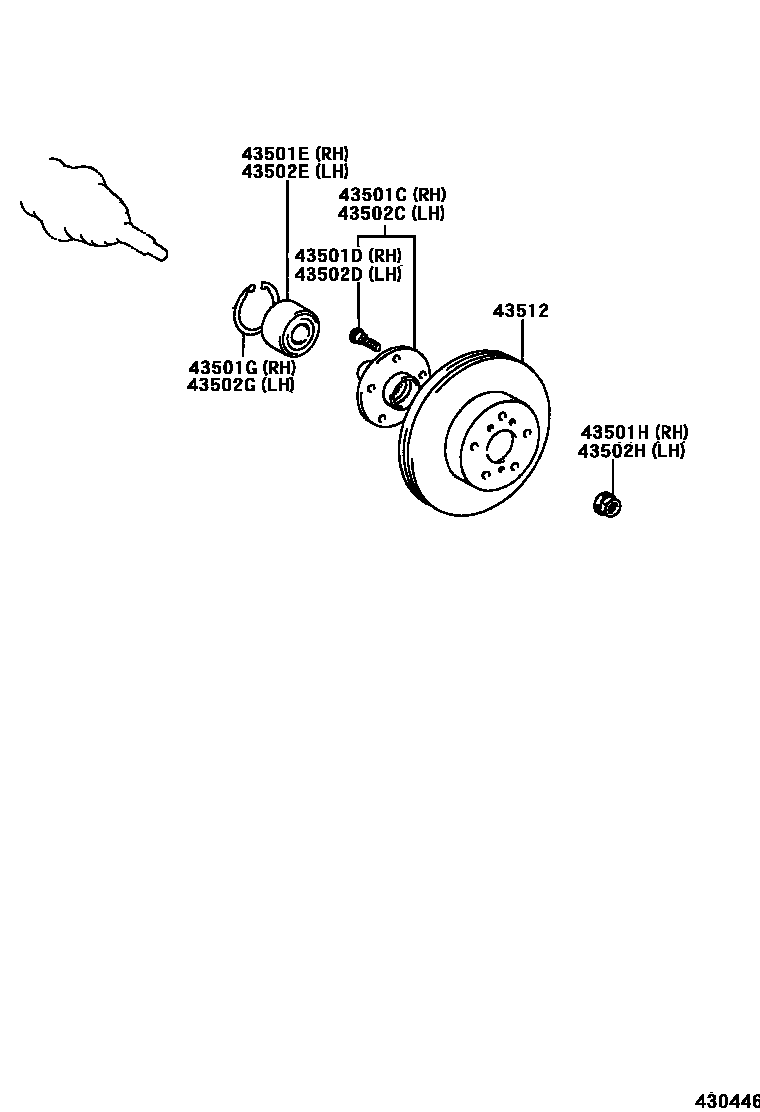

Toyota VITZ — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010iNCP1#,SCP10199901-200112

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iNCP1#,SCP10199901-200112

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021iNCP1#,SCP10199901-200112

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iNCP1#,SCP10199901-200112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP1#,SCP10199901-200112

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010iNCP1#,SCP10199901-200112

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iNCP1#,SCP10199901-200112

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021iNCP1#,SCP10200112-200212

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iNCP1#,SCP10199901-200112

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP1#,SCP10200112-200212

43512DISC, FRONT

main43512-52010×2iNCP10,15,SCP10..B,CLA,F,U199901-200112

main43512-52040×2iNCP10,13..RS200010-200112

sub43512-52090

11 parts on this diagram · 1 diagram in section
