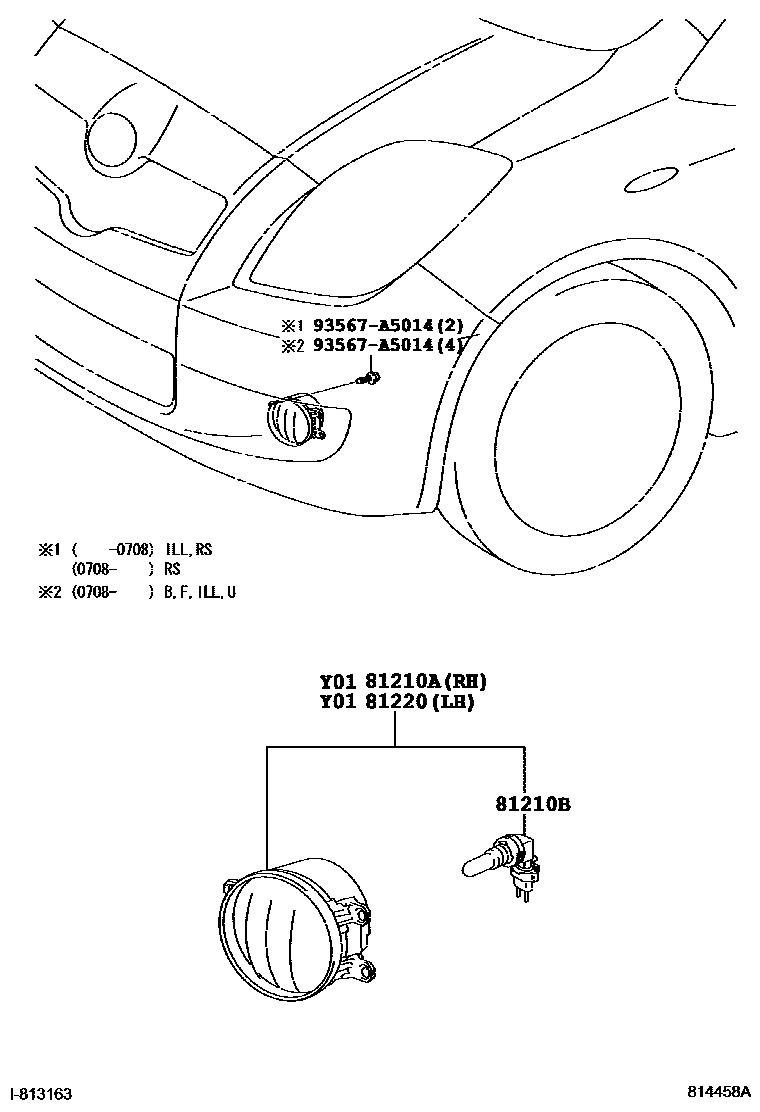

Toyota VITZ — FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-0D040i200501-200611

main81210-0D041i200612-200708

main81210-0D042i201004-201012

81210BBULB, FOG LAMP

main90981-13075×2i200708-200809

main90981-13081×2i200708-200809

main90981-WD011×2i200501-200511

main90981-WD012×2i200501-200511

81220LAMP ASSY, FOG, LH

main81220-0D040i200501-200611

main81220-0D041i200612-200708

main81220-0D042i201004-201012

93567A5014

main93567-A5014

4 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota VITZ

This section contains 4 genuine Toyota parts for the FOG LAMP system of the Toyota VITZ. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
