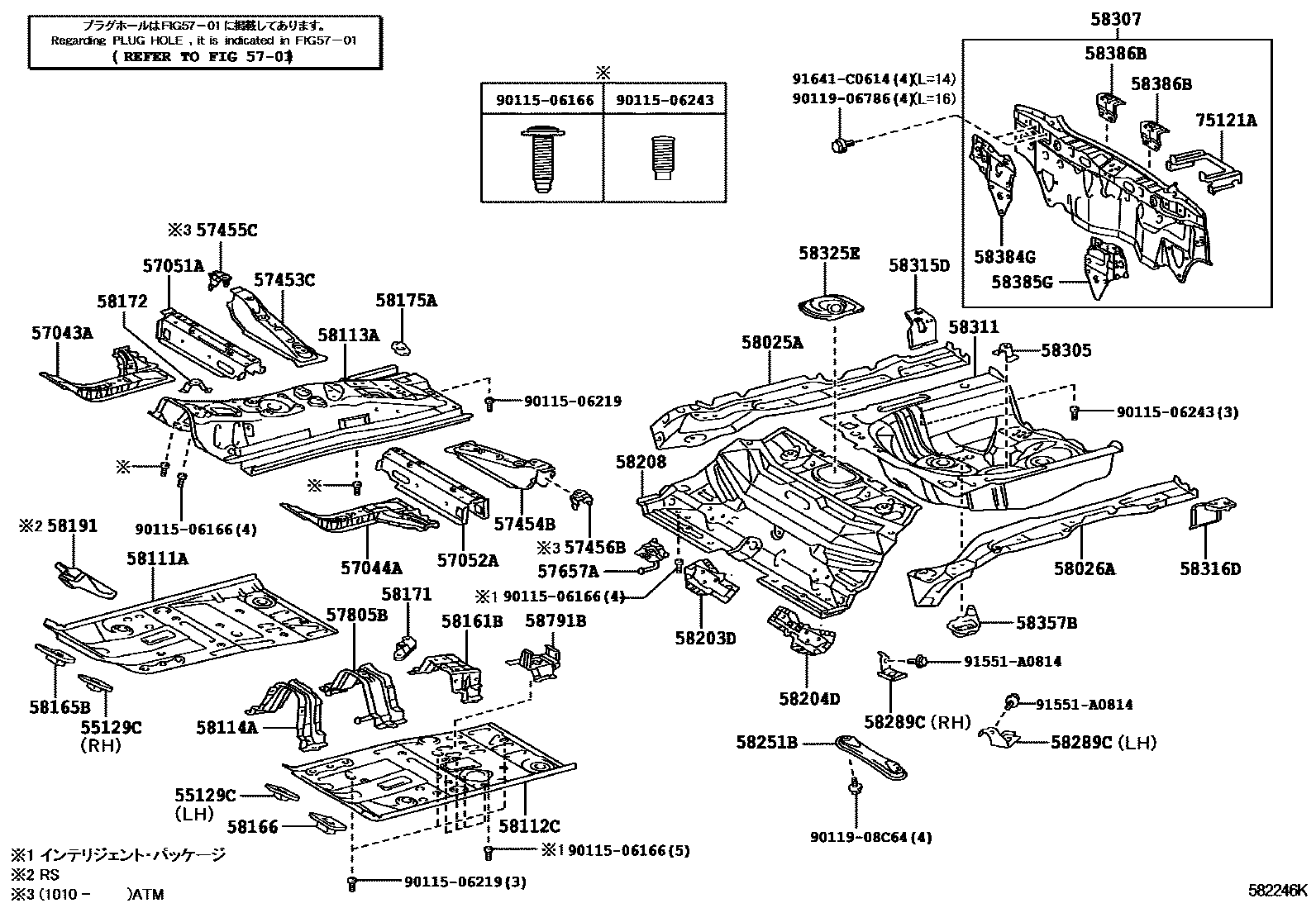

Toyota VITZ — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55129CCOVER, DASH PANEL HOLE

main55129-52050iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

main55129-52051iKSP90,NCP9#,SCP90200912-201012

main55139-52020iKSP90,NCP9#,SCP90200501-200708

main55139-52021iKSP90,NCP9#,SCP90200912-201012

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52020iKSP90,NCP9#,SCP90200501-200708

main57043-52021iKSP90,NCP9#,SCP90201009-201012

sub57043-52022

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52040iKSP90,NCP9#,SCP90200501-200708

main57044-52041iKSP90,NCP9#,SCP90201009-201012

sub57044-52042

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010iKSP90,NCP9#,SCP90200501-200708

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010iKSP90,NCP9#,SCP90200501-200708

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020iKSP90,NCP9#,SCP90200808-201010

main57453-52021iKSP90,NCP9#,SCP90201010-201012

sub57453-52022

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010iKSP90,NCP9#,SCP90200501-200708

main57454-52011iKSP90,NCP9#,SCP90201010-201012

sub57454-52012

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040iKSP90,NCP9#,SCP90201010-201012

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040iKSP90,NCP9#,SCP90201010-201012

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010iKSP90,NCP91,SCP90200501-200708

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52130iKSP90,NCP91,SCP90200501-200708

main57805-52131iKSP90,NCP91,SCP90201010-201012

main57805-52140iNCP95200808-201009

main57805-52141iNCP95201010-201012

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52010iKSP90,NCP9#,SCP90200501-200708

main58025-52060iKSP90,NCP9#,SCP90201011-201012

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52010iKSP90,NCP9#,SCP90200501-200708

main58026-52090iKSP90,NCP9#,SCP90201011-201012

58111APAN, FRONT FLOOR, RH

main58111-52160iKSP90,NCP9#,SCP90200501-200708

sub58111-52270

58112CPAN, FRONT FLOOR, LH

main58112-52901iNCP91,SCP90..RS200708-200809

sub58112-52918

58113APANEL, FRONT FLOOR, CENTER

main58113-52901iNCP91,SCP90..RS200708-200809

sub58113-52917

main58113-52903iNCP95200501-200607

main58113-52911iNCP95200808-201012

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070iKSP90,NCP91,SCP90200501-200708

main58114-52071iKSP90,NCP91,SCP90201010-201012

main58114-52080iNCP95200808-201009

main58114-52081iNCP95201010-201012

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iKSP90,NCP91,SCP90201010-201012

main58161-52090iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

58165BCOVER, FRONT FLOOR, RH

main58165-52010iNCP91,SCP90..RS200708-200809

main58165-52011iKSP90,NCP9#,SCP90200912-201012

58166COVER, FRONT FLOOR, LH

main58166-52010iKSP90,NCP9#,SCP90200501-200708

main58166-52011iKSP90,NCP9#,SCP90200912-201012

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iKSP90,NCP91,SCP90200501-200708

main58171-52120iNCP95200808-201012

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iNCP91,SCP90..RS200708-200809

main58172-52030iNCP95200708-200808

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iKSP90,NCP9#,SCP90200501-200708

58191FOOTREST, FRONT FLOOR

main58191-52070iNCP91..RS200501-200708

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060iKSP90,NCP91,SCP90200501-200708

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060iKSP90,NCP91,SCP90200501-200708

main58204-52061iKSP90,NCP91,SCP90201008-201012

58208PAN, CENTER FLOOR

main58211-52170iNCP95200501-200708

main58211-52180iNCP91,SCP90..ILL,U200808-201012

main58211-52190iKSP90;SCP90..F200708-200808

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020×2iKSP90,NCP9#,SCP90200501-200708

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52030iNCP91,SCP90..RS200708-200809

main58289-52040iNCP95200808-201012

main58289-52080iKSP90,NCP91,SCP90201010-201012

main58299-52060iNCP91,SCP90..RS200708-200809

main58299-52070iNCP95200708-200808

main58299-52100iKSP90,NCP91,SCP90201010-201012

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iKSP90,NCP91,SCP90200501-200504

main58351-52070iNCP95..ILL;KSP90,NCP91,SCP90200504-200708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52400iKSP90,NCP91,SCP90..B,F,ILL,U,X200501-200708

main58307-52410iNCP91,SCP90..RS200809-201012

main58307-52420iNCP95200501-200708

main58307-52530iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

main58307-52540iNCP95200808-201012

58311PAN, REAR FLOOR

main58311-52110iKSP90,NCP91,SCP90200501-200708

main58311-52190iNCP95200501-200505

main58311-52191iNCP95200808-201012

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52160iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52180iKSP90,NCP9#,SCP90200808-201012

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iNCP91,SCP90..RS200708-200809

main58325-52060iNCP95200708-200808

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52030iNCP91,SCP90..RS200708-200809

sub58357-52031

main58357-52040iNCP95200512-200708

sub58357-52041

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52080iKSP90,NCP9#,SCP90200501-200708

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52060iKSP90,NCP9#,SCP90200808-201012

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040×2iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

58791BCARRIER, JACK

main58791-52060iKSP90,NCP9#,SCP90200808-201012

75121ABRACKET, REAR LICENSE PLATE

main75121-52070iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

main75121-52080iNCP91..RS200501-200708

main75121-52100iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011906786

main90119-06786

9011908C64

main90119-08C64

91551A0814

main91551-A0814

91641C0614

main91641-C0614

49 parts on this diagram · 2 diagrams in section
