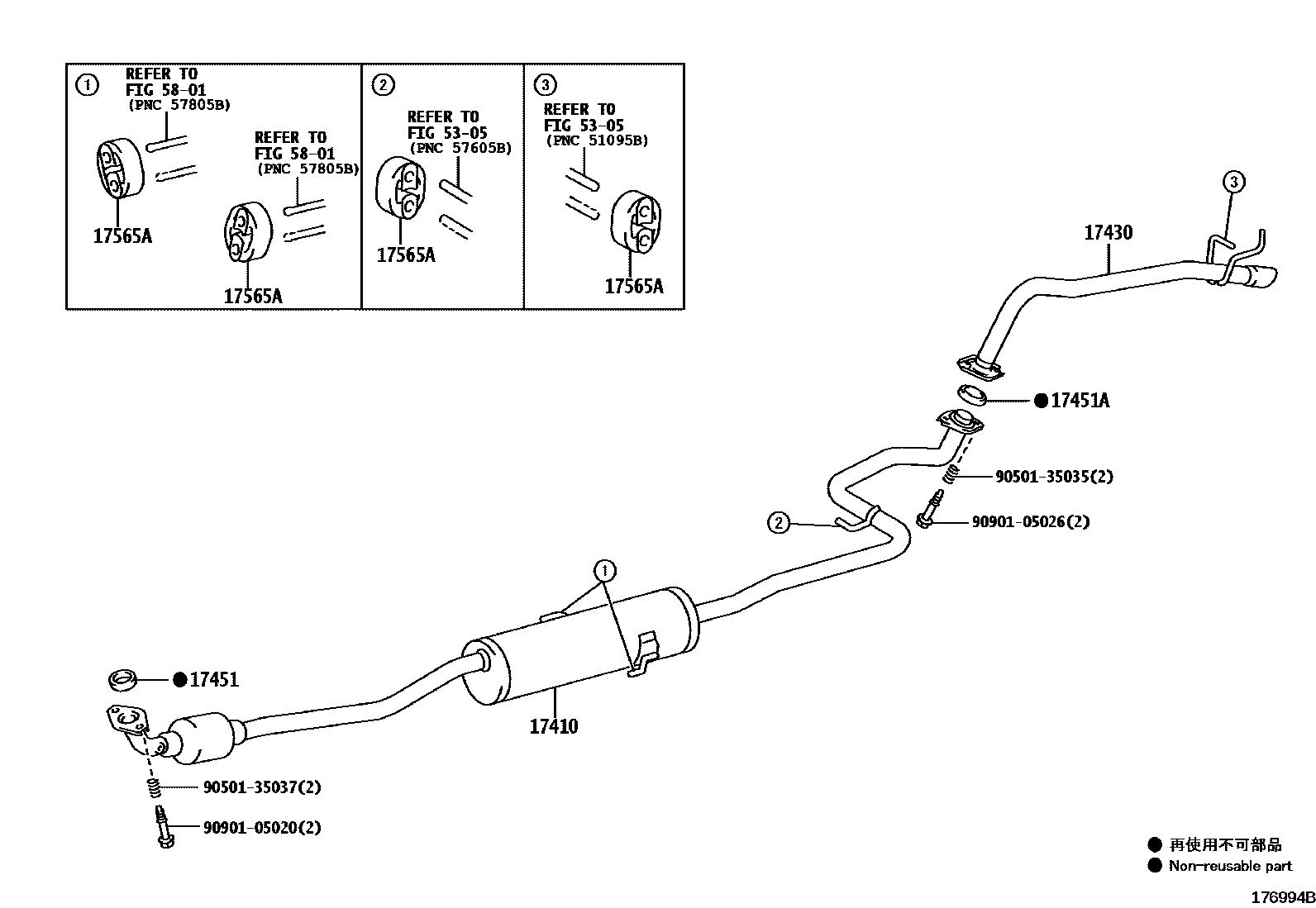

Toyota VITZ — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
12 parts on this diagram · 7 diagrams in section
EXHAUST PIPE for Toyota VITZ
This section contains 14 genuine Toyota parts for the EXHAUST PIPE system of the Toyota VITZ. Key components include: BAFFLE SUB ASSY, EXHAUST TAILPIPE, PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, GASKET, EXHAUST PIPE, NO.2.
