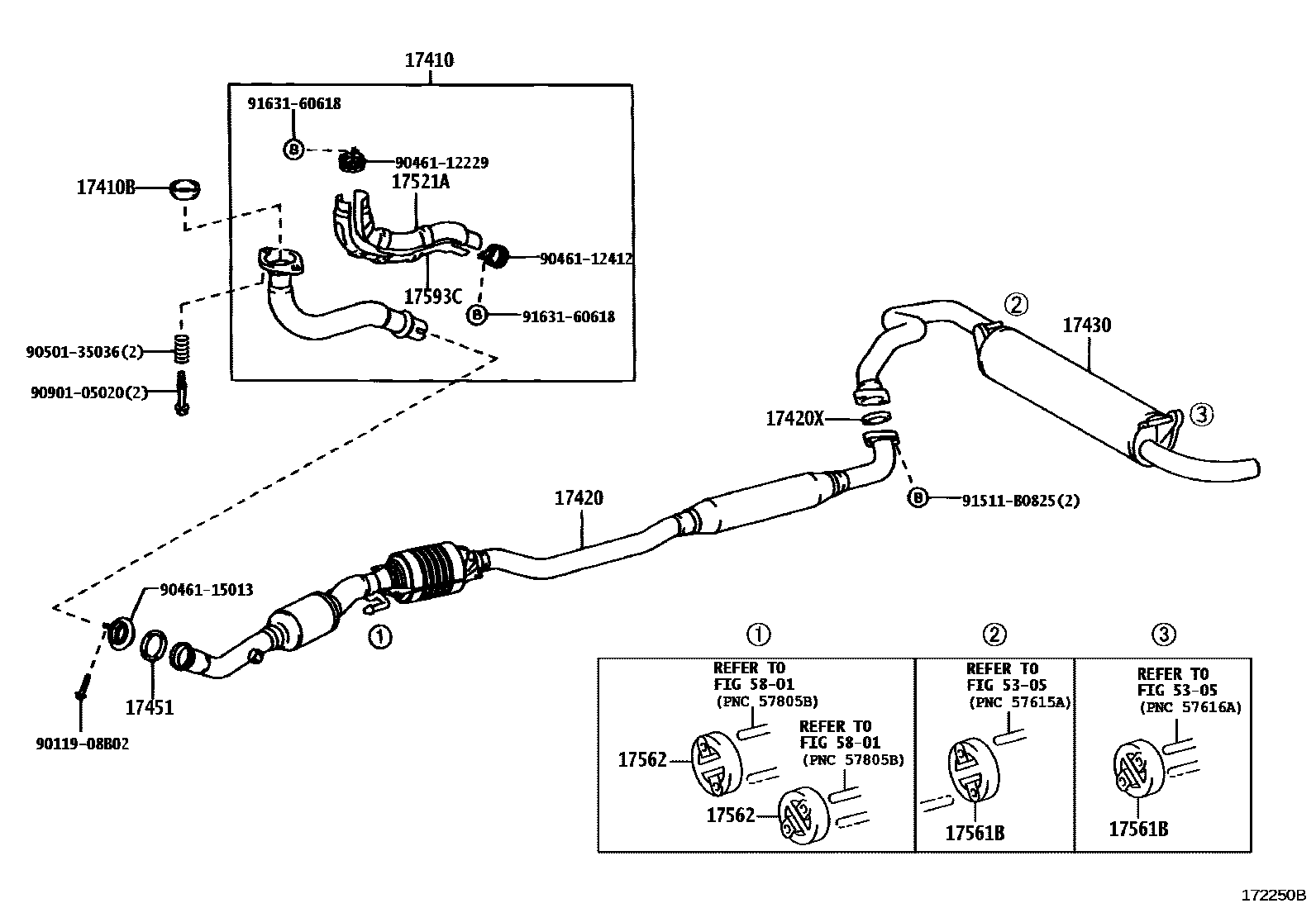

Toyota VITZ — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9011908B02
main90119-08B02
9046112229
main90461-12229
9046112412
main90461-12412
9046115013
main90461-15013
9050135036
main90501-35036
9090105020
main90901-05020
91511B0825
main91511-B0825
9163160618
main91631-60618
20 parts on this diagram · 5 diagrams in section
EXHAUST PIPE for Toyota VITZ
This section contains 24 genuine Toyota parts for the EXHAUST PIPE system of the Toyota VITZ. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL.
