Toyota VITZ — EXHAUST GAS RECIRCULATION SYSTEM

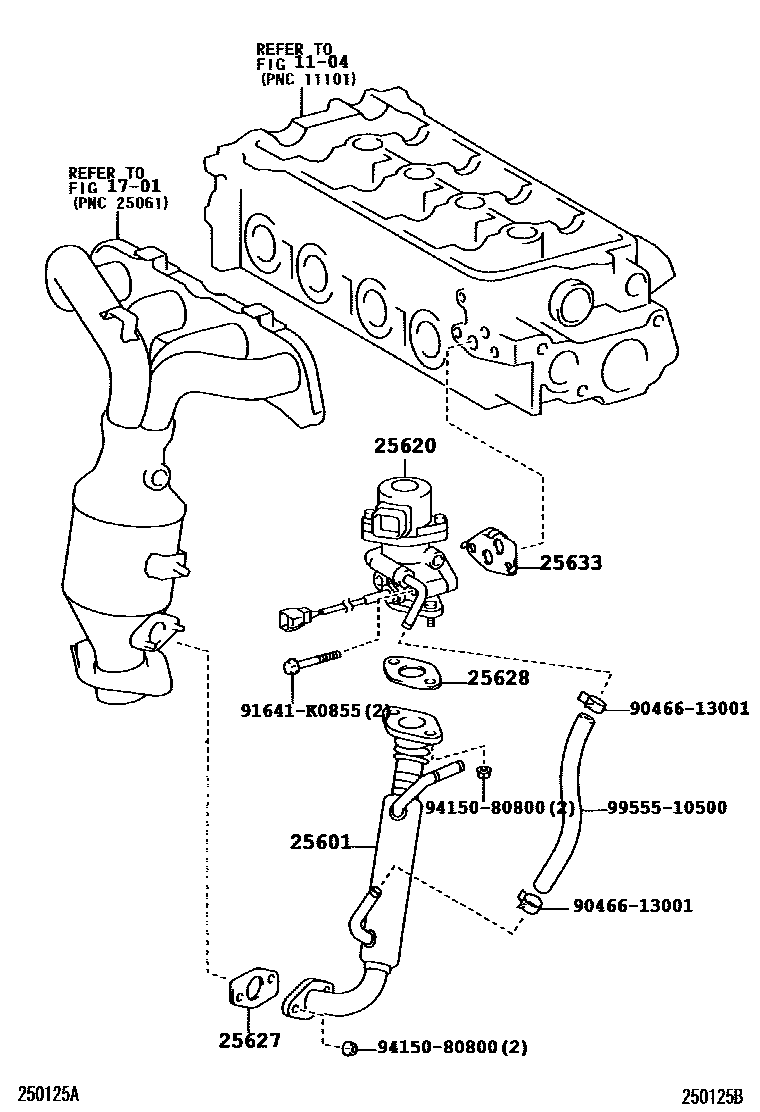

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-23010i200212

25620VALVE ASSY, EGR

main25620-23010i200212

25627GASKET, EGR VALVE

main25627-74080i200212

25628GASKET, EGR INLET

main25628-28020i200212

25633GASKET, EGR VALVE

main25633-23010i200212

9046613001

main90466-13001

91641K0855

main91641-K0855

9415080800

main94150-80800

9955510500

main99555-10500

11 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota VITZ

This section contains 11 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota VITZ. Key components include: CYLINDER HEAD, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.

Toyota VITZ EXHAUST GAS RECIRCULATION SYSTEM — Parts Diagram | EPC Data
