Toyota VITZ — ECO-RUN SYSTEM

0001 1 0002 1

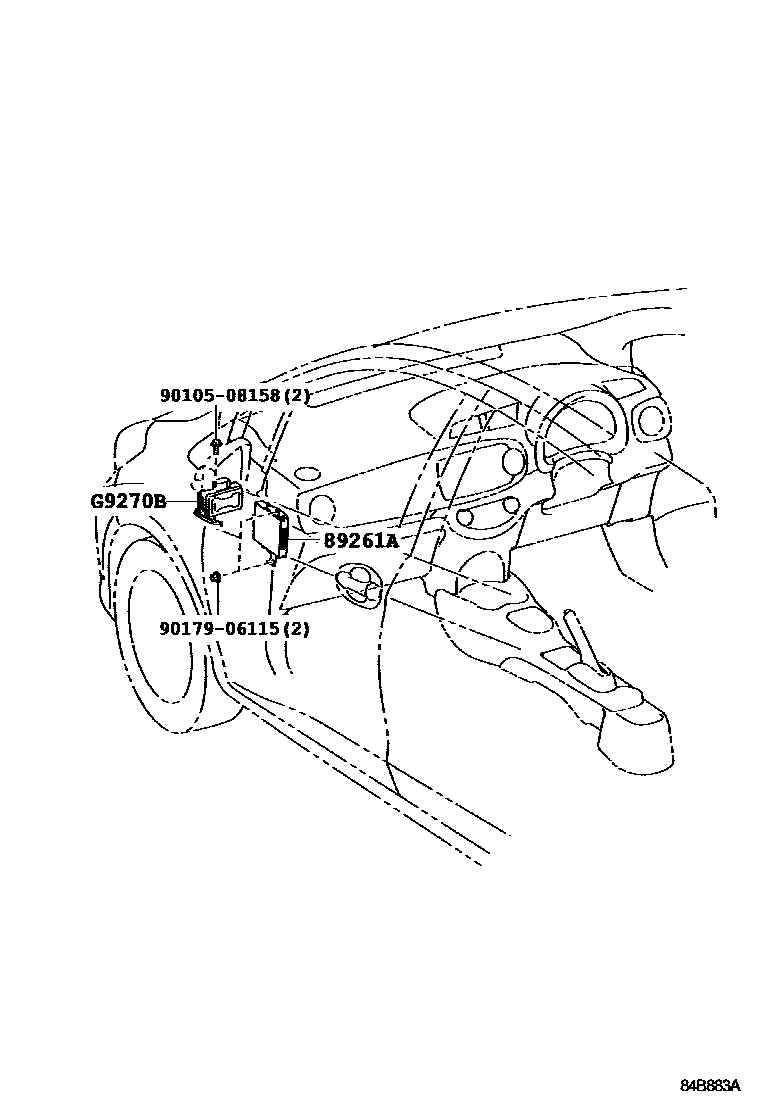

89261ACOMPUTER, ENGINE STOP AND START

main89260-52060iNSP130..CBU201404-201409

main89260-52061iNSP130..CBU201410-201507

main89260-52100iNSP130..CBU201507-201701

main89260-52050iNCP131..CVT201404-201409

main89260-52051iNCP131..U201410-201701

main89260-52070iKSP130..CBU201404-201409

main89260-52071iKSP130..CBU201410-201507

main89260-52110iKSP130..CBU201701

main89690-52080iNSP130..F..CBU201012-201107

sub89690-52083

main89690-52081iNSP130..CBU201107-201109

main89690-52082iNSP130..CBU201110-201404

sub89690-52083

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C052030iNSP130..F..CBU201012-201310

mainG92C052031iNSP130..CBU201311-201404

subG92C0-52050

sub90159-50385

subF1334-52020

9010508158

main90105-08158

9017906115

main90179-06115

4 parts on this diagram · 2 diagrams in section
