Toyota VITZ — ECO-RUN SYSTEM

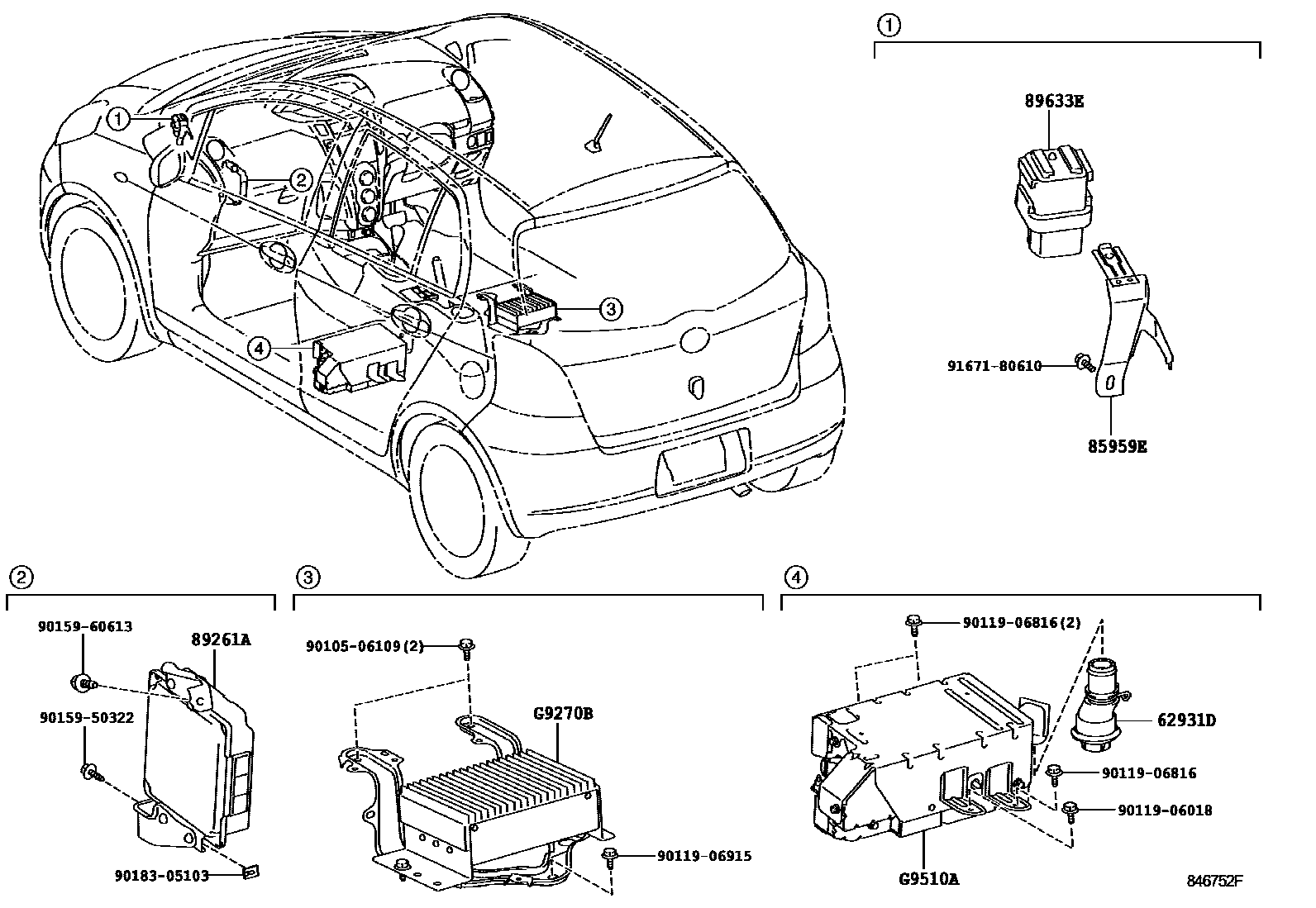

Parts diagram

62931DDUCT, QUARTER VENT

main62931-52020i200504-200708

85959EHOLDER, RELAY

main85959-52030i200504-200708

89261ACOMPUTER, ENGINE STOP AND START

main89260-52010i200504-200708

main89260-52011i200810-201007

89633ERELAY, TRACTION CONTROL

main89633-50060i200504-200708

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG927052020i200504-200708

mainG92C052020i200804-200808

G9510ABATTERY ASSY, HV SUPPLY

mainG951052020i200504-200708

9010506109

main90105-06109

9011906018

main90119-06018

9011906816

main90119-06816

9011906915

main90119-06915

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9167180610

main91671-80610

14 parts on this diagram · 1 diagram in section
