Toyota VITZ — ECO-RUN SYSTEM

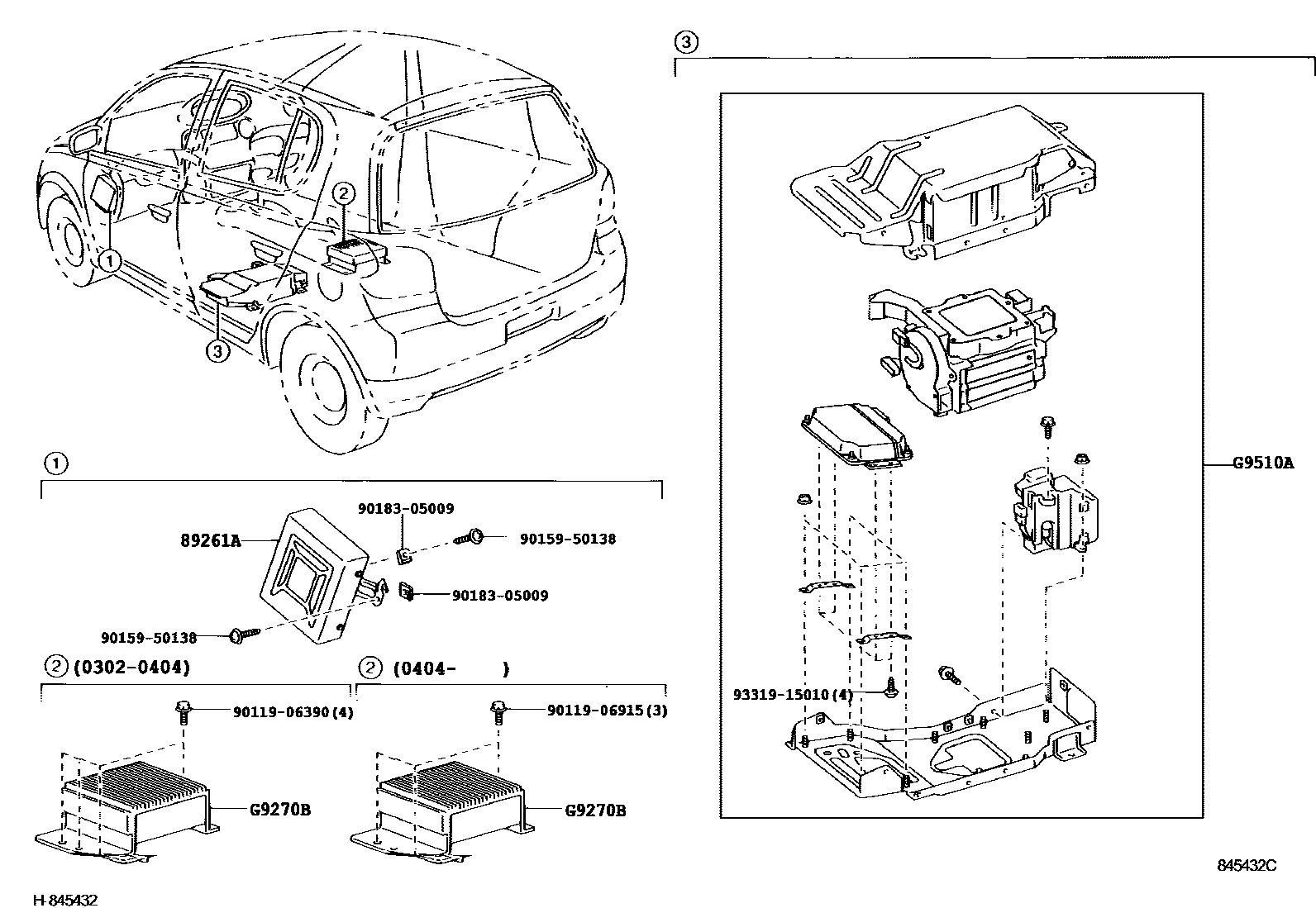

Parts diagram

89261ACOMPUTER, ENGINE STOP AND START

main89261-52030i200302-200304

main89261-52031i200304-200308

main89261-52032i200308

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG927052010i200302

G9510ABATTERY ASSY, HV SUPPLY

mainG951052010i200302

9011906390

main90119-06390

9011906915

main90119-06915

9015950138

main90159-50138

9018305009

main90183-05009

9331915010

main93319-15010

8 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota VITZ

This section contains 8 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota VITZ. Key components include: COMPUTER, ENGINE STOP AND START, CONVERTER ASSY, ECO RUN VEHICLE, BATTERY ASSY, HV SUPPLY.
